Masimo 20 Pin Data Transfer Download Cable

The primary function of this accessory is to facilitate the downloading of trending patient data from your Masimo pulse oximeter to a personal computer for systematic analysis and archiving. It is an essential interface component for data retrieval workflows.

This cable (MPN 2063) is compatible with the following Masimo pulse oximeters:

• Rad-5
• Rad-57
• Pronto

Yes, the Masimo 20 Pin Data Transfer Download Cable is a factory-new product, ensuring optimal performance and reliability.

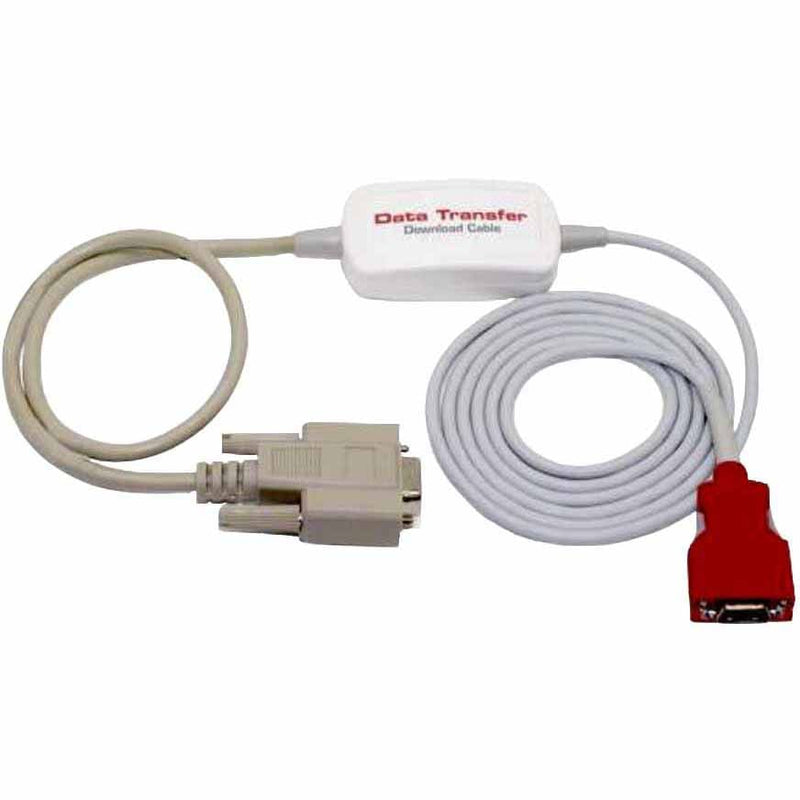

The Masimo 20 Pin Data Transfer Download Cable (MPN 2063) uses two distinct connectors to enable the extraction of trending patient data from the pulse oximeter to a personal computer:

• Masimo Device Connector (20-Pin): This is the specialized proprietary connector that attaches directly to compatible Masimo pulse oximeters (Rad-5, Rad-57, and Pronto). It is easily identified by its prominent red housing.
• PC Interface Connector (DB-Style/Serial): This standard connector interfaces with a computer’s serial port, facilitating the systematic downloading and analysis of the monitoring history.

Additionally, the cable features a central white processing unit labeled “Data Transfer Download Cable” that manages the data transfer process.

This cable is specifically designed to work with Rad-5, Rad-57, and Pronto pulse oximeters.

This cable enables the downloading of trending data from compatible Masimo pulse oximeters to a personal computer.

This cable is equipped with two distinct connectors to facilitate data download from your Masimo device to a PC:

• Masimo Device End: A specialized 20-pin connector featuring a highly visible red housing. This connects directly to compatible pulse oximeters (Rad-5, Rad-57, and Pronto).
• PC Connection End: A standard male DB-9 (serial) connector for connecting to your personal computer.

Additionally, the cable includes a central white housing unit labeled “Data Transfer Download Cable,” which is essential for signal processing.

The main unit, which is the Masimo 20 Pin Data Transfer Download Cable, is included. There are no other components or accessories.

Yes, this data transfer cable is precision engineered, contributing to its reliable performance for medical data transfer.

The Masimo 20 Pin Data Transfer Download Cable features a light gray or white PVC/plastic material jacket, designed for general durability in medical environments. It is supplied in Factory New condition and includes a 6-month warranty against manufacturer defects.

The cable’s manufacturer part number (MPN/MANU-MPN) is 2063. This ensures easy identification and cross-referencing for this genuine Masimo accessory.
