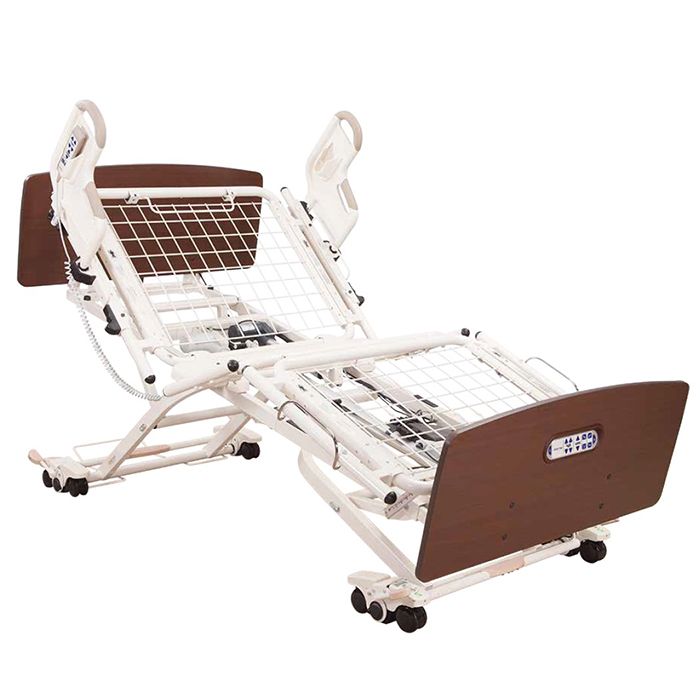

The Joerns UltraCare XT Bed is a unique long-term care bed that comes standard with a soft tone frame color, QuickCare, AdvancedCare positioning and a grid deck mattress. UltraLock is available as an additional configuration, which provides safety locking mechanisms for the head or foot ends of the bed.

Important Notes:

  • Head board, foot board and assist handles (side rails) which are shown in the product image are sold separate. Joerns highly recommends optional accessories be purchased at the same time as the bed (see Accessories).
  • AdvancedCare staff control requires purchase of bed panels (sold separately).


  • 90 Days - Normal use parts (including batteries).
  • 5 Years - Mechanical and electrical components.
  • 15 Years - Steel structural components.
  • Lifetime - Welds.

The Joerns UltraCare XT Bed is very versatile, allowing caregivers more comfort options for patients. The bed comes with QuickCare feature, which gives the bed flexibility to raise and lower the bed in under 30 seconds. This way, caregivers can assist patients in getting up or sitting down on the bed. The AdvancedCare feature is also included with the bed, and is a gravity-assist chair position for safer, more comfortable positioning.

The UltraLock feature is available as an add-on, which keeps the bed safe during movement, and can be applied to either the foot end of the head end. There are also ergonomic controls, such as raised buttons, backlighting, and a staff control.


Joerns UltraCare XT Bed Features

  • Includes AdvancedCare as added mobility feature.
  • QuickCare raises and lowers the bed in 30 seconds.
  • Can be customized for short-term, long-term, or bariatric care.
  • Ergonomic controls come standard - raised buttons, staff controls, and backlighting.


Joerns UltraCare XT Bed Specifications

  • Dimensions - 76": 82.0" (L) x 35.0" (W) x 7.0" (H).
  • Dimensions - 80": 85.5" (L) x 35.0" (W) x 7.0" (H).
  • Underbed Clearance: 23.7" (603 mm).
  • Base Weight: 220 lb (99.8 kg).
  • Equipped with single UltraLock: 247 lb (112 kg).
  • Equipped with dual UltraLocks: 274 lb (112 kg).
  • Maximum Back Angle: 65° to horizontal
  • Maximum Knee Angle: 35° to horizontal
  • Maximum Knee To Leg Angle: 45°
  • Minimum Height Mattress Support Surface
    • Base Bed: 7".
    • Equipped with UltraLock(s): 7.25".
  • Maximum Height Mattress Support Surface
    • Base Bed: 30".
    • Equipped with UltraLock(s): 30.6".
  • Safe Working Load: 500 lb (227 kg).
  • Maximum Patient Weight: 450 lb (204 kg).

Electrical Specifications

  • Mains Voltage: 110 - 240 VAC.
  • Frequency: 60 Hz.
  • Input Current: 4.0 Amps.
  • Control Box Output Voltage: 24V DC.
  • Electrical Protection: Class I or II, Type B.
  • Duty Cycle: 10% (2 min on / 18 min off).
  • Circuit Protection: Auto reset current sensor.


Joerns UltraCare XT Bed Configurations

  • #UCXTBED: Standard model.
  • #UCXTBED-UF: With UltraLock at Foot End.
  • #UCXTBED-UHF: With UltraLock at Head and Foot.


Joerns UltraCare XT Bed Accessories

These are items commonly purchased with this bed. Please note these are NOT included with the bed and must be purchased separately.

Highly Recommended

The following options are recommended by Joerns to be purchased at the same time as the UltraCare XT Bed.

  • Joerns Bed Panels: Available in Classical, Traditional, and Avalon styles with five finishes.
    • Head Board.
    • Foot Board.
    • Head and Foot Board (required for AdvancedCare staff control feature).
  • UltraWide Extension Kit: Extends the width of the bed to accommodate up to 500 lb in weight capacity. Available in 39" or 42" extension kits.

Additional Accessories

These items are commonly purchased with the Joerns UltraCare XT, but are not required for the function of the bed.

  • SafeLight.
  • 4" and 8" Length Extender.
  • Foam Bolster for Length Extension.
  • Bed Panel Bracket.
  • Deluxe Assist Handle.
  • Pendant Holder.
  • Mobility Status Indicator.
