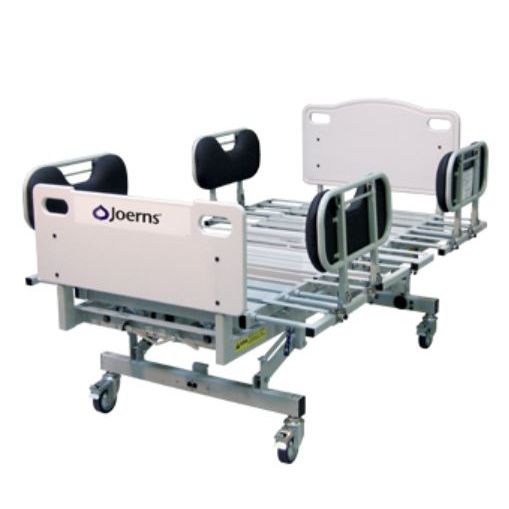

Joerns RC 750 Bariatric Bed

The Joerns RC 750 Bariatric Bed comes with side rails and a three-function hand pendant. This bed is an ideal bed to support obese patients weighing up to 750 lb.

Warranties:

• 5 Years - Steel Structural Components.
• 1 Year - Defects in Materials and Workmanship.
• 90 Days - Small Parts (wear from normal use).
• Lifetime - Welds.

The Joerns RC 750 Bariatric Bed is specially designed to support patients who outweigh conventional hospital beds, and can provide support in three areas to accommodate comforts. The steel frame houses four electric drive modules that can raise or lower the head or foot area of the bed. In the case of power failure, there's a hand crank to manually adjust the bed. This bed can be expanded up to 54" wide, as well as be reduced to pass through a 40" door frame.

Side rails are standard on the RC 750, and users have a choice to add foot rails or a scale to the bed (see Configurations tab).

Joerns RC 750 Bariatric Bed Features

• Supports up to 750 lb.
• Can extend the width from 39.5" to 56.5".
• Three-function hand pendant and side rails are included.
• Foot rail option is available.

Joerns RC 750 Bariatric Bed Specifications

• Safe Working Load: 750 lb.
• Bed Weight with Side Rails, End Boards: 610 lb.
• Overall Width: 39.5" - 56.5"
• Overall Length: 89".
• Mattress Support Platform:
  • Width: Adjustable 36", 40", 42", 48", and 54".
  • Length: 80".
• Mattress Support Platform Height:
  • Lowest position (from floor): 16.5".
  • Highest position: 29".
• Power Requirements: 115 VAC 60Hz 10.5 AMP.
• Ambient Temperature: +10°C to +30°C.
• Relative Humidity: 30% to 95% Non-Condensing.
• Atmospheric Pressure: 700 hPa to 1060 hPa.
• Motor Duty Cycle for Intermittent Operation: 1 minute ON / 1 minute OFF.
• Head Fowler: Adjustable up to 70 degrees.
• Foot/Knee Gatch: Adjustable up to 40 degrees.
• Side Rails: Head end are standard, 3 position swing type.
• Casters:
  • Diameter: 5"
  • Width: 1.25"
  • Tread Guard: Non-marring.
  • (3) total lock and (1) steer lock.

Joerns RC 750 Bariatric Bed Configurations

• #JRN-RC750BED: Standard Model (No Accessories).
• #JRN-RC750BED-FR: With Foot Rails.
• #JRN-RC750BED-SC: With Scale.
• #JRN-RC750BED-FR-SC: With Foot Rails and Scale.

Joerns RC 750 Bariatric Bed Literature

Joerns RC 750 Bariatric Bed User Service Manual

Joerns RC 750 Bariatric Bed Spec Sheet
