Joerns Hoyer Journey Patient Stand Aid

Joerns Hoyer Journey Patient Stand Aid

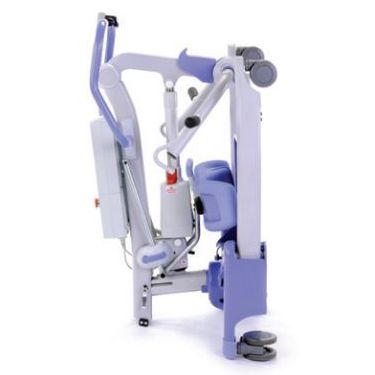

Joerns Hoyer Journey Patient Stand Aid - Folded

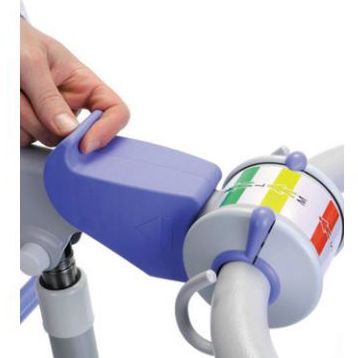

Joerns Hoyer Journey Patient Stand Aid - Cow Horn

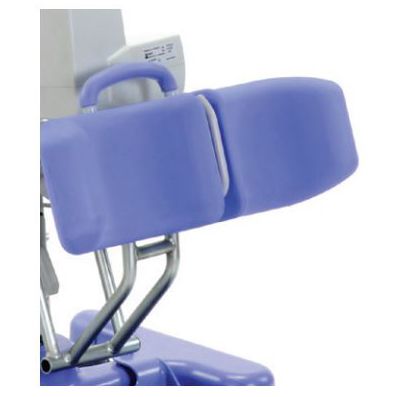

Joerns Hoyer Journey Patient Stand Aid - Kneepad
Joerns Hoyer Journey Patient Stand Aid - Smart Monitor
Joerns Hoyer Journey Patient Stand Aid
Joerns Hoyer Journey Patient Stand Aid - Folded
Joerns Hoyer Journey Patient Stand Aid - Cow Horn
Joerns Hoyer Journey Patient Stand Aid - Kneepad
Joerns Hoyer Journey Patient Stand Aid - Smart Monitor
Key Features
  • SKU: JRN-HOY-JOURNEY-S
  • Condition: Factory New
  • Warranty: 5 Years
  • Weight: 88.6 lb

  • Learn more:

Contact The Manufacturer
  • MFR: Joerns Ships from Manufacturer
  • MPN: HOY-JOURNEY-S
  • Phone: (800) 826-0270
$5,897.00 $3,925.00

+Free Shipping*

Est. Delivery:
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Shop with Confidence

Free Shipping

+

Free Returns

Payment Options

+

Price Match Guarantee

Sales Tax Exemption

+

Dedicated Account Managers

Description

The Joerns Hoyer Journey Patient Stand Aid comes with a documents folder, hand control, battery pack, charging lead, desk top chargers and stands.

Warranties:

  • 2 Years - Defects in Material and Workmanship.
  • 5 Years - Aluminum structural components and mechanical components.
  • 90 Days - Casters and batteries.

The Joerns Hoyer Journey Patient Stand Aid is a portable folding stand aid that's also lightweight and easy to store and transport. This unique stand aid also has a cow-horn grip mechanism that allows the user to adjust the unit to any patient height, making this a very versatile unit for busy clinics and care facilities.

In addition to the cow-horn feature, the kneepads are also adjustable with one hand. The stand aid is equipped with a Smart Monitor control that has an LCD service data display and a red emergency stop button. A foot pad at the bottom provides grip and stability while the patient is standing.

Compatible Slings (sold separately):

  • Joerns Hoyer Transport Sling.
  • Joerns Hoyer Standing Sling.

Features

Joerns Hoyer Journey Patient Stand Aid Features

  • Lightweight, portable stand aid weighing only 88 lb.
  • Safe working load capacity up to 341 lb.
  • Cow-horn adjustable height feature accommodates patients of all heights.
  • Equipped with Smart Monitor for service data and lift utilization.

Specifications

Joerns Hoyer Journey Patient Stand Aid Specifications

    • Safe Working Load: 341 lb (155 kg).
    • Maximum Overall Length: 39.4" (1000 mm).
    • Minimum Overall Length: 36.8" (935 mm).
    • Maximum Overall Height: 63.0" (1600 mm).
    • Minimum Overall Height: 44.5" (1130 mm).
    • Maximum Height to Attachment Point: 60.2" (1530 mm).
    • Minimum Height to Attachment Point: 28.4" (720 mm).
    • Turning Radius: 45.1" (1145 mm).
    • Legs Open - External Width: 38.2" (970 mm).
    • Legs Open - Internal Width: 34.5" (875 mm).
    • Legs Closed - External Width: 27.0" (685 mm).
    • Legs Closed - Internal Width: 22.2" (590 mm).
    • Widest Point (between support handles): 18.8" (475 mm).
    • Overall Height of Legs: 4.3" (110 mm).
    • Ground Clearance: 1.2" (30 mm).
    • Front Twin Casters: 3.0" (75 mm).
    • Rear Braked Casters: 4.0" (100 mm).

    Weights

    • Mast, Base & Boom Assembly: 82.4 lb (37.4 kg).
    • Power Pack: 6.2 lb (2.8 kg).
    • Total: 88.6 lb (40.2 kg).
    • Base Assembly (not incl. battery): 30.2 lb (13.7 kg).
    • Mast & Boom (not incl. battery): 42.3 lb (19.2 kg).
    • Foot Tray: 9.9 lb (4.5 kg).

    Electric Shock Protection

    • Charger: Class II.
    • Lift: Internal power source.

    Degree of Shock Protection

    • Charger: Type B.
    • Lift: Type B.
    • Intended operating environment: >+5°C <+40°C.

    Frequently asked questions

    What is the impressive safe working load capacity?

    The Joerns Hoyer Journey Patient Stand Aid boasts an impressive safe working load capacity of 341 lb (155 kg), ensuring robust performance and patient safety.

    Is the Journey Stand Aid lightweight and easy to fold?

    Yes, the Joerns Hoyer Journey Patient Stand Aid is designed for maximum portability and easy storage. This is achieved through:

    • Lightweight Construction: The total weight of the stand aid is only 88.6 lb (40.2 kg).
    • Folding Capability: It features a convenient folding design, allowing it to be easily stored and transported within busy care facilities.
    How does the stand aid adjust for different patient heights?

    The Joerns Hoyer Journey Patient Stand Aid features an adjustable cow-horn grip, which allows it to accommodate patients of varying heights. This enhances its versatility in clinical settings.

    What valuable information does the Smart Monitor display?

    The Smart Monitor control on the Joerns Hoyer Journey Patient Stand Aid features an LCD service data display and provides lift utilization information. This essential data helps with maintenance and tracking the device’s usage.

    What safety features are included with the Joerns Hoyer Journey Patient Stand Aid?

    The Joerns Hoyer Journey Patient Stand Aid includes several safety features designed for secure patient handling:

    • Red Emergency Stop Button: Allows for immediate halting of the lift’s operation in an emergency.
    • Foot Pad: Provides enhanced grip and stability for the patient’s feet during the standing process.
    Are the kneepads adjustable on the Joerns Hoyer Journey Patient Stand Aid?

    Yes, the kneepads are one-hand adjustable, making it easy to position them for patient comfort and support.

    What kind of slings are compatible with the Joerns Hoyer Journey Patient Stand Aid?

    The Joerns Hoyer Journey Patient Stand Aid is compatible with the Joerns Hoyer Transport Sling and Joerns Hoyer Standing Sling, which are sold separately.

    Which essential components are included?

    The Joerns Hoyer Journey Patient Stand Aid ships complete with the following essential components:

    • Documents folder
    • Hand control
    • Battery pack
    • Charging lead
    • Desk top chargers
    • Stands
    Is the structural component warranty reliable?

    Yes, the Joerns Hoyer Journey Patient Stand Aid features a robust, tiered warranty structure:

    • 5 Years: Coverage for aluminum structural and mechanical components.
    • 2 Years: Coverage for defects in material and workmanship.
    • 90 Days: Coverage for casters and batteries.
    How much does the lightweight Joerns Hoyer Journey Stand Aid weigh?

    The Joerns Hoyer Journey Patient Stand Aid weighs 88.6 pounds (40.2 kg). This lightweight design contributes to its exceptional portability, making it easy to store and transport.
