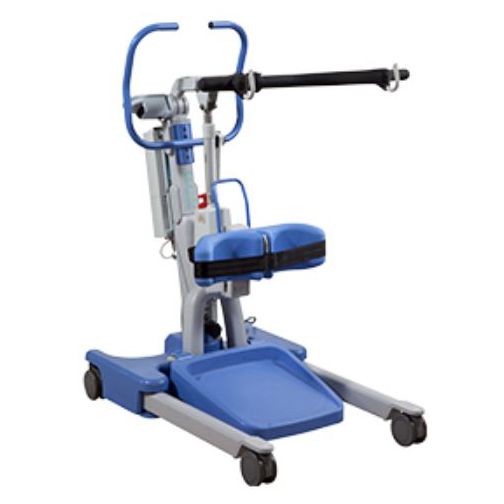

Joerns Hoyer Elevate Patient Lift

Joerns Hoyer Elevate Patient Lift

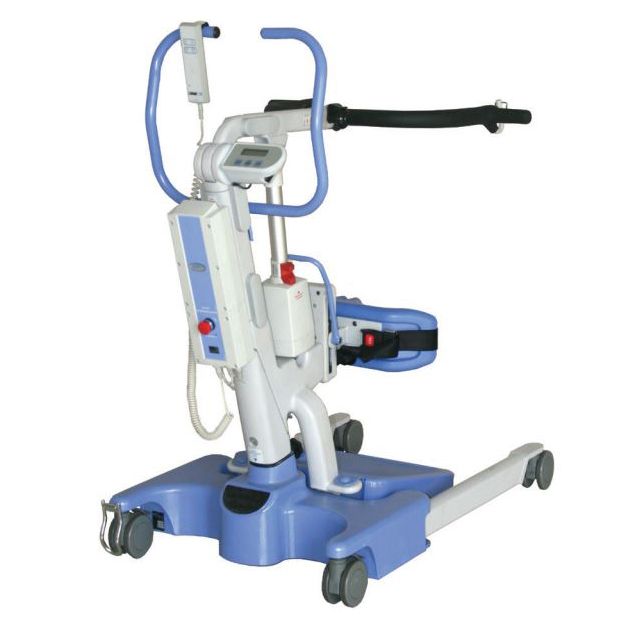

Joerns Hoyer Elevate Patient Lift - Back View
Joerns Hoyer Elevate Patient Lift - Smart Monitor
Joerns Hoyer Elevate Patient Lift - Kneepad
Joerns Hoyer Elevate Patient Lift - Scale
Joerns Hoyer Elevate Patient Lift - Foot Tray
Joerns Hoyer Elevate Patient Lift
Joerns Hoyer Elevate Patient Lift - Back View
Joerns Hoyer Elevate Patient Lift - Smart Monitor
Joerns Hoyer Elevate Patient Lift - Kneepad
Joerns Hoyer Elevate Patient Lift - Scale
Joerns Hoyer Elevate Patient Lift - Foot Tray
Key Features
  • SKU: JRN-HOY-ELEVATE-S
  • Condition:
    Condition: Factory New
  • Country of Origin: Mexico
  • Warranty:
    Warranty: 5 Years
  • Includes documents folder, hand control, battery pack, charging cord, desk top charge and stands, and a spirit leveling device
  • Supports up to 440 lb (200 kg)
  • Kneepad and foot tray provide stability

  • Learn more:

Contact The Manufacturer
  • MFR: Joerns
    Ships from Manufacturer
  • MPN: HOY-ELEVATE-S
  • Phone: (800) 826-0270
$8,689.00 $5,666.00

+Shipping

Select a Configuration
Est. Delivery:

Earn [points_amount] when you buy this item.

Shop with Confidence

Oversized Shipping

Return Policy

Payment Options

Price Match Guarantee

Sales Tax Exemption

Dedicated Account Managers

Description

The Joerns Hoyer Elevate Patient Lift comes with a documents folder, hand control, battery pack, charging cord, desk top charge and stands, and a spirit leveling device.

Warranties:

  • 2 Years - Defects in Material and Workmanship.
  • 5 Years - Aluminum structural components and mechanical components.
  • 90 Days - Casters and batteries.

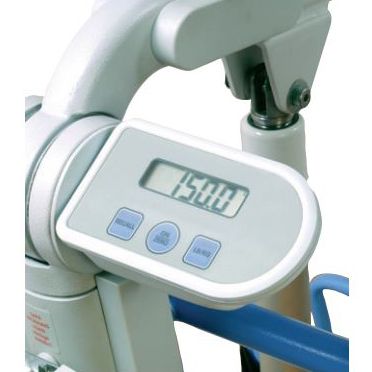

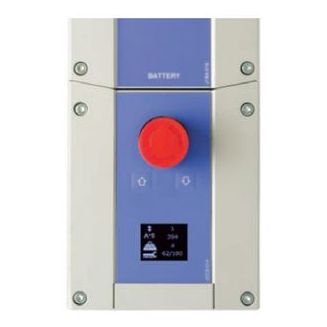

This standing lift has a working load capacity up to 440 lb (200 kg), and can be purchased as the standard model with electric base, or with a scale integrated. The power base levels the patient while the device is in use and during transfer. The unit is also equipped with a Smart Monitor that has a digital display, which shows lift and service data.

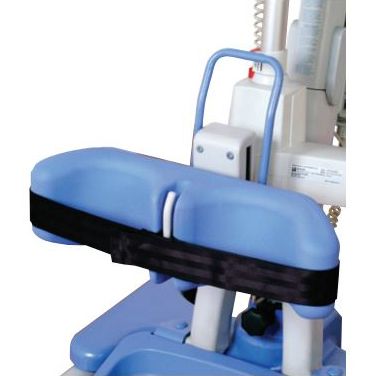

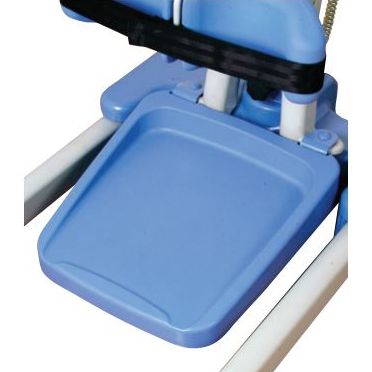

To help the patient stabilize, this lift has a kneepad and foot tray. The kneepad is adjustable and rises with the patient, and the foot tray is angled and removable for testing patient's gaits.

See Accessories for compatible slings.

Features

Joerns Hoyer Elevate Patient Lift Features

  • Safe working capacity up to 440 lb (200 kg).
  • Assists patients who have trouble standing.
  • Foot tray can be removed to test patient's gait.
  • Adjustable kneepad that's comfortable for the patient.

Specifications

Joerns Hoyer Elevate Patient Lift Specifications

  • Safe Working Load: 440 lb  (200 kg).
  • Maximum Overall Length: 43.3" (1100 mm).
  • Minimum Overall Length: 41.0" (1040 mm).
  • Maximum Overall Height: 65.5" (1665 mm).
  • Minimum Overall Height: 48.4" (1230 mm).
  • Maximum Height to Attachment Point: 64.7" (1644 mm).
  • Minimum Height to Attachment Point: 39.2" (995 mm).
  • Turning Radius: 48.2" (1225 mm).
  • Legs Open - External Width: 39.1" (995 mm).
  • Legs Open - Internal Width: 34.3" (870 mm).
  • Legs Closed - External Width: 24.8" (630 mm).
  • Legs Closed - Internal Width: 20.0" (510 mm).
  • Widest Point (between support handles): 29.0" (738 mm).
  • Overall Height of Legs: 4.7" (120 mm).
  • Ground Clearance: 1.4" (35 mm).
  • Front Twin Casters: 4.0" (100 mm).
  • Rear Braked Casters: 4.0" (100 mm).

Weights

  • Mast, Base & Boom Assembly: 127.3 lb (59 kg).
  • Power Pack: 6.6 lb (3.0 kg).
  • Total: 136.4 lb (62 kg).
  • Base Assembly (not incl. battery): 40.7 lb (18.5 kg).
  • Mast & Boom (not incl. battery): 66 lb (30 kg).
  • Foot Tray: 23.1 lb (10.5 kg).

Electric Shock Protection

  • Charger: Class II.
  • Lift: Internal power source.

Degree of Shock Protection

  • Charger: Type B.
  • Lift: Type B.
  • Intended operating environment: >+5°C

Electrical Specifications

  • Battery: 24vDC rechargeable sealed lead acid type.
  • Battery Capacity: 3.2A Ampere hours.
  • Charger Rated Input: 100-240V AC 24 VDC 50/60Hz.
  • Charger Rated Output: 29.5 VDC, Max. 19 W.

Configurations

Joerns Hoyer Elevate Patient Lift Configurations

  • #HOY-ELEVATE-S: Standard.
  • #HOY-ELEVATEWSC-S: With Scale.

Accessories

Joerns Hoyer Elevate Patient Lift Accessories

Compatible Slings (sold separately):

  • Joerns Hoyer Transport Sling.
  • Joerns Hoyer Standing Sling.
