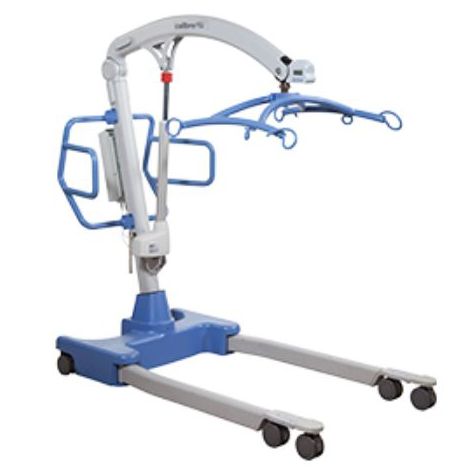

Joerns Hoyer Calibre Bariatric Patient Lift

The Joerns Hoyer Calibre Bariatric Patient Lift is shipped as a complete, ready-to-use system. The purchase includes the following essential components:

• Mast, Base, Boom Assembly, and Cradle: These form the primary structure of the lift.
• Power Pack (with Batteries): Supplies the electronic power for lift operation.
• Charger: Used to recharge the dual 12-volt sealed lead-acid batteries.
• 6-Point Spreader Bar: This is the component used for secure patient sling attachment, designed to ensure smooth transfers and minimize patient discomfort.

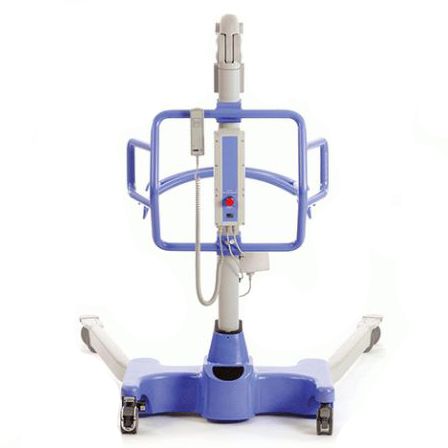

The electric base adjustment allows the legs of the lift to be opened and closed electrically. This feature facilitates easier maneuverability around wheelchairs, toilets, and other furniture, making patient transfers smoother and more efficient.

The Joerns Hoyer Calibre Lift is powered by a robust, rechargeable system designed for demanding clinical use. It utilizes a dedicated charger that is included with the unit.

Key power specifications are:

• Power Source: Two (2) 12-volt rechargeable sealed lead acid batteries
• Battery Capacity: 3.2 Ampere Hours
• Charger Rated Input: 100 / 240 VAC, 50 / 60 Hz
• Charger Rated Output: 27.4 / 29 VDC @ 0.8A

Additionally, the lift is equipped with a Smart Monitor display that provides continuous tracking of the current battery level and lift utilization data, supporting efficient operation and charging schedules.

The Joerns Hoyer Calibre Bariatric Patient Lift comes with structured warranty coverage:

• 5 Years: Coverage for aluminum structural components and mechanical components.
• 2 Years: Coverage for defects in material and workmanship.
• 90 Days: Coverage for casters and batteries.

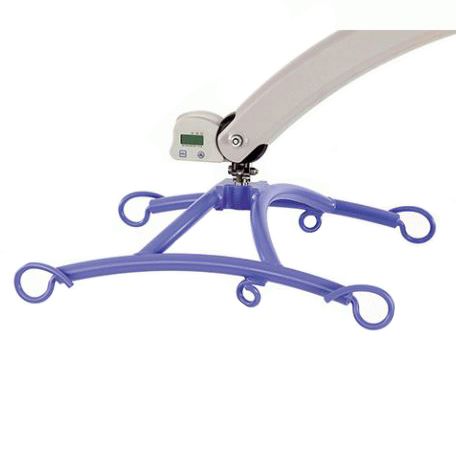

The six-point cradle on the Joerns Hoyer Calibre Bariatric Patient Lift is designed for seamless transfers, ensuring even weight distribution and reducing discomfort for the patient during lifts.

This heavy-duty patient lift is engineered for demanding care environments that require the safe and comfortable transfer of bariatric individuals (up to 850 lb).

It is ideally suited for use in:

• Acute care settings, such as hospitals
• Long-term care facilities
• Home healthcare environments

The design emphasizes clinical functionality, durability, and patient comfort during frequent transfers.

The Joerns Hoyer Calibre Bariatric Patient Lift can safely lift patients weighing up to 850 lbs (386 kg). This high weight capacity makes it a reliable solution for bariatric patient care.

Yes, this lift features an integrated weigh scale that accurately measures a patient’s weight. The weight is displayed on both sides of the controls for quick and convenient reading.

The Joerns Hoyer Calibre is designed with specific dimensions to ensure superior stability and maneuverability when transferring bariatric patients (up to 850 lb). Its electrically adjustable base allows for versatile positioning around furniture and equipment.Key dimensions are as follows:* Overall Length (Maximum): 64” (1626 mm)* Maximum Reach (Boom): 37” (940 mm)Adjustable Base Width (External Dimensions):* Legs Closed: 33.25” (845 mm)* Legs Open: 55.25” (1403 mm)Leg Height and Clearance (for low furniture access):* Overall Height of Legs: 4.75” (120 mm)* Ground Clearance: 1.2” (30 mm)

The ground clearance of the Joerns Hoyer Calibre Bariatric Patient Lift is 1.2” (30 mm).
