- Weight: 1.55 lb
- Dynamic digital noise reduction reduces the background hiss and the gel filter reduces the loud crackle when gel is applied
- Bi-directional waveform generated from the Digital Doppler Spectrum with auto scaling features
- USB port for convenient charging and communication with software and stereo headphone connection socket
- High resolution color display with waveforms displayed in high definition and a wide viewing angle
-
Learn more:
-
MFR:
ArjoHuntleigh
Ships from MFI Medical
-
MPN: DMX-USA
- Phone: (800) 323-1245
Frequently asked questions
Is the Dopplex DMX compatible with interchangeable XS Probes?
Yes, the Dopplex DMX is fully compatible with high-sensitivity interchangeable XS Probes.
This design ensures the system is highly versatile and adaptable, allowing clinicians to select specialized probes necessary for different vascular assessment requirements.
Is waveform data storage included?
Yes, the Dopplex DMX features comprehensive data storage capabilities, crucial for clinical review and archiving.
- Storage Medium: Data is saved onto a removable Micro SD card.
- Data Captured: The device stores high-definition waveforms and associated Doppler sounds.
- Review and Archiving: You can use the built-in 20-second scroll memory for immediate review. Data can also be transferred via the integrated Micro USB port to optional DR5 software for detailed reporting and long-term archiving.
What items are included with the Dopplex DMX?
The Huntleigh Dopplex DMX Digital Doppler comes complete with the necessary items for initial operation and transport. The package includes:
- A soft carry bag for protection and portability.
- A 60 g tube of ultrasound gel.
- The user instruction manual.
- Batteries, which depend on the configuration you select:
- The Standard Battery variant includes 2 x AA Alkaline batteries (offering up to 500 one-minute exams).
- The Rechargeable Battery configuration includes the appropriate rechargeable battery pack.
Does the DMX provide objective vascular diagnosis?
Yes, the Huntleigh Dopplex DMX is specifically engineered to provide clinicians with objective evidence necessary for accurately diagnosing vascular disease, moving beyond the limitations of standard acoustic-only Dopplers. It enhances diagnostic confidence through superior data clarity and visualization.
Key features supporting this objective diagnosis include:
- Bi-directional Waveforms: Displays the Digital Doppler Spectrum on a high-resolution color screen with auto-scaling for accurate visualization of blood flow.
- Enhanced Signal Clarity: Features Dynamic Digital Noise Reduction (DDNR) and a gel filter to minimize background hiss and crackle, optimizing both audible and visual output.
- Data Storage: Waveforms and sounds can be stored on a removable Micro SD card, enabling detailed review, archival, and report generation via the optional DR5 software.
Does it feature convenient USB charging and data transfer?
Yes, the Huntleigh Dopplex DMX includes a Micro USB port that provides versatile connectivity for both power management and diagnostic data transfer.
Key functions of this port include:
- Data Transfer: It allows communication with a PC to transfer stored waveforms and sound recordings. This is crucial for using the optional DR5 software package for comprehensive reporting and archiving.
- Charging: When you choose the Rechargeable Battery configuration, the USB port facilitates convenient charging of the device.
Does it have an integrated loudspeaker and stereo output?
Yes, the Huntleigh Dopplex DMX is equipped with both features for flexible audio monitoring and detailed assessment:
- Integrated Loudspeaker: Provides clear audio output for convenient, general use.
- Flow Separated Stereo Headphone Output socket: Offers flow-separated audio, which is essential for detailed, private listening and accurate clinical assessment.
Does this device display bi-directional waveforms?
Yes, the Dopplex DMX features a bi-directional waveform display with auto-scaling. This maximizes accuracy and clarity of waveforms; essential for patients with poor blood flow.

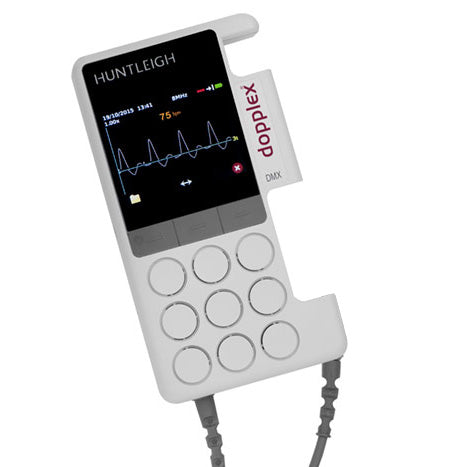

Does the Dopplex DMX feature a high-resolution color display?
Yes, the Huntleigh Dopplex DMX features a high-resolution color display.
This display is a critical tool for clinicians as it provides objective evidence by:
- Rendering bi-directional Doppler waveforms in high definition across a wide viewing angle.
- Using an auto-scaling feature to maximize accuracy, which is essential when assessing patients with poor blood flow.
- Ensuring clear visual presentation of the vascular assessment data.
What power source options are available?
The Huntleigh Dopplex DMX Digital Doppler offers two distinct power source configurations for clinical flexibility:
- Standard Battery Variant: This configuration uses 2 x AA Alkaline batteries. It is highly efficient, supporting up to 500 one-minute exams before the batteries need replacing.
- Rechargeable Battery Variant: This option features an internal rechargeable battery. It conveniently utilizes the integrated Micro USB port for charging and data communication.
What ensures superior waveform clarity?
The Huntleigh Dopplex DMX utilizes two primary systems to ensure superior signal clarity and optimize waveform presentation, making it accurate even for patients with poor blood flow:
- Dynamic Digital Noise Reduction (DDNR): This feature actively minimizes unwanted background noise (hiss and crackle) during sound processing.
- Dedicated Gel Filter: Specifically designed to reduce the loud artifact or ‘crackle’ that often occurs when ultrasound gel is applied.
This combination provides objective evidence and accurate, high-definition waveforms crucial for challenging vascular assessments.
