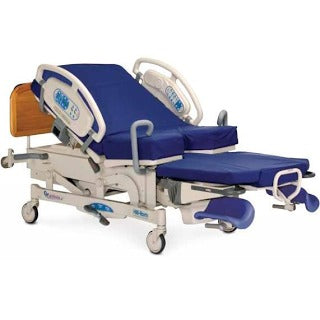

Hill-Rom Affinity 4 Birthing Bed

The Hill-Rom Affinity 4 Birthing Bed (#P3700) includes a new 6" Hospital-Grade Memory Foam Mattress and is available with optional Stow and Go foot section.

Note: Hospital bed wand/remote not included nor is required for operation.

Warranty: 90 Days - Parts and Labor.

The Affinity 4 is designed to help make the birthing process safe for the patient and caregiver. It allows for caregivers to respond and adjust quickly and efficiently to patient delivery needs even in emergency situations. Even when it is far away from an outlet, the battery backup feature will ensure that all of the bed's features may be used. In labor and delivery, every second counts, which is why it is important to have such a versatile and responsive Birthing Bed system.

Stow and Go No-lift Patient Foot Section (optional): Convenient, stow away foot section stores under the bed, eliminating lifting and saving you valuable space in the birthing suite.

Hill-Rom Affinity 4 Birthing Bed Features

• EasyGlide Calf Support: Swings into correct position and locks with a single lever.
• SideCom Communication System: Nurse call (standard).
• Light Weight Lift-Off Foot Section: Lightweight and easy to handle, the foot section stores on a built-in stand keeping the mattress off the floor.
• Battery backup.
• Zero transfer gap is achieved with the OneStep siderail release.
• Easy-to-use, gas-assisted Trend mechanism allows head elevation to immediately lower to 8°.
• Four dual-lock casters keep the bed safely in place.
• Automatic pelvic tilt to provide better access to patient for birth.
• Automatic night light.
• Automatic seat tilt.
• Blow-molded headboard.
• Fluid basin.
• Central brake and steering.
• Instant CPR release.
• Lockout control/indicator.
• Labor grips.
• IV pole.
• Foot supports.

Hill-Rom Affinity 4 Birthing Bed Specifications

• Full Bed Length: 90" (229 cm).
• Bed Width:
  • Side Rails Up: 39" (99 cm).
  • Side Rails Down: 36" (91 cm).
• Bed Height:
  • Low: 23" (58 cm).
  • High: 39" (99 cm).
  • Maximum in Trend-Like Position: 40" (102 cm).
• Mattress Length: 78" (198 cm).
• Mattress Width: 35" (89 cm).
• Head Elevation: 63° (maximum).
• Seat Elevation: 15° (maximum).
• Trend-Like Positioning: 8° (maximum).
• Caster Size: 6" (15 cm).
• Bed Capacity: 500 lb (227 kg).
• Foot Section Capacity: 400 lb (181 kg).
• Bed Weight: 481 lb (218 kg).

Hill-Rom Affinity 4 Birthing Bed Configurations

• #MFI-HRM-AFFINITY-IV: Standard (No Calf Supports).
• #MFI-HRM-AFFINITY-IV-CS: With Calf Supports.
• #MFI-HRM-AFFINITY-IV-SG: Standard (No Calf Supports) with Stow and Go Patient Foot Section.
• #MFI-HRM-AFFINITY-IV-CS-SG: With Calf Supports and Stow and Go Patient Foot Section.

Hill-Rom Affinity 4 Birthing Bed Literature

Hill-Rom Affinity Three/Four Birthing Bed Service Manual

Hill-Rom Affinity Three/Four Birthing Bed User Manual

Hillrom Affinity 4 Birthing Bed Labor Positions Poster

Hill-Rom Affinity 4 Birthing Bed Spec Sheet
