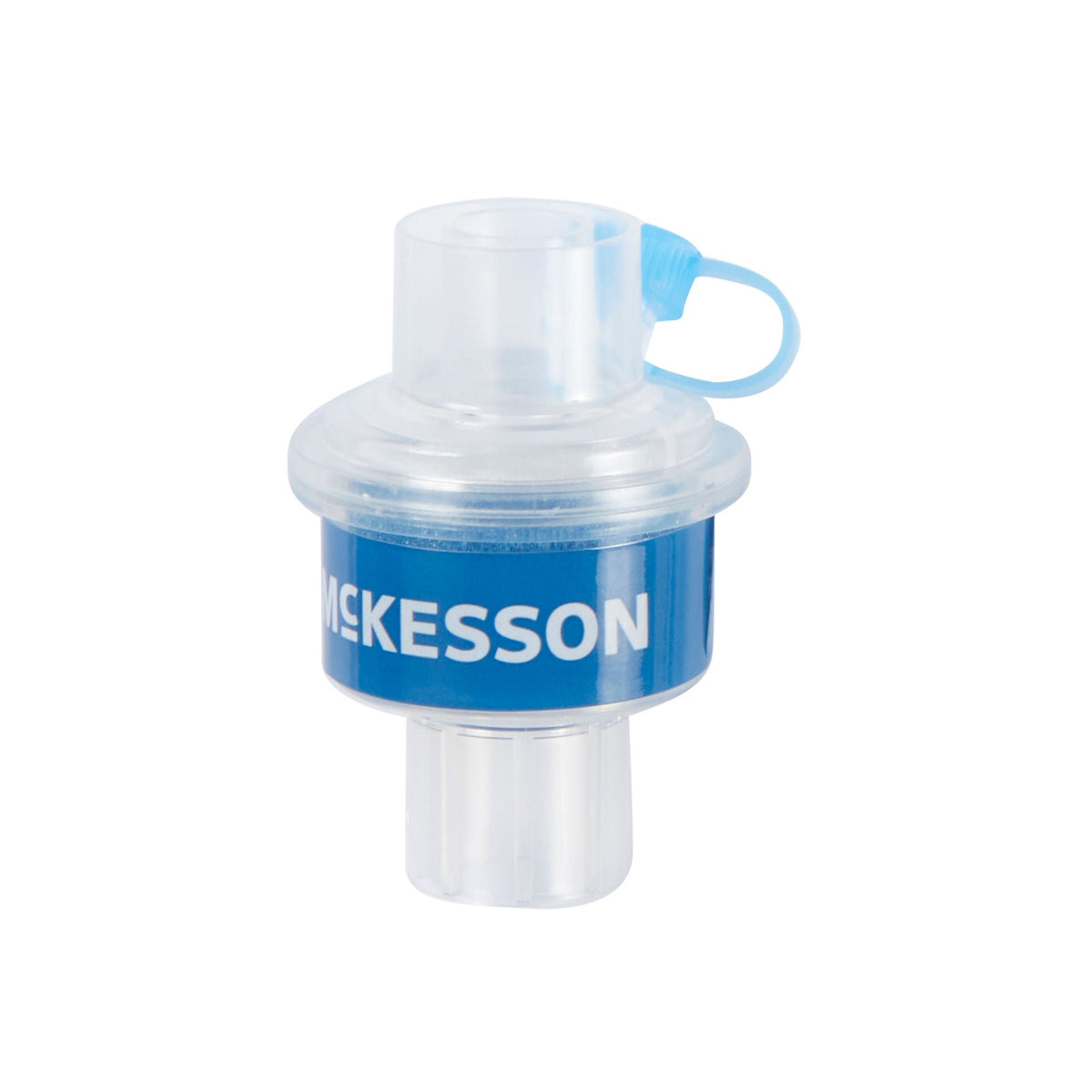

Heat and Moisture Exchanger with Filter McKesson 29.2 mg H₂O/L @ VT 500 mL 2.5 cm H₂O @ 30 LPM Straight

Heat and Moisture Exchanger with Filter McKesson 29.2 mg H₂O/L @ VT 500 mL 2.5 cm H₂O @ 30 LPM Straight
Key Features
  • SKU: MKS-16-6220
  • Condition: Factory New

  • Learn more:

Contact The Manufacturer
$138.04

+ Free Shipping

Special Order Item

Est. Delivery:
<p>Earn%20[points_amount]%20when%20completing%20this%20purchase.</p>

Shop with Confidence

Free Shipping

+

Free Returns

Payment Options

+

Price Match

Description

  • McKesson Mini In-Line Heat and Moisture Exchanger with CO2 Port
  • Mini design allows tidal volumes from 150 mL - 1000 mL for broad use among children and adults
  • In-line design allows for use with gas elbow to fit to fit user preference
  • For short-term airway humidification
  • For the moisture and heat retention for return to the patient and provides filtration for prevention of breathing system contamination
  • Optimal choice for enhancing the effectiveness of any breathing systems such as ventilators or anesthesia circuits
  • Bacterial/viral filtration efficiencies in excess of 99.9%
  • High moisture retention characteristics
  • Clear housing to view levels of humidification
  • Provide superior moisture output, minimum size, low breathing resistance
  • True hygroscopic condensing humidifier (HCH) for maximal performance without potentially harmful chemicals
  • Treated with physiologically safe calcium chloride, hygroscopic membrane traps patient’s moisture providing effective airway humidification
  • Low resistance to airflow minimizes work of breathing
  • Effective filtration reduces the risk of colonization in breathing tubes and minimizes sampling line blockage
  • End tidal CO2 sampling port offers convenient access to airway gases
  • Luer gas sampling ports for secure connection
  • ISO-standard connections for secure, leak-resistant attachment to breathing systems
  • Conveniently-located luer connection permits gas sampling at the top of the housing, just as if a common gas sampling elbow were being used
  • Disposable available in convenient case quantities and individually-wrapped for single patient use
  • Not Made with Natural Rubber Latex
  • 1 Per Pack, 50 Packs Per Case

Product Specs

Item Number 1109626
Catalog Number 16-6220
UOM CS
Level 1 Family Description Respiratory Products
Level 2 Category Description Respiratory Therapy
Level 3 Group Description Humidification
Level 4 Sub-Category Description Heat/Moisture Exchange
Application Heat and Moisture Exchanger with Filter
Brand McKesson
Buy American Act (BAA) Compliant No
Connection Type 22 mm O.D. / 15 mm I.D. x 22 mm I.D. / 15 mm O.D. Port
Country of Origin Mexico
Dead Space 26.77 mL
Filter Efficiency BFE 99.9%
Filter Efficiency VFE 99.9%
Filter Type Hygroscopic
Is_ECAT N
Is_GSA N
Is_VA Y
Latex Free Indicator Not Made with Natural Rubber Latex
Manufacturer McKesson Brand
Manufacturer # 16-6220
McKesson # 1109626
Moisture Output 29.2 mg H₂O/L @ VT 500 mL
Port Type Gas Sampling Port
Resistance 2.5 cm H₂O @ 30 LPM
Size Mini
Sterility NonSterile
Style Straight
Trade Agreement Act (TAA) Compliant Yes
UNSPSC Code 42272219
User Adult
Volume 150 to 1000 mL

Frequently asked questions

Does this HME provide reliable bacterial filtration?

Yes, this unit offers exceptional protection. It features a high-efficiency hygroscopic filter that provides bacterial and viral filtration efficiencies exceeding 99.9%, helping to significantly reduce the risk of breathing system colonization.

Is the humidifier safe for patient use?

Absolutely. It utilizes a hygroscopic condensing humidifier (HCH) design treated with physiologically safe calcium chloride. This method effectively traps patient moisture and heat without the use of potentially harmful chemicals.

Will this device increase the patient's breathing effort?

The device is specifically engineered with a low-resistance design to minimize the patient’s work of breathing. It is tested to have a low resistance of 2.5 cm H₂O at 30 LPM, ensuring it remains unobtrusive during ventilation or anesthesia.

Can this be used for both adults and children?

Yes, it is highly versatile. Due to its compact “mini” design and a tidal volume range of 150 mL to 1000 mL, this HME is perfectly suitable for a wide range of both pediatric and adult applications.

Is it easy to monitor the unit during use?

Yes. The housing is constructed from a clear, transparent material, which allows clinicians to easily perform visual inspections of the humidification progress and internal status at any time.

Does it support routine CO2 monitoring?

Yes, it is designed for seamless clinical integration. It includes an integrated luer-lock gas sampling port that allows for convenient CO2 monitoring without the need to disconnect the circuit or compromise system integrity.

Will it fit my standard breathing circuits?

The device features standard ISO connections to ensure a secure, leak-resistant fit. It is equipped with: 22 mm O.D. / 15 mm I.D. x 22 mm I.D. / 15 mm O.D. ports.

Are there any natural rubber latex materials used?

No. This product is manufactured with material safety in mind and is explicitly not made with natural rubber latex.

What is the expected moisture output performance?

This HME delivers efficient humidification performance with a moisture output of 29.2 mg H₂O/L at a tidal volume of 500 mL, ensuring the patient’s airway remains properly hydrated.

Is this product TAA compliant for government use?

Yes, this McKesson Heat and Moisture Exchanger is fully TAA compliant and is eligible for VA procurement.
