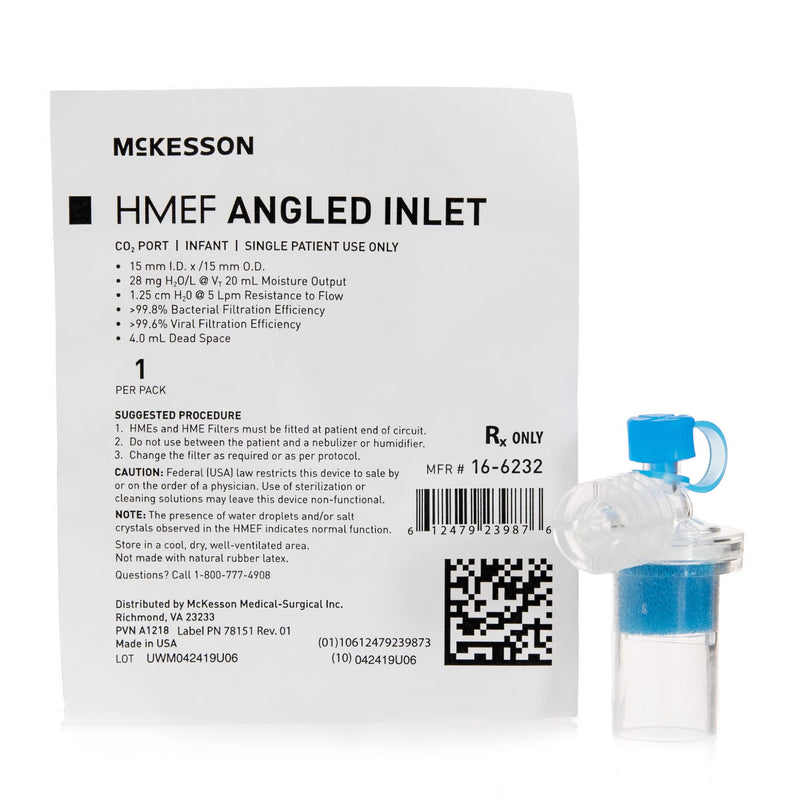

Heat and Moisture Exchanger with Filter McKesson 28 mg H₂O/L @ VT 20 mL 1.25 cm H₂O @ 5 LPM Angled

Key Features

SKU: MKS-16-6232
Condition: Factory New
Learn more:

Contact The Manufacturer

MFR: McKesson Brand Ships from MFI Medical
MPN: 16-6232

$65.81

Shop with Confidence

Description

McKesson Angled Inlet Heat and Moisture Exchanger
Tidal volume of 20 mL for infant use
Angled inlet eliminates need for gas sampling elbow
For short-term airway humidification
For the moisture and heat retention for return to the patient and provides filtration for prevention of breathing system contamination
Optimal choice for enhancing the effectiveness of any breathing systems such as ventilators or anesthesia circuits
Bacterial filtration efficiencies in excess of 99.8%
Viral filtration efficiencies in excess of 99.6%
Clear housing to view levels of humidification
High moisture retention characteristics
Provide superior moisture output, minimum size, low breathing resistance
True hygroscopic condensing humidifier (HCH) for maximal performance without potentially harmful chemicals
Treated with physiologically safe calcium chloride, hygroscopic membrane traps patient’s moisture providing effective airway humidification
Low resistance to airflow minimizes work of breathing
Effective filtration reduces the risk of colonization in breathing tubes and minimizes sampling line blockage
End tidal CO2 sampling port offers convenient access to airway gases
Luer gas sampling ports for secure connection
ISO-standard connections for secure, leak-resistant attachment to breathing systems
Disposable available in convenient case quantities and individually-wrapped for single patient use
Not Made with Natural Rubber Latex
1 Per Pack, 25 Packs Per Case

Product Specs

Item Number	1109631
Catalog Number	16-6232
UOM	CS
Level 1 Family Description	Respiratory Products
Level 2 Category Description	Respiratory Therapy
Level 3 Group Description	Humidification
Level 4 Sub-Category Description	Heat/Moisture Exchange
Application	Heat and Moisture Exchanger with Filter
Brand	McKesson
Buy American Act (BAA) Compliant	No
Connection Type	15 mm I.D. x 15 mm O.D. Port
Country of Origin	Mexico
Dead Space	4.0 mL
Filter Efficiency BFE	99.8%
Filter Efficiency VFE	99.6%
Filter Type	Hygroscopic
Is_ECAT	N
Is_GSA	N
Is_VA	Y
Latex Free Indicator	Not Made with Natural Rubber Latex
Manufacturer	McKesson Brand
Manufacturer #	16-6232
McKesson #	1109631
Moisture Output	28 mg H₂O/L @ VT 20 mL
Port Type	Gas Sampling Port
Resistance	1.25 cm H₂O @ 5 LPM
Sterility	NonSterile
Style	Angled
Trade Agreement Act (TAA) Compliant	Yes
UNSPSC Code	42272219
User	Infant
Volume	20 mL

Frequently asked questions

Does this HMEF provide high-level bacterial protection?

Yes, this device is engineered for safety with high-efficiency filtration:

Bacterial Filtration Efficiency (BFE): >99.8%
Viral Filtration Efficiency (VFE): >99.6%
These metrics help ensure superior protection against breathing system colonization.

Is the design optimized for infant respiratory needs?

Absolutely. This filter is specifically built for infant care, featuring:

Optimized Tidal Volume: 20 mL capacity.
Minimal Resistance: Only 1.25 cm H₂O @ 5 LPM, helping to reduce the patient’s work of breathing.

How effective is the moisture retention performance?

It provides reliable and consistent airway humidification, delivering an output of 28 mg H₂O/L. It utilizes a high-quality hygroscopic condensing humidifier (HCH) membrane treated with calcium chloride for superior moisture output.

Does it simplify the breathing circuit setup?

Yes, the integrated design streamlines your workflow by:

Eliminating extra parts: The angled inlet removes the need for a separate gas sampling elbow.
Convenient Monitoring: It includes an integrated Luer connection port for easy gas sampling.

Is the material safe for sensitive patients?

The device is constructed with patient safety in mind and is not made with natural rubber latex. Furthermore, the hygroscopic membrane is treated with physiologically safe calcium chloride rather than harsh or harmful chemicals.

Can I easily monitor the filter during use?

Yes, the housing is constructed from clear, high-grade material. This allows for simple and effective visual inspection of humidification levels and the internal status of the filter medium at any time.

What is the best way to position this in a circuit?

For maximum efficacy, the unit should be fitted at the patient end of the breathing circuit. Please note that it is not intended for use between the patient and a separate nebulizer or humidifier.

Are there any indicators that the filter is working correctly?

Yes. It is normal to observe small water droplets or salt crystals within the housing. These are standard byproducts of the hygroscopic membrane effectively capturing moisture and should not be cause for concern.

Is this a lightweight solution for medical circuits?

The device is designed with a technical, minimalist profile. It is exceptionally lightweight, ensuring it can be integrated into infant ventilator or anesthesia circuits without adding unnecessary bulk or mechanical stress to the system.

Does this meet professional clinical standards?

Yes, this McKesson product is TAA Compliant and VA Approved, confirming it meets the rigorous standards required for professional medical and clinical environments.
