Description

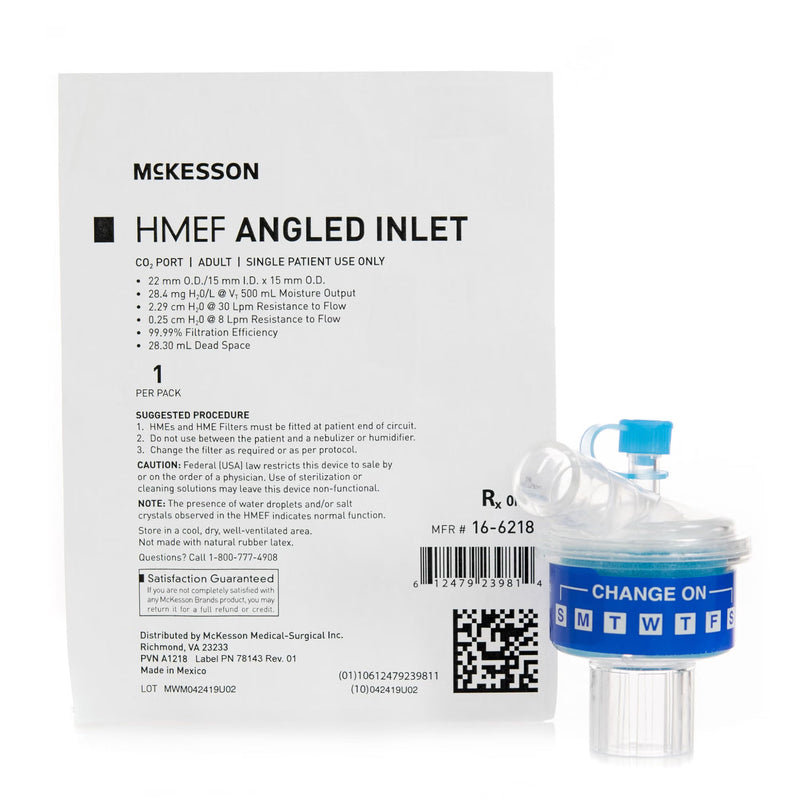

  • McKesson Angled Inlet Heat and Moisture Exchanger with CO2 Port
  • Mini design allows tidal volumes from 150 mL - 1000 mL for broad use among children and adults
  • Angled inlet eliminates need for gas sampling elbow
  • For short-term airway humidification
  • For the moisture and heat retention for return to the patient and provides filtration for prevention of breathing system contamination
  • Optimal choice for enhancing the effectiveness of any breathing systems such as ventilators or anesthesia circuits
  • Bacterial/viral filtration efficiencies in excess of 99.9%
  • High moisture retention characteristics
  • Clear housing to view levels of humidification
  • Provide superior moisture output, minimum size, low breathing resistance
  • True hygroscopic condensing humidifier (HCH) for maximal performance without potentially harmful chemicals
  • Treated with physiologically safe calcium chloride, hygroscopic membrane traps patient’s moisture providing effective airway humidification
  • Low resistance to airflow minimizes work of breathing
  • Effective filtration reduces the risk of colonization in breathing tubes and minimizes sampling line blockage
  • End tidal CO2 sampling port offers convenient access to airway gases
  • Luer gas sampling ports for secure connection
  • ISO-standard connections for secure, leak-resistant attachment to breathing systems
  • Disposable available in convenient case quantities and individually-wrapped for single patient use
  • Not Made with Natural Rubber Latex
  • 1 Per Pack, 50 Packs Per Case

Product Specs

Item Number 1109620
Catalog Number 16-6218
UOM CS
Level 1 Family Description Respiratory Products
Level 2 Category Description Respiratory Therapy
Level 3 Group Description Humidification
Level 4 Sub-Category Description Heat/Moisture Exchange
Application Heat and Moisture Exchanger with Filter
Brand McKesson
Buy American Act (BAA) Compliant No
Connection Type 22 mm O.D. / 15 mm I.D. x 15 mm O.D. Port
Country of Origin Mexico
Dead Space 28.3 mL
Filter Efficiency BFE 99.9%
Filter Efficiency VFE 99.9%
Filter Type Hygroscopic
Is_ECAT N
Is_GSA N
Is_VA Y
Latex Free Indicator Not Made with Natural Rubber Latex
Manufacturer McKesson Brand
Manufacturer # 16-6218
McKesson # 1109620
Moisture Output 28.4 mg H2O / L @ VT 500 mL
Port Type Gas Sampling Port
Resistance 2.29 cm H₂O @ 30 LPM
Sterility NonSterile
Style Angled
Trade Agreement Act (TAA) Compliant Yes
UNSPSC Code 42272219
User Adult
Volume 150 to 1000 mL

Frequently asked questions

Does this HME filter provide high-level protection?

Yes, it provides bacterial and viral filtration efficiency exceeding 99.9%, which significantly helps in reducing the risk of contamination in breathing circuits.

Is this suitable for adult patients?

Yes, this device is specifically designed for adult patients with a recommended tidal volume range of 150 mL to 1000 mL.

Does this require an external water source?

No. It is a hygroscopic condensing humidifier that traps the patient’s own moisture, providing effective humidification without the need for external water.

Can I monitor CO2 levels with this unit?

Yes, it features an integrated CO2 gas sampling port, which simplifies your setup by eliminating the need for an additional sampling elbow.

Will this device be difficult to breathe through?

It is engineered with a low-resistance design (2.29 cm H₂O @ 30 LPM) to minimize the work of breathing for the patient.

Are there harmful chemicals in the humidifier?

No. The humidifier is treated with physiologically safe calcium chloride to maximize moisture retention performance without the use of harmful chemicals.

Is this made with natural rubber latex?

No, this product is not made with natural rubber latex, making it a safer option for those with latex sensitivities.

How do I keep track of when to change it?

The housing features a clear ‘CHANGE ON’ label with the initials of the days of the week (S M T W T F S), allowing clinicians to easily mark and track the maintenance schedule.

Is this a sterile product?

This specific HMEF is supplied as non-sterile.

Can this be used for home respiratory therapy?

Yes, it is designed for use in a variety of settings, including hospital, clinical, and home respiratory therapy environments.
