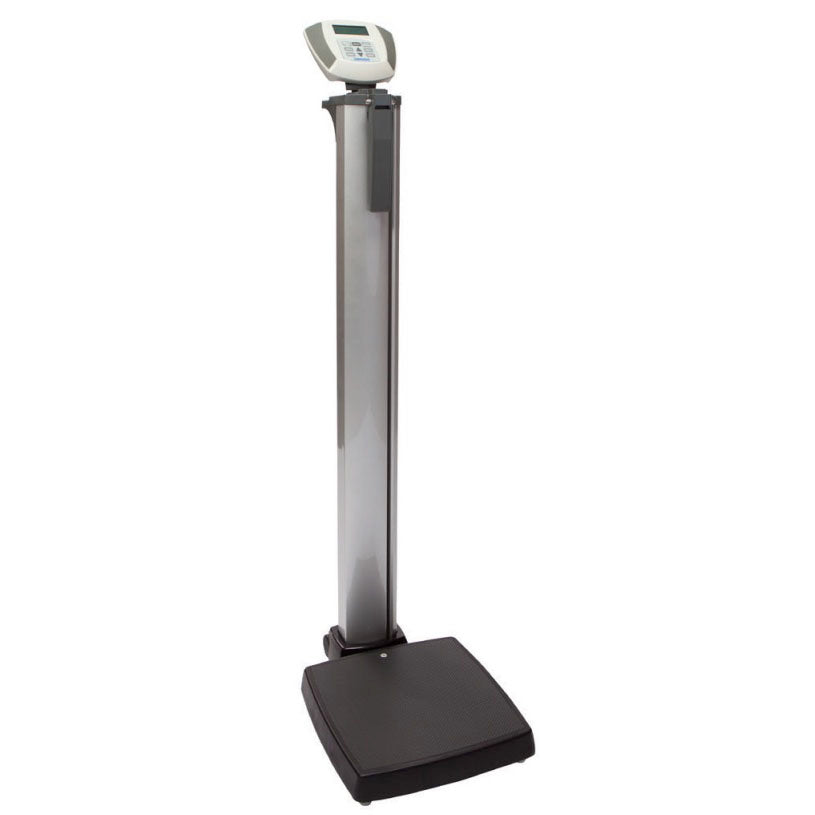

Health o meter 600KL Heavy Duty Eye Level Digital Scale with Integral Digital Height Rod

The Health o meter 600KL is a heavy-duty digital scale built for demanding professional environments. Its substantial capacity ensures accurate measurements for a wide range of patients and reliable clinical data recording.

• Maximum Capacity: 600 lb (272 kg)
• Weighing Resolution: 0.2 lb (0.1 kg)

The Health o meter 600KL is engineered as a heavy-duty device offering substantial measurement capabilities:

• Maximum Weight Capacity: The scale handles up to 600 lb (272 kg), measuring weight with a high resolution of 0.2 lb (0.1 kg).
• Height Measurement Range: The integral digital height rod provides measurements from 23.6 inches (60 cm) up to 88 inches (222 cm), featuring a resolution of 0.1 inch (0.1 cm).

These precise combined measurements enable the scale’s functionality for automated Body Mass Index (BMI) calculation.

Yes, the Health o meter 600KL scale features automatic Body Mass Index (BMI) calculation.

This function streamlines patient assessment by using the precise weight measurement along with the height data gathered by the integral digital height rod.

Additional key functions include:

• LB/KG Conversion/Lock Out: Easily switch between imperial and metric units.
• Zero / Tare: Allows the scale to be zeroed out or account for external items.
• Hold/Release: Keeps the weight displayed after the patient steps off.
• Auto Zero / Auto Off: Enhances operational efficiency and helps conserve power.

The integral digital height rod is a key feature of the 600KL scale, providing the necessary data for calculating Body Mass Index (BMI). It offers highly accurate measurements within the following specifications:

• Measurement Range: 23.6 inches to 88 inches (60 cm to 222 cm).
• Resolution: Measurements are captured with a precision of 0.1 inches (0.1 cm).

The eye-level LCD display on the Health o meter 600KL is designed for optimal workflow and privacy by offering exceptional viewing flexibility.<ul><li>Swivel Range: The display head rotates an impressive 350 degrees.</li><li>Benefit: This extensive rotation allows the clinician to easily view measurements (weight, height, and calculated BMI) from nearly any angle in the room, which streamlines data recording while maintaining patient confidentiality.</li></ul>

Yes, the Health o meter 600KL is connectivity-ready, designed to integrate smoothly with computers and Electronic Medical Record (EMR) software.

It supports data transfer via two primary methods:

• USB Connectivity: A standard USB port is included for direct, wired integration.
• Optional Wireless: The scale is compatible with optional Pelstar wireless technology configurations for cable-free data transmission.

This robust functionality ensures that patient measurements (weight, height, and calculated BMI) can be accurately and rapidly transferred into your EMR system.

Yes, the Health o meter 600KL provides dual power flexibility to suit various clinical settings:

• AC Adapter: The scale can be powered using a 100 - 240 V adapter (#ADPT50). Note that the inclusion of the adapter depends on the specific configuration you select.
• Battery Operation: For maximum mobility or backup power, the unit can alternatively use six C-cell batteries (batteries are not included with the scale).

The Health o meter 600KL is equipped with several advanced functions designed to streamline clinical workflow and ensure accurate data management:

• Automatic BMI Calculation: The scale uses the integrated weight and height measurements to automatically calculate the patient’s Body Mass Index (BMI).
• Measurement Control: Key functions include Hold/Release to lock the measurement reading for easy recording, and Tare which allows subtraction of auxiliary weights (like blankets or supports) to ensure only the patient’s net weight is captured.
• Unit Management: For consistency, the scale offers LB/KG Conversion to switch between imperial and metric units, along with a LB/KG Lock Out feature.
• Connectivity: The scale supports data integration via standard USB and optional Pelstar wireless technology, allowing seamless transfer of measurements to EMR systems or computers. Additional basic functions include Zero, Auto Zero, and Auto Off.

Yes, the scale is equipped with two wheels at the base, making it easier to move within a healthcare facility.

The Health o meter 600KL comes with a 2-year warranty, providing assurance of its quality and durability.
