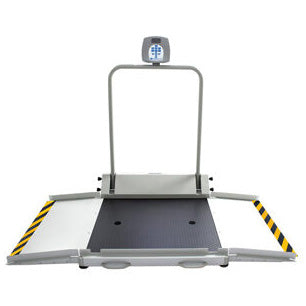

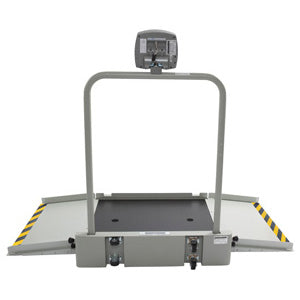

Health o meter 2620KL Digital Wheelchair Dual Ramp Scale

Yes, the Health o meter 2620KL is designed to meet the highest standards for accessibility in medical environments, ensuring federal compliance.

Compliance and Certification:

• It is officially certified to meet the latest Medical Diagnostic Equipment (MDE) standards.
• The scale is also fully ADA-compliant, making it ideal for regulated healthcare settings.

Key Accessibility Features:
The physical design ensures safe and easy patient access:

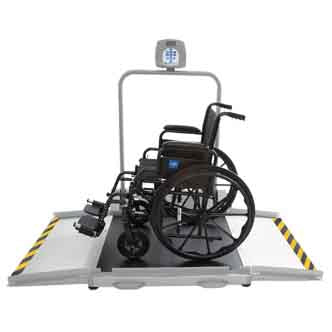

• Platform Size: Features an extra-large surface area (32 inches wide x 40 inches deep) to accommodate most wheelchairs.

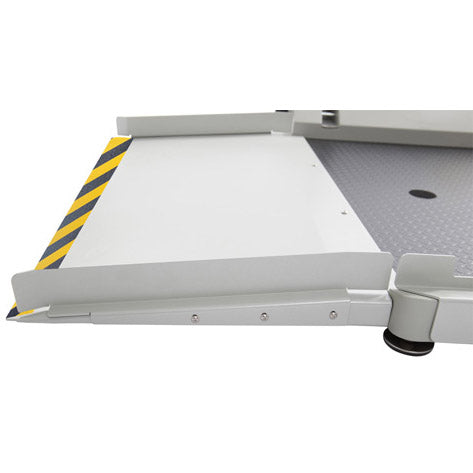

• Dual Ramps: Includes dual ramps engineered with a gentle 1:8 running slope for smooth and safe patient transfer.
• Safety: Integrated 2-inch high edge guards are included on the platform and ramps to enhance security and prevent accidental roll-off.

The Health o meter 2620KL scale offers a high maximum capacity of 1000 lb (454 kg). This robust capacity ensures it can safely and accurately weigh a wide range of patients, accommodating most standard and bariatric wheelchairs.

Yes, the Health o meter 2620KL scale includes BMI calculation as one of its core advanced functionalities. This feature, along with LB/KG conversion, Tare, and Hold/Release functions, helps streamline clinical workflows.

Yes, the Health o meter 2620KL scale offers dual power options for maximum flexibility, supporting both fixed and mobile usage scenarios in healthcare environments.

• AC Power: The scale operates using the included 100-240 V adapter (ADPT30) for continuous power.
• Battery Power: For portability and use where outlets are unavailable, the scale requires six D batteries. Please note that these batteries are not included and must be supplied separately.

Yes, the Health o meter 2620KL is designed for portability and compact storage. The unit can be easily folded when not in use, which significantly reduces its operational footprint.

• Folded Footprint: The scale folds down to a depth of only 9.5 inches (77.25” x 9.5” x 53”), allowing for easy storage in tight clinical environments.
• Mobility: It is equipped with four integrated wheels (including two casters) to facilitate smooth transport, despite its 126 lb (57 kg) weight.

Yes, the Health o meter 2620KL scale is fully equipped for modern data management and includes EMR connectivity.

Data can be transmitted to your Electronic Medical Record (EMR) system through two primary methods:

• Wired Connection: EMR connectivity is standard via the integrated USB port.
• Wireless Connection: The scale also supports optional Pelstar wireless technology for facilities requiring cable-free data transmission.

Yes, the Health o meter 2620KL scale utilizes a modern, High-Contrast color TFT-LCD Screen designed for clear visibility and immediate readings in demanding clinical settings.This display supports several advanced features beyond basic weight measurement:<ul><li>Screen Size: 2.75 inches x 1.5 inches.</li><li>Digit Size: Features large, easy-to-read characters measuring 0.375 inches (10 mm).</li><li>Core Functions: It clearly displays the results for BMI calculation and the current Time/Date.</li></ul>

Yes, the Health o meter 2620KL includes the essential Tare function, which is critical for accurate patient weighing in clinical settings. This function allows the operator to zero out the weight of the wheelchair or supporting accessories, ensuring the reading reflects only the patient’s net body weight.

In addition to Tare, this scale offers an extensive suite of professional functions to optimize your workflow:

• Advanced Calculations: Includes BMI (Body Mass Index) calculation.
• Specialized Modes: Features a Parent/Child weighing mode for safely weighing a child held by an adult.
• Workflow Functions: Provides Hold/Release, Reweigh, Auto Zero, Auto Off, and Time/Date Display.
• Customization: The unique Everlock feature permanently saves customized user settings, ensuring consistent operation and efficiency in busy environments.

Yes, the Health o meter 2620KL is engineered for superior accessibility, safety, and federal compliance.

This scale is fully ADA-compliant and certified to meet the latest Medical Diagnostic Equipment (MDE) standards.

Key features ensuring safe and compliant access include:

• Extra-Large Platform: The spacious platform measures 32” wide x 40” deep, designed to accommodate most standard wheelchairs.
• Dual Ramps: Access is simplified with dual ramps that feature a safe 1:8 running slope for easy and controlled entry and exit.
• Enhanced Security: Integrated 2-inch high edge guards are included on both the platform and ramps to prevent roll-offs and maximize patient security.

Yes, the Health o meter 2620KL features an extra-large platform measuring 32 inches wide x 40 inches deep (1016 mm x 819 mm), designed to comfortably accommodate the majority of wheelchairs. This ensures superior accessibility for patients.
