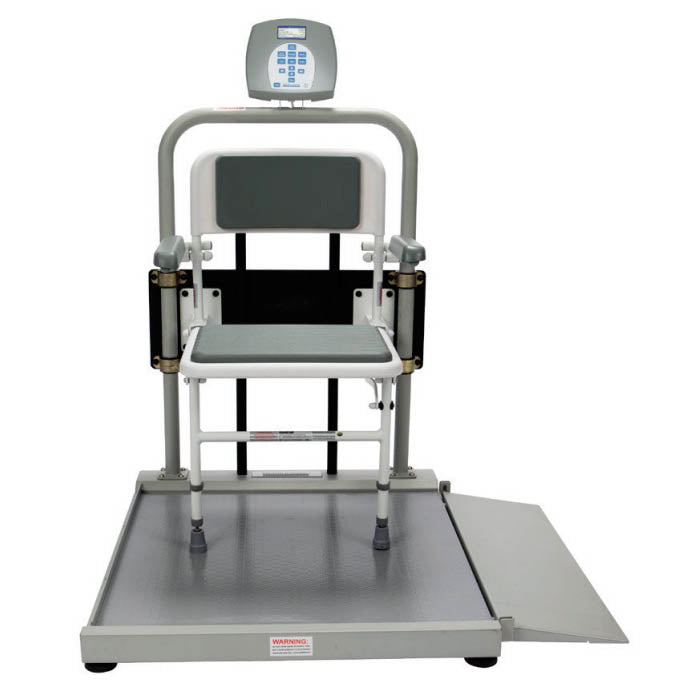

Health o meter 2500 Digital Wheelchair Ramp Scale with Foldaway Seat

The Health o meter 2500 is engineered for high capacity, featuring two distinct maximum weight limits depending on how the scale is used:

• The primary Platform Capacity (for standing patients or those in a wheelchair) is a substantial 1,000 lb (454 kg).
• The integrated Foldaway Seat Capacity is 419 lb (190 kg).

Regardless of the configuration, the scale maintains high measurement precision with a resolution of 0.2 lb (0.1 kg).

Yes, the platform is designed to be spacious and low-profile (2.4” high) to safely and comfortably accommodate patients, whether standing or seated in a wheelchair. The integrated ramp further ensures easy accessibility and optimal patient compliance.

Here are the specific dimensions:

• Platform Size: 29.4” x 28.25” (746 mm x 718 mm)
• Ramp Size: 28.25” x 9.9” (714 mm x 248 mm)

This generous sizing is fundamental to the scale’s versatile weighing modes.

Yes, the Health o meter 2500 is equipped with a modern, high-quality digital interface designed for optimal visibility and user comfort in clinical settings.

Key features of the display include:

• High-Contrast Screen: It utilizes a 1.5” (38 mm) High-Contrast Color TFT-LCD Screen, ensuring measurements are clear and easily readable, even in varied lighting conditions.
• Adjustable Viewing: The display can rotate and pivot, allowing the clinician to quickly adjust the viewing angle for optimal line-of-sight while ensuring patient privacy.
• User Support: The interface includes an on-screen help menu that guides users through essential functions like BMI calculation, Zero, Tare, and Recall features.

Yes, the Health o meter 2500 is designed for maximum operational flexibility and can be powered by either AC or batteries:

• AC Power: The scale operates using the included 100 - 240 V adapter when connected to a standard wall outlet.
• Battery Power: For full portability, allowing use in various locations, the scale requires 6 D batteries (note: batteries are not included with the scale).

Yes, the Health o meter 2500 is designed for seamless data integration into clinical settings and EMR (Electronic Medical Records) systems. The scale features a rotating/pivoting display head and several functions like BMI calculation, Tare, and Recall.

It offers the following professional connectivity features:

• USB Port: A standard wired connection is included for reliable data transfer to computers or other electronic devices.
• Optional Pelstar Wireless Technology: This is available on specific configurations, providing cable-free connectivity for fast and efficient data transmission across your facility.

Yes, the Health o meter 2500 scale is equipped with a comprehensive suite of advanced clinical functions to optimize data accuracy and workflow efficiency. The scale also features a high-contrast color screen with an on-screen help menu to guide users through operations.

Key measurement and data management features include:

• BMI Calculation: Automatically calculates Body Mass Index.
• Zero, Tare, and Pre-Tare: Essential functions for subtracting the weight of wheelchairs or accessories to ensure accurate patient weight measurement.
• Hold/Release: Stabilizes the reading to provide accurate measurement even if the patient is moving.
• Reweigh and Recall: Allows for quick verification of weight changes and retrieval of previous measurements, complete with a Time/Date stamp.
• Connectivity: Includes standard USB and offers optional Pelstar wireless technology for seamless integration with computers and Electronic Medical Records (EMR) systems.

Yes, the Health o meter 2500 is designed with portability in mind. Despite its robust construction and 121 lb (55 kg) unit weight, the scale is equipped with two integrated wheels to ensure easy movement and repositioning within your facility.

Yes, the Health o meter 2500 includes the foldaway seat attachment as a standard feature. This unique design provides maximum versatility for weighing patients who are unable to stand or remain in a wheelchair, enhancing patient compliance and comfort.

The foldaway mechanism allows the seat to be used for dedicated seated weighing and then folded up to provide clear access to the platform for standing patients or those using the integrated ramp with a mobility device.

Seat Specifications

• Capacity: The seat can safely support patients up to 419 lb (190 kg).
• Dimensions: 18” W x 15” D x 18.5” H (457 mm x 381 mm x 470 mm).

Yes, the Health o meter 2500 scale offers versatile connectivity options for seamless integration with your clinical systems and Electronic Medical Records (EMR).

• Wired Connectivity: A standard USB port is included for reliable, direct connection to computers.
• Optional Wireless: Specific configurations of this scale include Pelstar wireless technology, providing a cable-free solution for data transmission.

Yes, the Health o meter 2500 is specifically designed for maximum versatility and patient accessibility, offering three primary modes for accurate weight measurement: * Wheelchair Weighing: Patients can safely roll onto the large platform via the integrated ramp while remaining seated in their wheelchair. The scale supports a high capacity of 1,000 lb (454 kg). * Seated Weighing: A convenient, integrated foldaway seat can be deployed, allowing patients who cannot stand to be weighed comfortably. The seat capacity is 419 lb (190 kg). * Standing Weighing: Ambulatory patients can be weighed directly on the spacious, robust platform (29.4” x 28.25”).This multi-modal approach ensures the scale can meet diverse clinical needs while prioritizing patient comfort.
