Health o meter 2101 Digital Platform Scale

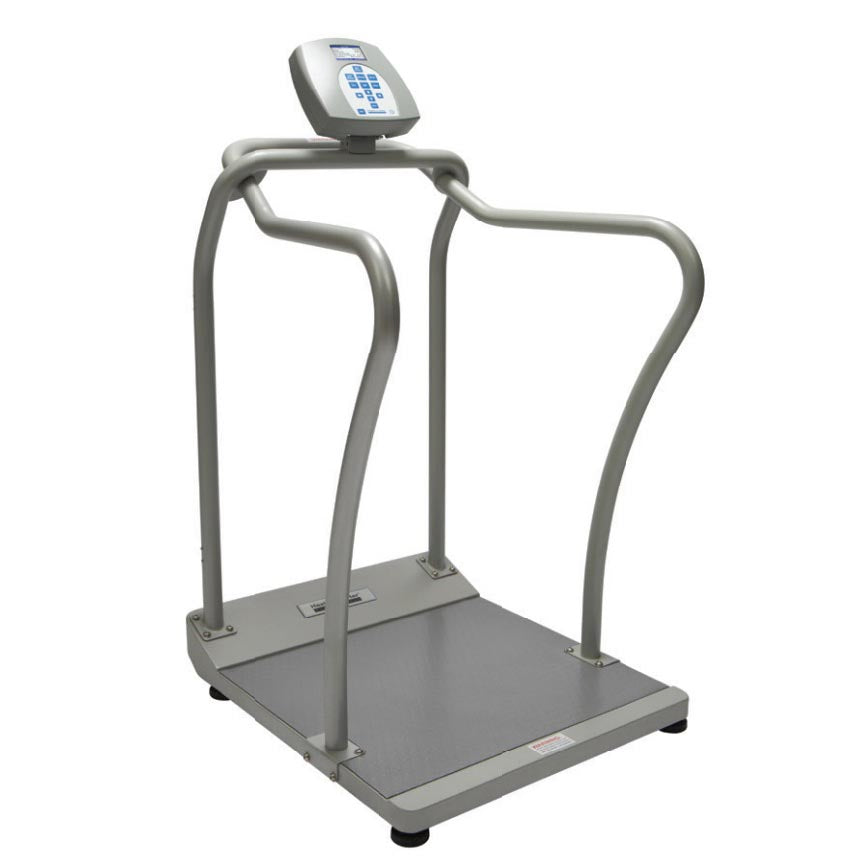

Yes, the Health o meter 2101 is equipped with live handrails designed specifically for patient stability and safety.

This feature ensures:

• Patients have a sturdy support to hold onto during the weighing process.
• The scale accurately calculates the weight even while the patient is holding the rails, maintaining measurement precision.

Yes, the Health o meter 2101 provides modern data transfer capabilities to interface with computers, EMR software, or other devices.

There are two main connectivity options:

• Standard USB: The scale comes equipped with a USB port for direct, wired integration.
• Optional Pelstar Wireless Technology: For maximum flexibility and cable-free data transfer, you can choose a configuration that includes optional Pelstar wireless technology.

The Health o meter 2101 Digital Platform Scale is equipped with a robust suite of integrated functions designed to enhance workflow and ensure accurate patient data collection in professional settings. These features include:

• Body Mass Index (BMI) Calculation: Automatically computes BMI directly on the scale.
• Hold/Release: Locks the displayed weight reading, which is essential for safely and accurately weighing unsteady or mobility-impaired patients.
• Tare, Pre-Tare, and Zero: Allows the user to subtract the weight of accessories, clothing, or known objects for a precise net patient weight.
• Reweigh and Recall: Provides quick weight verification and the ability to retrieve the previous measurement.
• LB/KG Conversion and Lock Out: Easily switches between pounds and kilograms, with a lock feature to secure the preferred unit.
• Everlock: Secures programmed scale settings to prevent unauthorized changes.
• Operational Controls: Includes Auto Zero, Auto Off (with variable timing), Time/Date setting, and an Audible/Mute Sound option.

Yes, the Health o meter 2101 Digital Platform Scale is equipped with the capability to automatically calculate Body Mass Index (BMI).

This function is crucial for comprehensive patient health assessment. The scale features an advanced, high-contrast color TFT-LCD screen where the results are displayed.

Furthermore, the BMI and weight data can be easily transferred and integrated into computer systems or EMR software via standard USB or optional Pelstar wireless technology.

Yes, the Health o meter 2101 features a high-quality, high-contrast display designed for maximum clarity and user convenience in professional clinical settings.

Key features of the display include:

• Type: It utilizes a 1.5 inch (25 mm) High-Contrast Color TFT-LCD Screen, which ensures superior readability in varying light conditions.
• Flexibility: The display head is designed to swivel and pivot. This allows clinicians to adjust the viewing angle for optimal line-of-sight while helping to maintain patient information privacy.
• Functionality: The high-contrast screen facilitates easy access and readability for integrated clinical functions, such as BMI calculation and LB/KG conversions.

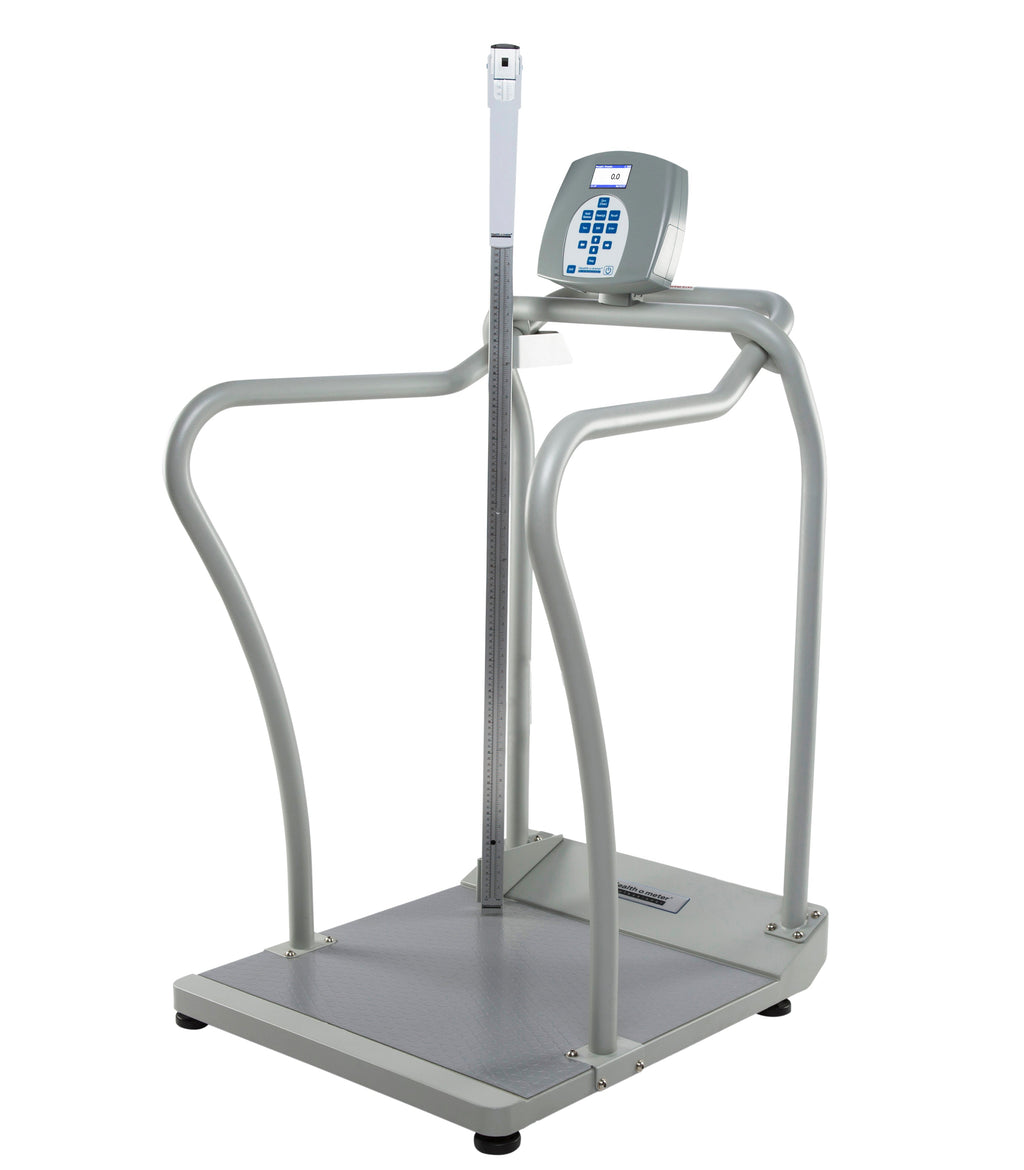

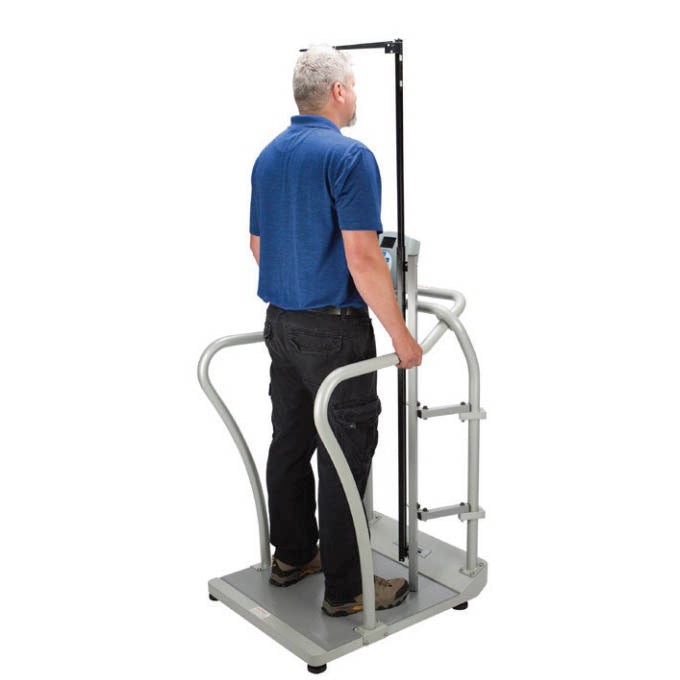

The optional height rod (STROD) provides a wide measuring range suitable for nearly all patients, spanning from 2 inches up to 90 inches (6 cm - 230 cm). It features an easy-slide aluminum construction and provides highly precise measurements with a graduation of 1/16” (1 mm).

The Health o meter 2101 Digital Platform Scale is built for high-capacity medical use, safely accommodating a wide range of patients, including bariatric and mobility-impaired individuals. The maximum weight capacity is substantial:

• 1,000 lb (pounds)
• 454 kg (kilograms)

This robust capacity is delivered with a fine resolution of 0.2 lb (0.1 kg), ensuring high accuracy across the entire weight range.

The Health o meter 2101 is designed with a robust, low-profile platform to ensure patient stability and easy access in clinical environments. The key dimensions are:

• Weighing Platform Size (W x D x H): 26” x 22” x 2.4” (660 mm x 559 mm x 60 mm). The 2.4-inch low height is a key feature for patient comfort and safety.
• Overall Scale Footprint (W x D x H): 31” x 27” x 50” (787 mm x 686 mm x 1270 mm). This overall dimension includes the handrails and the display column.

Yes, the scale offers flexible power options to ensure portability and continuous operation in various clinical environments.

It can be powered by:

• The included 100 - 240 V adapter for use with a standard electrical outlet.
• Six D batteries (not included), allowing the scale to be used efficiently in locations where an immediate electrical outlet is not accessible.

The Health o meter 2101 Digital Platform Scale is specifically engineered for demanding clinical environments. Its robust design, high capacity, and patient-friendly features make it ideally suited for:

• Hospitals and Wards
• Primary Care Offices
• Rehabilitation Centers

This scale is especially beneficial for weighing mobility-challenged or elderly patients, as it prioritizes stability and safety with its live handrails and low platform design for easy access. Its advanced features, including BMI calculation and connectivity (USB, optional wireless), ensure seamless integration with electronic medical records (EMR) systems in busy clinical practices.
