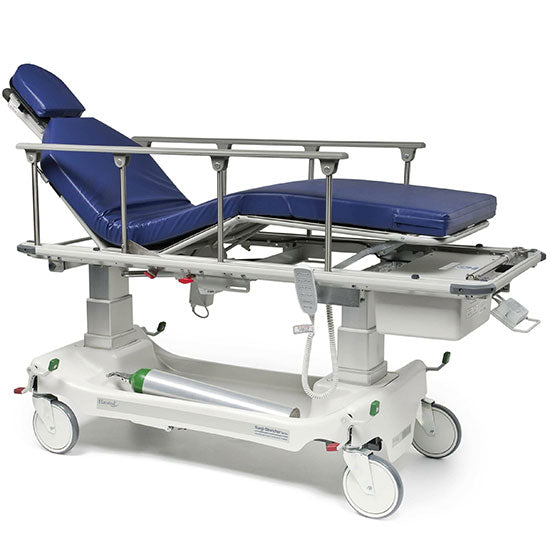

Hausted Mobile Powered Surgi-Stretcher

Hausted Mobile Powered Surgi-Stretcher
Key Features
  • SKU: GMF-5E8EYEST
  • Condition: Factory New
  • Warranty: 5 Years
  • Weight: 440.0 lb
  • Includes a post-op/pre-op head section, three-stage permanently mounted IV pole, O2 tank holder, safety straps, and a mattress pad
  • Two separate hand pendants; one for caregiver and one for patient
  • Backup battery for power outages.

  • Learn more:

Contact The Manufacturer
  • MFR: Graham-Field Ships from Manufacturer
  • MPN: 5E8EYEST
  • Phone: (770) 368-4700
$9,145.63

+ Shipping

Est. Delivery:

Shop with Confidence

Oversized Shipping

+
Return Policy +

Payment Options

+

Price Match

Description

The Hausted Mobile Powered Surgi-Stretcher (#5E8EYEST) includes a post-op/pre-op head section, three-stage permanently mounted IV pole, O2 tank holder, safety straps, and a mattress pad.

Warranties:

  • Frame - 5 Years.
  • Casters - 1 Year.
  • Electrical Components - 1 Year.
  • Hydraulics - 1 Year.
  • Optional Accessories - 1 Year.
  • Patient Weighing System - 1 Year.
  • Pneumatic Gas Springs - 1 Year.
  • Upholstered Pads - 1 Year.
  • Replacement Pads - 90 Days.

The Hausted Mobile Powered Surgi-Stretcher is a powerful, motorized stretcher with an impressive weight capacity of 720 lb (327 kg) when evenly distributed. The height can also be conveniently adjusted from 22 inches to 30 inches. A hand pendant included with the stretcher allows users and caregivers to control the backrest angle, height, and knee-flex positioning. The same headrest also possesses dual operating knobs, which allow precise microscopic movement and adjustment to the perfect position for procedures.

In an emergency, the backrest can drop flat via the release lever. In the event of a power outage or if power sources aren't available, the battery backup can support full operation of the stretcher for transport or procedures for an extended time.

Features

Hausted Mobile Powered Surgi-Stretcher Features

  • Includes a post-op/pre-op head section, three-stage permanently mounted IV pole, O2 tank holder, safety straps, and a mattress pad.
  • Two separate hand pendants, one for the caregiver and one for the patient, to control the height, backrest, and knee-flex positioning.
  • Emergency features include a manual lever for dropping the backrest, and a backup battery for power outages.

Specifications

Hausted Mobile Powered Surgi-Stretcher Specifications

  • Height Range - High: 30" (76 cm).
  • Height Range - Low: 22" (56 cm).
  • Overall Width: 29.75" (75.6 cm).
  • Overall Length: 88.5" (225 cm).
  • Patient Surface Width: 25" (63.5 cm).
  • Patient Surface Length: 81.5" (207 cm).
  • Backrest Degree of Movement: 0° - 80°.
  • Knee Flex Degree of Movement: 0° - 60°.
  • Trendelenburg/Reverse Trendelenburg: 10° (± 2°).
  • Retracto Rail Height: 14" (35.5 cm).
  • Retracto Rail Length: 49" (125 cm).
  • Casters: 8 in Tente (20 cm).
  • Maximum Weight Capacity: 500 lb (227 kg).
  • Mattress Pad Thickness: 3 in (8 cm).

Electrical Specifications

  • Product Classification: 1.
  • Input Voltage: ~120 V/ 60 Hz.
  • Amperage: Max. 4.0A.
  • Duty Cycle: 10% 2 Min in 18 Min.
  • IP Rating: IPX6.
  • Grounding Protection: Type B.

Accessories

Hausted Mobile Powered Surgi-Stretcher Accessories

  • #HSA400700: Surgical Accessory Rail.
  • #H076336: Surgical Accessory Rail (Retracto Rails).
  • #HSA400500: Armboard with 2 inch (5 cm) Pad and 2 Mounting Rails.
  • #HSA080000: Electric Foot Control, Hi/Low.
  • #H0101ST: Contoured Headrest Set (2, 3, 4 in).
  • #HSA063500B: Contoured Headrest, Navy, 4 in (10.2 cm).
  • #HP150830448B: Contoured Headrest, Navy, 3 in (7.60 cm).
  • #HP150830447B: Contoured Headrest, Navy, 2 in (5 cm).
  • #HSA078700: Pre-Op/Post-Op Head Extension – standard width (5E8EYEST and 5D8EYEST).
  • #HSA079000: Pre-Op/Post-Op Head Extension – wide width (5E8EYXST and 5D8EYXST).
  • #H06883600: Footboard w/ Monitor Shelf and Chartholder – standard width (5E8EYEST and 5D8EYEST).
  • #H06884600: Footboard w/ Monitor Shelf and Chartholder – wide width (5E8EYXST and 5D8EYXST).
  • #H00CR6B00: Footboard with Chart Holder – standard width (5E8EYEST and 5D8EYEST).
  • #H0CRW6B00: Footboard with Chart Holder – wide width (5E8EYXST and 5D8EYXST).
  • #H000E1700: Fixed height IV pole, 42 in (107 cm).
  • #H000018: Telescoping IV pole 27 in (68 cm) – 54 in (137 cm).
  • #H000N4500: Monitor Shelf – standard width (5E8EYEST and 5D8EYEST).
  • #H00WN4500: Monitor Shelf – wide width (5E8EYXST and 5D8EYXST).
  • #HSA400600: OxyFlex II with Flexible Support Structure and Adapter, Well Mount.
  • #HSA008000: Disposable OxyFlex II Diffusion Trays (25/case).
  • #H12845000: Vertical Oxygen Tank Holder Assembly.
  • #H06536600: Universal Patient Tray.
  • #H07565600: Push Handles (Foot End Only).
  • #HPD0602: Rail Set, 4 Leg Retracto Rail.
  • #H00001200: Safety Straps with Buckle.
  • #HSA078500: Dual Lateral Wrist Rest.
  • #HSA078600: Full “U” Wrist Rest.
  • #HSP100400: Full “U” Wrist Rest (Large).

Frequently asked questions

What is the maximum weight capacity?

The Hausted Mobile Powered Surgi-Stretcher has a maximum weight capacity of 500 lb (227 kg).

Does the stretcher have any emergency backup features in case of power failure?

Yes, the Hausted Mobile Powered Surgi-Stretcher includes a manual backrest release lever and a backup battery to ensure operation during power outages.

What is the adjustable height range of the stretcher?

The height of the Hausted Mobile Powered Surgi-Stretcher is adjustable from 22 inches (56 cm) to 30 inches (76 cm).

Are the height and positioning adjustments powered?

Yes, the Hausted Mobile Powered Surgi-Stretcher features powered height adjustment, backrest adjustment, and knee-flex positioning, controlled by hand pendants.

What essential components are included with the stretcher?

The Hausted Mobile Powered Surgi-Stretcher comes standard with several crucial components designed for patient safety and procedure efficiency:

  • Motorized Controls: Two separate hand pendants (one for the caregiver, one for the patient) for controlling height, backrest, and knee-flex.
  • Head Support: A specialized post-op/pre-op head section featuring dual operating knobs for precise microscopic movement adjustments.
  • Patient Comfort & Safety: A 3-inch thick mattress pad and integrated safety straps.
  • Procedure Essentials: A three-stage permanently mounted IV pole and an O2 tank holder.
  • Power Reliability: An integrated battery backup system ensures continued operation during power outages.
What are the overall dimensions of the stretcher?

The overall dimensions of the Hausted Mobile Powered Surgi-Stretcher are:

  • Overall Width: 29.75” (75.6 cm)
  • Overall Length: 88.5” (225 cm)
In what type of facilities is this stretcher best used?

The Hausted Mobile Powered Surgi-Stretcher is ideal for use in surgical centers, hospitals, and other healthcare facilities for pre-operative and post-operative patient transport and procedures.

What is the range of motion for the backrest and knee flex adjustments?

The backrest can be adjusted from 0° to 80°, and the knee flex can be adjusted from 0° to 60°.

What type and size of casters does the stretcher have?

The Hausted Mobile Powered Surgi-Stretcher is equipped with 8-inch Tente casters (20 cm) for easy mobility.

How thick is the mattress pad?

The mattress pad included with the Hausted Mobile Powered Surgi-Stretcher is 3 inches (8 cm) thick, providing comfort for patients.
