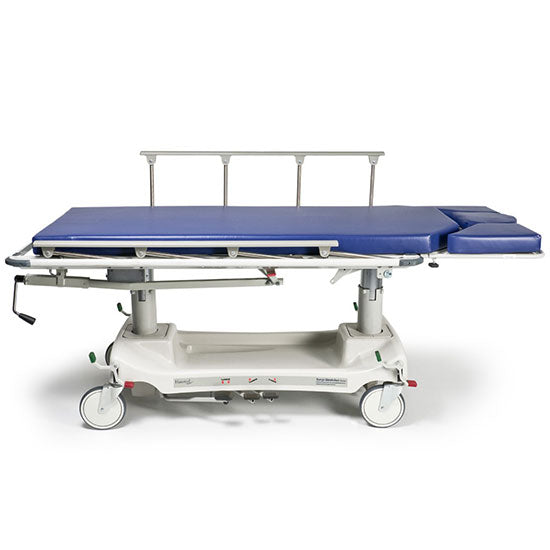

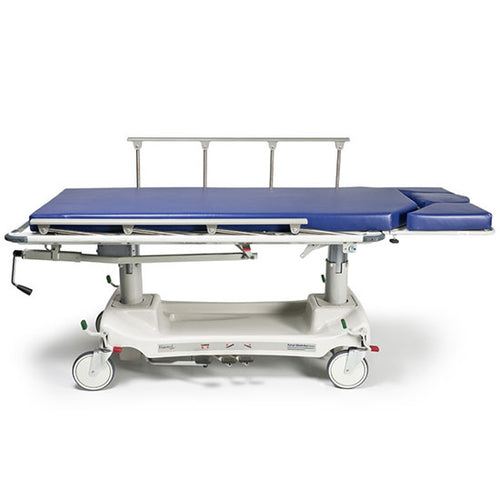

Hausted Mobile Hydraulic Surgi-Stretcher

Hausted Mobile Hydraulic Surgi-Stretcher

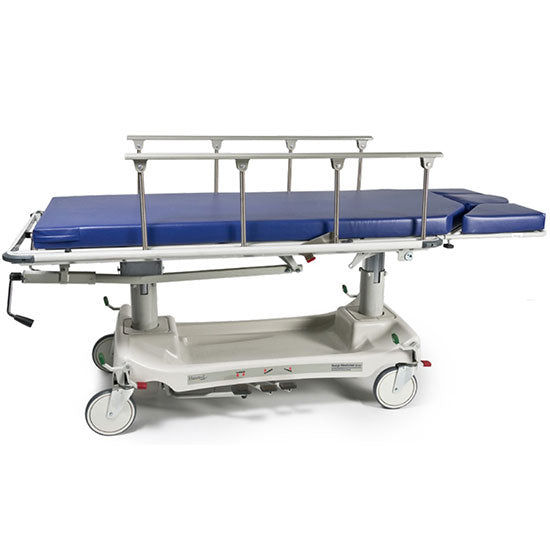

Hausted Mobile Hydraulic Surgi-Stretcher - Rails Up
Hausted Mobile Hydraulic Surgi-Stretcher
Hausted Mobile Hydraulic Surgi-Stretcher - Rails Up
Key Features
  • SKU: GMF-578EYEST
  • Condition: Factory New
  • Warranty: 5 Years
  • Weight: 410.0 lb
  • Includes a post-op/pre-op head section, IV pole, O2 tank holder, safety straps, and mattress pad
  • Dual-side hydraulic foot pedal controls
  • Thermoformed base with lots of storage

  • Learn more:

Contact The Manufacturer
  • MFR: Graham-Field Ships from Manufacturer
  • MPN: 578EYEST
  • Phone: (770) 368-4700
$7,168.95

+ Shipping

Est. Delivery:
<p>Earn%20[points_amount]%20when%20completing%20this%20purchase.</p>

Shop with Confidence

Oversized Shipping

+
Return Policy +

Payment Options

+

Price Match

Description

The Hausted Mobile Hydraulic Surgi-Stretcher (#578EYEST) includes a post-op/pre-op head section, three-stage permanently mounted IV pole, O2 tank holder, safety straps, and a three-inch mattress pad.

Warranties:

  • Frame - 5 Years.
  • Casters - 1 Year.
  • Electrical Components - 1 Year.
  • Hydraulics - 1 Year.
  • Optional Accessories - 1 Year.
  • Patient Weighing System - 1 Year.
  • Pneumatic Gas Springs - 1 Year.
  • Upholstered Pads - 1 Year.
  • Replacement Pads - 90 Days.

The Hausted Mobile Hydraulic Surgi-Stretcher features a dual-side hydraulic foot pedal, which is designed to provide height adjustment and Trendlenburg positioning. In addition, a hand crank at the foot-end of the stretcher can control the leg flex positioning and the backrest. For storage purposes, the thermoformed base has a convenient O2 tank holder and a room for extra equipment.

All four corners of the stretcher possess an easy rolling caster wheel, including a brake and steer caster system. The stainless steel Retracto Side Rails with rail caps are equipped onto the stretcher for quick movement, as well as patient stability. The mattress is thick and comfortable, including on the articulating head section.

Features

Hausted Mobile Hydraulic Surgi-Stretcher Features

  • Includes a post-op/pre-op head section, three-stage IV pole, O2 tank holder, safety straps, and a three-inch mattress pad.
  • Dual-side hydraulic foot pedal controls positioning and height adjustment.
  • All four corners of the stretcher possess an easy rolling caster wheel, with braking and steering.
  • Thermoformed base has a convenient O2 tank holder and plenty of storage.

Specifications

Hausted Mobile Hydraulic Surgi-Stretcher Specifications

  • Height Range - High: 32 in (81 cm).
  • Height Range - Low: 24 in (61 cm).
  • Overall Width: 29.75 in (75.6 cm).
  • Overall Length: 88.5 in (225 cm).
  • Patient Surface Width: 25 in (63.5 cm).
  • Patient Surface Length: 81.5 in (207 cm).
  • Backrest Degree of Movement: 0° - 90°.
  • Knee Flex Degree of Movement: 0° - 75°.
  • Trendelenburg/Reverse Trendelenburg: 16°.
  • Retracto Rail Height: 14 in (35.5 cm).
  • Retracto Rail Length: 49 in (125 cm).
  • Casters: 8 in Tente (20 cm).
  • Maximum Weight Capacity: 500 lb (227 kg).
  • Mattress Pad Thickness: 3 in (8 cm).

Accessories

Hausted Mobile Hydraulic Surgi-Stretcher Accessories

  • #HSA400700: Surgical Accessory Rail.
  • #H076336: Surgical Accessory Rail (Retracto™ Rails).
  • #HSA400500: Armboard with 2 inch (5 cm) Pad and 2 Mounting Rails.
  • #H0101ST: Contoured Headrest Set (2, 3, 4 inches).
  • #HSA063500B: Contoured Headrest, Navy, 4 inches (10.2 cm).
  • #HP150830448B: Contoured Headrest, Navy, 3 inches (7.60 cm).
  • #HP150830447B: Contoured Headrest, Navy, 2 inches (5 cm).
  • #HSA078700: Pre-Op/Post-Op Head Extension – 578EYEST.
  • #H06883600: Footboard w/ Monitor Shelf and Chartholder – 578EYEST.
  • #H00CR6B00: Footboard with Chart Holder – 578EYEST.
  • #H000E1700: Fixed height IV pole, 42 inches (107 cm).
  • #H000018: Telescoping IV pole 27 inches (68 cm) – 54 inches (137 cm).
  • #H000N4500: Monitor Shelf – 578EYEST.
  • #HSA400600: OxyFlex II with Flexible Support Structure and Adapter, Well Mount.
  • #HSA008000: Disposable OxyFlex II Diffusion Trays (25/Case).
  • #H12845000: Vertical Oxygen Tank Holder Assembly.
  • #H06536600: Universal Patient Tray.
  • #H07565600: Push Handles (Foot End Only).
  • #HPD0602: Rail Set, 4 Leg Retracto Rail
  • #H00001200: Safety Straps with Buckle.
  • #HSA078500: Dual Lateral Wrist Rest.
  • #HSA078600: Full “U” Wrist Rest.
  • #HSP100400: Full “U” Wrist Rest (Large).

Frequently asked questions

What accessories are included with the Hausted Surgi-Stretcher?

The Hausted Mobile Hydraulic Surgi-Stretcher includes several essential accessories and components that are permanently mounted or standard with the unit, ensuring comprehensive functionality out of the box:

  • Three-Inch Mattress Pad: A thick, comfortable pad covering the entire patient surface.
  • Post-op/Pre-op Head Section: Designed to accommodate varied patient needs for head and neck positioning.
  • Three-Stage Permanently Mounted IV Pole: Provides secure, adjustable support for IV fluid administration.
  • O2 Tank Holder: Integrated into the thermoformed base for convenient and secure oxygen tank storage.
  • Safety Straps: Essential straps included for ensuring patient stability and security during transport or procedures.
What is the maximum weight capacity of this stretcher?

The maximum weight capacity is 500 lb (227 kg). It’s important not to exceed this weight limit to ensure patient safety and the longevity of the stretcher.

What features maximize patient safety and stability?

The Hausted Mobile Hydraulic Surgi-Stretcher is built for clinical security and operational stability, featuring several essential components:

  • Patient Containment: It includes high stainless steel Retracto Side Rails (14 in / 35.5 cm) with rail caps for quick operation, along with standard safety straps for added security during transport.
  • Controlled Movement: Mobility is ensured by four 8-inch Tente caster wheels equipped with an integrated brake and steer system for secure locking and precise maneuvering.
  • Robust Capacity: The durable frame supports a substantial maximum patient weight capacity of 500 lb (227 kg).
  • Versatile Positioning: For clinical efficiency, the stretcher features dual-side hydraulic foot pedals for height and 16° Trendelenburg control, complemented by a hand crank for precise backrest (0

°–90°) and knee flex (0

°–75°) adjustments.

Is hydraulic positioning controlled by dual foot pedals?

Yes, the stretcher features a robust dual-side hydraulic foot pedal system, enabling medical staff to control positioning from either side of the unit. This mechanism manages the core hydraulic functions:

  • Height Adjustment: The stretcher height can be adjusted from a low of 24 inches (61 cm) to a high of 32 inches (81 cm).
  • Trendelenburg Control: It allows for precise Trendelenburg and Reverse Trendelenburg tilting up to 16 degrees.
In what healthcare settings is this stretcher best suited for?

The Hausted Mobile Hydraulic Surgi-Stretcher is designed for use in pre-operative and post-operative settings. Its hydraulic functionality, mobility, and included accessories make it ideal for patient transport, positioning, and care in these environments.

What are the overall dimensions of the Hausted Mobile Hydraulic Surgi-Stretcher?

The stretcher has the following dimensions:

  • Overall Width: 29.75 inches (75.6 cm)
  • Overall Length: 88.5 inches (225 cm)
  • Height Range: Adjustable from 24 inches (61 cm) to 32 inches (81 cm)
What is the range of motion for the backrest and knee flex adjustments?

The backrest can be adjusted from 0° to 90°, and the knee flex can be adjusted from 0° to 75° using a hand crank. The stretcher also supports Trendelenburg and Reverse Trendelenburg positioning up to 16° using the hydraulic foot pedal.

What are the dimensions of the side rails on the stretcher?

The Retracto Side Rails are 14 inches (35.5 cm) high and 49 inches (125 cm) long, providing substantial protection along the patient surface.

What is the Trendelenburg and Reverse Trendelenburg positioning range for this stretcher?

This stretcher offers Trendelenburg and Reverse Trendelenburg positioning up to 16°.

Is a high-quality mattress pad included?

Yes, the Hausted Mobile Hydraulic Surgi-Stretcher comes standard with a comfortable mattress pad as part of its ready-to-use configuration. This ensures optimal patient support and comfort.

  • The included pad is 3 inches (8 cm) thick.
  • As a standard accessory, the upholstered pad is covered by a 1-year warranty.
