Graham-Field Q-Series Uv Magnifier Hand Held Woods Exam Lamps

Yes, the Graham-Field Q-Series UV Magnifier Hand Held Woods Exam Lamps are UL Listed. This certification confirms that the product meets established safety and reliability standards for electrical components, ensuring safe operation in clinical environments.

The Graham-Field Q-Series UV Magnifier Lamp unit is shipped complete and ready for immediate diagnostic use. The standard handheld models (like Item 2200 and 2203) include:

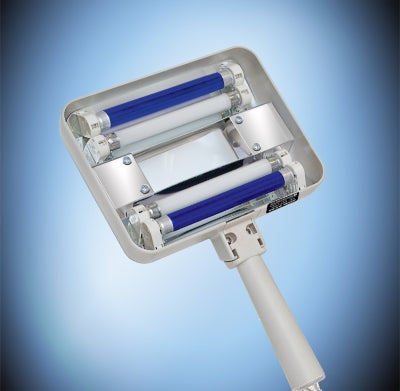

• Main Lamp Unit: Built with durable, impact-resistant polycarbonate housing and an aluminum reflector. It features an integrated 3x magnifier lens (8” focal length).
• Phenolic Handle: Designed for user comfort, featuring a friction-lock swivel joint for flexible positioning.
• Pre-Installed 4-Watt Tubes: The lamp configuration determines the type of tubes included:

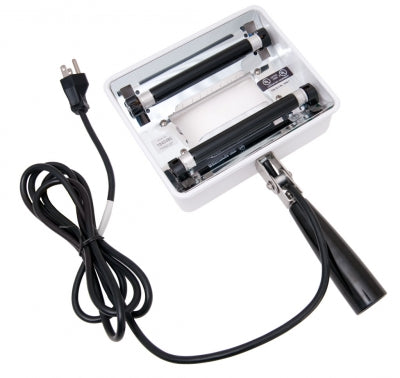

  • UV-A Only Models (e.g., Item 2200): Two Integrally Filtered Long Wave (UVA) tubes.

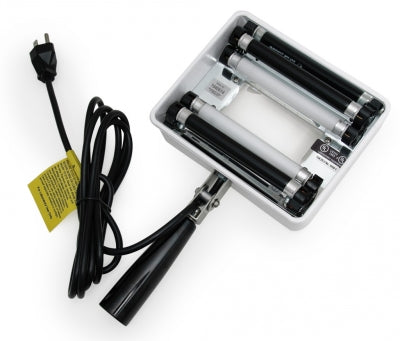

  • UV/White Light Models (e.g., Item 2203): Two UV-A tubes and two standard white light tubes.

Note: One specific variant (Item 2201, not the standard handheld) also includes a Pedestal Stand for stationary use.

Yes, the Q-Series lamp features an integrated lens that provides 3x magnification at an optimal 8-inch focal length.

This level of precision optical performance is essential for:

• Enhancing visual inspection during examinations.
• Facilitating the detection of trace fluorescence.
• Aiding in the diagnosis of various medical conditions, such as skin diseases and corneal scratches.

Yes, the Graham-Field Q-Series is constructed with robust, durable materials optimized for demanding clinical settings, ensuring reliability and effective operation.

Key components and materials include:

• Housing: Made from impact-resistant polycarbonate for superior durability and protection.
• Reflector: Incorporates an aluminum reflector designed to maximize light irradiance.
• Handle: Features a durable, ergonomic phenolic handle with a friction-lock swivel joint, allowing flexible and comfortable positioning during examinations.

Furthermore, the unit is UL Listed and primarily manufactured in the USA (excluding the bulbs), confirming its quality standards.

The Q-Series UV Magnifier Lamps deliver a powerful, focused output essential for effective fluorescence analysis and diagnostic procedures like the Woods Exam.

Key Intensity Details:

• The typical peak UV intensity is 650 μW/cm².
• This intensity is measured at a distance of 6 inches from the light source.
• The unit features an internal aluminum reflector which maximizes the light irradiance for optimal diagnostic efficacy.

Yes, these examination lamps are Made in USA.

This designation applies to the lamp unit itself, while the light bulbs are sourced separately.

Yes, the Graham-Field Q-Series lamps are specifically engineered for demanding clinical environments, prioritizing durability and ease of use.

Key construction features include:

• Impact-Resistant Polycarbonate Housing: Provides robust protection, making it ideal for portable use in settings like physicians’ offices and emergency rooms.
• Aluminum Reflector: Optimizes light irradiance for effective visual analysis.
• Ergonomic Design: Features a phenolic handle with a friction-lock swivel joint for flexible and stable positioning during examinations.
• Quality Certification: The main unit is Made in the USA (bulbs excluded) and is UL Listed, confirming adherence to high manufacturing and safety standards.

Yes, the Graham-Field Q-Series is built with durable, professional-grade materials suitable for demanding clinical environments.

Key structural features ensuring durability and functionality include:

• Housing: Constructed from impact-resistant polycarbonate for exceptional longevity and protection.
• Handle: Features a robust phenolic handle equipped with a friction-lock swivel joint, allowing for comfortable and precise light positioning.
• Reflector: Utilizes an aluminum reflector to effectively maximize UV irradiance during examinations.

The Graham-Field Q-Series UV Magnifier Lamps do include integrated magnification designed for detailed clinical examinations and fluorescence analysis. Its features include:<ul><li>Magnification Power: Provides powerful 3x magnification.</li><li>Focal Length: This magnification is effective at an 8-inch focal length, ensuring clear visualization during close inspection.</ul>This integrated lens is a crucial feature for performing Woods Exams and aiding in the precise diagnosis of various conditions, such as skin diseases or corneal scratches.

Yes, the lamp is designed for optimal comfort and flexibility during examinations.

• Material: It features a durable, ergonomic phenolic handle.
• Adjustability: The handle is connected via a friction-lock swivel joint, allowing the user to easily adjust the position of the lamp head for flexible and precise direction of the UV light and magnifier.
