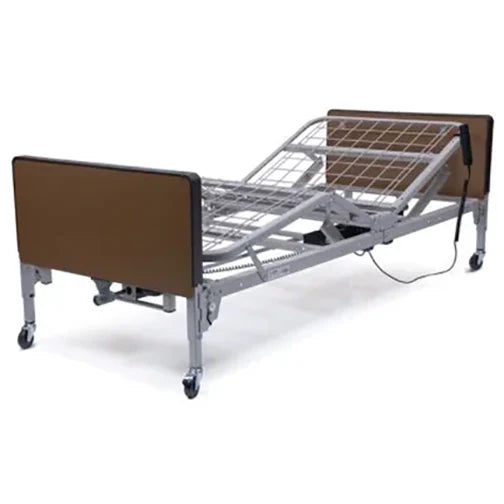

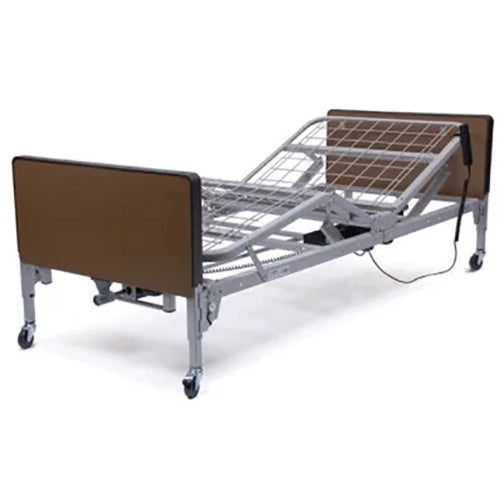

Graham-Field Patriot Full-Electric/Low Homecare Bed

Graham-Field Patriot Full-Electric/Low Homecare Bed - Bed Only
Graham-Field Patriot Full-Electric/Low Homecare Bed - Chrome Rails
Graham-Field Patriot Full-Electric/Low Homecare Bed - Bed Only
Graham-Field Patriot Full-Electric/Low Homecare Bed - Chrome Rails
Key Features
  • SKU: GMF-US0458
  • Condition:
    Condition: Factory New
  • Weight: 1.0 lb

  • Learn more:

Contact The Manufacturer
  • MFR: Graham-Field
    Ships from Manufacturer
  • MPN: US0458
  • Phone: (770) 368-4700
$851.25

+Shipping

Est. Delivery:
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Shop with Confidence

Oversized Shipping

+
Return Policy +

Payment Options

+

Price Match Guarantee

Sales Tax Exemption

+

Dedicated Account Managers

Description

Introducing the new Patriot Full-Electric Homecare Bed with a grid sleep surface!Designed and engineered by the same team who develop the GF Long Term Care beds.Sleep surface is MADE IN THE USA!The single-motor design homecare bed is now available in a full-electric/low version. The Patriot Full-Electric Homecare Bed offers the same features as the Patriot Semi-Electric Homecare Bed with the additional feature of electric height adjustment. This makes it easier for caregivers to raise and lower the bed for patient care and linen changes. The electric height adjustment also enables the patient to easily position the bed for maximum comfort. The Full electric model can be adjusted to be a conventional height homecare bed OR a low bed for better inventory management! Total assembled bed weighs only 178 pounds (bed and motor). Powerful DC motor for effortless height adjustment. Hi-Lo motor comes pre-installed on foot section for easy set-up and disassembly. All functions fully-integrated into convenient handheld pendant. Welded motor-guard protects motor and universal joint from damage during shipment and deliveries. Available with Fiberboard Decorative Walnut Bed-ends or High-impact Plastic Bed-ends. Designed to meet the requirements of applicable HCPCS codes. Maximum patient weight 350 lbs. 450 lb evenly distributed total weight capacity including patient, mattress, rails, and accessories. Height Adjustment: Casters in Low Position:Min. 9.5";, Max. 20"; (at deck level)Casters in Standard Position:Min. 13";, Max. 23.5"; (at deck level) Overall Bed Size: 87"; L x 36"; W. Lift Range: Head - 60°, Knee - 30°. No external pinch points! Slots in frame to ensure proper rail placement. Locking pins secure bed ends to sleep deck.  Attached lanyards prevent loss while moving or storing. Only homecare bed to offer a 4-inch extension kit that can extend either the head, foot, or both head and foot decking.  Bed length will be 84"; with one kit, 88"; with 2 kits. The only homecare bed to offer optional corner mattress retainers. Grid Deck offers the following advantages: Much stronger frame. Better mattress support. No spring sag or bottoming out with heavier patients. Easier to clean. No connecting links or springs to lose. NOTE: Half-Rail A (GF6650A-1 will not work on the Full-Electric Patriot homecare bed when the bed is used as a Low Bed.  You would be unable to lower the rail completely.

Frequently asked questions

What is the maximum patient weight capacity?

The Graham-Field Patriot Homecare Bed offers a dual weight capacity structure:

  • Maximum Patient Weight Capacity: 350 lbs
  • Total Weight Capacity: 450 lbs (This includes the patient, mattress, rails, and accessories, evenly distributed.)
What is the bed's electric height adjustment range?

The Patriot Full-Electric Homecare Bed is designed with dual-height capability, maximizing patient safety and caregiver convenience. The total height adjustment range (measured at the deck level) depends on the caster configuration:

  • Low Bed Configuration: When the casters are set in the low position, the bed deck adjusts from a minimum of 9.5 inches up to a maximum of 20 inches.
  • Standard Bed Configuration: When the casters are set in the standard position, the bed deck adjusts from a minimum of 13 inches up to a maximum of 23.5 inches.
Can I purchase this bed with a mattress?

Yes, the Graham-Field Patriot Homecare Bed is available in various configurations, including bundles that contain a mattress and rails, or as the bed frame only.

Your options for purchasing the bed include:

  • Bed Only: This provides the adjustable frame, motor, and bed ends, allowing you to use your own compatible mattress.
  • Bundled Options: You can select a package that includes the 1633-Reversible Foam Mattress along with the bed frame and motor.

All configurations utilize the durable USA-Made Grid Deck sleep surface. This design ensures superior mattress support, helps prevent spring sag, and is easier to clean than traditional link spring decks.

Does the bed length adjust for taller patients?

Yes, the Graham-Field Patriot bed offers an optional extension system to accommodate taller patients.

While the standard overall frame length is 87 inches, you can use a unique 4-inch extension kit to increase the usable sleep surface length. By extending the head, foot, or both sections, the bed can be configured to extended lengths of 84 inches or 88 inches.

What are the benefits of the durable grid deck?

The durable grid sleep surface on this bed, which is Made in the USA, offers significant performance and maintenance advantages compared to traditional link spring decks:

  • Superior Mattress Support: It provides consistent support across the entire deck and is specifically engineered to resist sag over time.
  • Enhanced Durability: The grid structure is inherently stronger and contributes to the overall resilience of the frame.
  • Simplified Maintenance: It is significantly easier to clean and sanitize compared to older, more complex linked spring designs.

This robust surface contributes to the bed’s high total weight capacity of 450 lbs (evenly distributed).

Is a powerful DC motor used?

Yes, the Patriot Homecare Bed features a powerful, single DC motor designed for smooth and efficient electric height adjustment (Hi-Lo).

  • Control: All bed positioning functions are managed via a convenient, fully integrated handheld pendant.
  • Setup: The Hi-Lo motor comes pre-installed on the foot section for simplified assembly and disassembly.
  • Protection: A welded motor-guard is included to protect the components during transport.
Does this bed have a protective motor-guard?

Yes, the Graham-Field Patriot Full-Electric Homecare Bed includes a welded motor-guard which protects the motor and universal joint from damage during shipping and deliveries, enhancing its durability and safe operation.

Can the length be uniquely adjusted?

Yes, the Graham-Field Patriot is uniquely designed to accommodate different patient heights by offering an optional 4-inch extension kit.

This is the only homecare bed to offer this capability, allowing you to customize the sleeping surface length:

  • Using one 4-inch extension kit adjusts the length to 84 inches.
  • Using two 4-inch extension kits adjusts the length to 88 inches.

The kit can be used to extend the head, the foot, or both sections of the bed.
