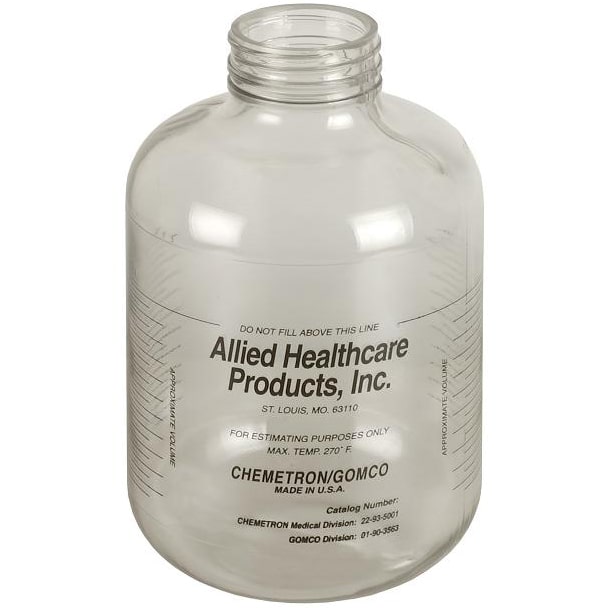

Gomco Polycarbonate Collection Bottle - 2800 ml

Yes, the Gomco Polycarbonate Collection Bottle is designed for maximum visual monitoring.

• Clear Polycarbonate: The material provides optical clarity, allowing for immediate visual inspection of the collected fluid’s level, color, and consistency.
• Estimation Markings: The bottle also includes integrated volume markings (calibrated from 800 ml up to 2800 ml) for estimating fluid volume.

Yes, this Gomco collection bottle is specifically designed for repeated use, making it a cost-effective alternative to disposable systems.

Since it is constructed from durable, clear polycarbonate, it is fully reusable and steam sterilizable (autoclavable).

Key specifications for sterilization are:

• Material: Polycarbonate
• Method: Steam sterilization (Autoclavable)
• Maximum Temperature: 270° F

Yes, the Gomco Polycarbonate Collection Bottle is designed for universal compatibility within clinical settings.

• Piping Systems: It adapts seamlessly to all standard hospital piping systems.
• Aspirator Units: It is compatible with a wide range of Allied Healthcare/Gomco aspirators, including Thoracic Drainage, General Use, Gastric Drainage, and Surgical Aspirators (e.g., models 6020, 3020, 6000, 3910, and others).

The maximum collection capacity of this reusable polycarbonate bottle is 2800 ml (one gallon).

Key details regarding volume:

• The integrated volume markings are calibrated from 800 ml up to 2800 ml for estimation purposes.
• If utilizing the optional metal cap and float assembly, the positive shut-off mechanism interrupts suction near 2600 ml to prevent fluid carryover into the pump.

Yes, the Gomco Polycarbonate Collection Bottle features clear construction and integrated volume markings to aid in visual fluid monitoring.

• Calibration Range: The markings are calibrated from 800 ml up to 2800 ml (the full capacity).
• Purpose: These markings are designed for convenient visual inspection and estimating the collected fluid volume.
• Note: It is essential to remember that these calibrations are for estimation purposes only and should not be used for precise medical measurements.

The Gomco Collection Bottle is primarily made from clear polycarbonate, ensuring durability and allowing for easy visual inspection of collected fluids. Some configurations also include metal components in the cap and float assembly.

The Gomco Polycarbonate Collection Bottle, which holds a substantial 2800 ml (one gallon) capacity, features the following physical dimensions:

• Height: 10.6 inches
• Width (Bottom): 6.4 inches
• Width (Top): 2.7 inches

Its robust design and size are intended for use with various Gomco aspirator models and integration with standard hospital piping systems.

The Gomco Polycarbonate Collection Bottle is offered in two configurations to meet different clinical needs and safety requirements:

• Standard Bottle Only: This option includes the 2800 ml polycarbonate collection vessel by itself. It is reusable, steam sterilizable, and features clear calibration markings for visual monitoring.
• Bottle with Metal Cap and Float Assembly: This configuration adds a specialized cap that incorporates an integrated float assembly. This assembly provides essential positive shut-off protection, automatically interrupting suction flow to prevent fluid overflow and contamination of the aspirator pump or hospital piping system.

Yes, the optional metal cap and float assembly significantly enhances safety. It works by interrupting suction to prevent fluid from carrying over into the pump once the fluid level reaches approximately 2600 ml.

Yes, the Gomco Polycarbonate Collection Bottle is designed for repeated use, making it a cost-effective and sustainable option compared to disposable systems. It is reliably steam sterilizable (autoclavable).

Key sterilization specifications:

• Method: Steam sterilization (Autoclaving)
• Maximum Temperature: The durable polycarbonate material can withstand temperatures up to 270° F.
