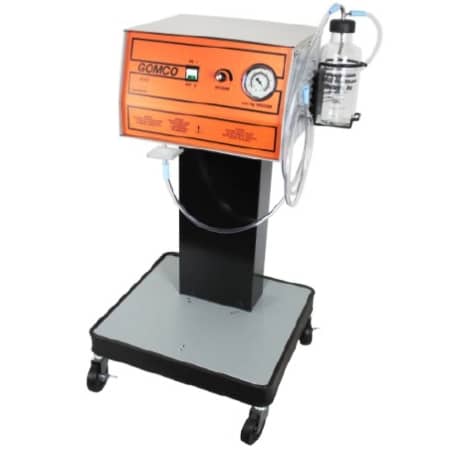

Gomco Model 3020 General Use Aspirator

The Gomco Model 3020 General Use Aspirator includes the Disposable Suction Tubing (#01-90-2000) kit (one 18" and one 72" tube), (3x) Disposable Hydrophobic/Bacteria Filters (#01-90-3100), and your choice of 600 ml Glass Collection Bottle (#01-90-2454) or 1100 ml Disposable Collection Canister (#01-90-3695).

Warranty:

• Certified Refurbished: 90 Days - Parts and Labor.
• Factory New: 1 Year - Free from Material Defects in Material and Workmanship.

The 3020 generates up to -559 mm Hg of vacuum pressure and a 26 lpm flow rate at open flow. This AC-powered aspirator comes with a 600 ml or 1100 ml collection unit, which is ideal for clinics.

Gomco Model 3020 General Use Aspirator Features

• Maintenance-free and oil-free diaphragm pump ensures maximum reliability.
• Stand includes 3" non-marking casters and convenient storage for a 6' hospital grade electrical cord.
• Easy-to-store and transport compact design with a flat chemical resistant stainless steel top.
• Disposable hydrophobic bacteria filter helps prevent fluid and aerosol contamination.

Gomco Model 3020 General Use Aspirator Specifications

• Vacuum Range: -25 to -559 mm Hg.
• Flow Rate: 26 lpm at open flow.
• Horsepower: 1/8.
• Sound Level: Less than 52 dBA.
• Pump Type: Oil-less diaphragm.
• Electrical Cord: 6' hospital grade.
• Dimensions: 17" (D) x 18" (W) x 33" (H) (43 cm x 46 cm x 84 cm).
• Weight: 52 lb (24 kg).
• UL/ETL Listed: Yes.
• Regulatory Approvals: FDA, HC.

Gomco Model 3020 General Use Aspirator Configurations

• #MFI-AHC-01-62-3020: Certified Refurbished - 115 V / 60 Hz - with 600 ml Glass Bottle.
• #01-62-3020: Factory New - 115 V / 60 Hz - with 600 ml Glass Bottle.
• #01-62-3021: Factory New - 115 V / 60 Hz - with 1100 ml Disposable Canister.
• #01-63-3020: Factory New - 220 V / 50 Hz - with 600 ml Glass Bottle.

Gomco Model 3020 General Use Aspirator Accessories

The following accessories are compatible and commonly purchased with the Model 3020 General Use Aspirator:

• #01-90-2000: Disposable Suction Tubing.
• #01-90-2454: Glass Collection Bottle - 600 ml - With Rubber Cap and Tube Assembly.
• #01-90-3100: Disposable Hydrophobic/Bacteria Filter - 1/8" NPT x 1/4" hose barb.
• #01-90-3694: Polycarbonate Collection Bottle - 2800 ml with Metal Cap and Float Assembly.
• Disposable Collection Canister:
  • #01-90-3695: 1100 ml (12/Case).
  • #01-90-3712: 2100 ml (10/Case).

Gomco Model 3020 General Use Aspirator Literature

Gomco Suction Equipment Brochure
