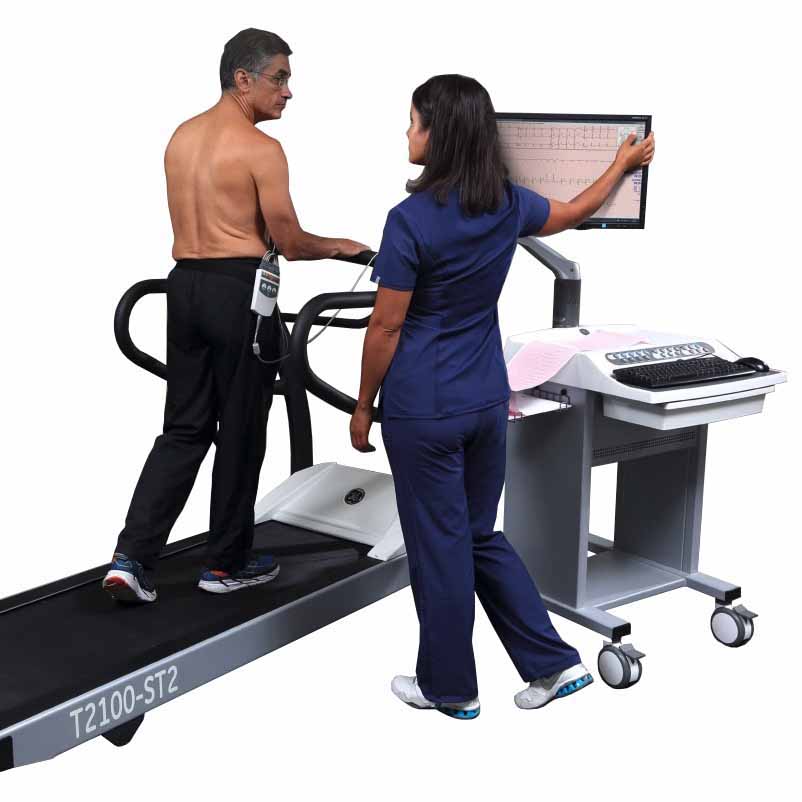

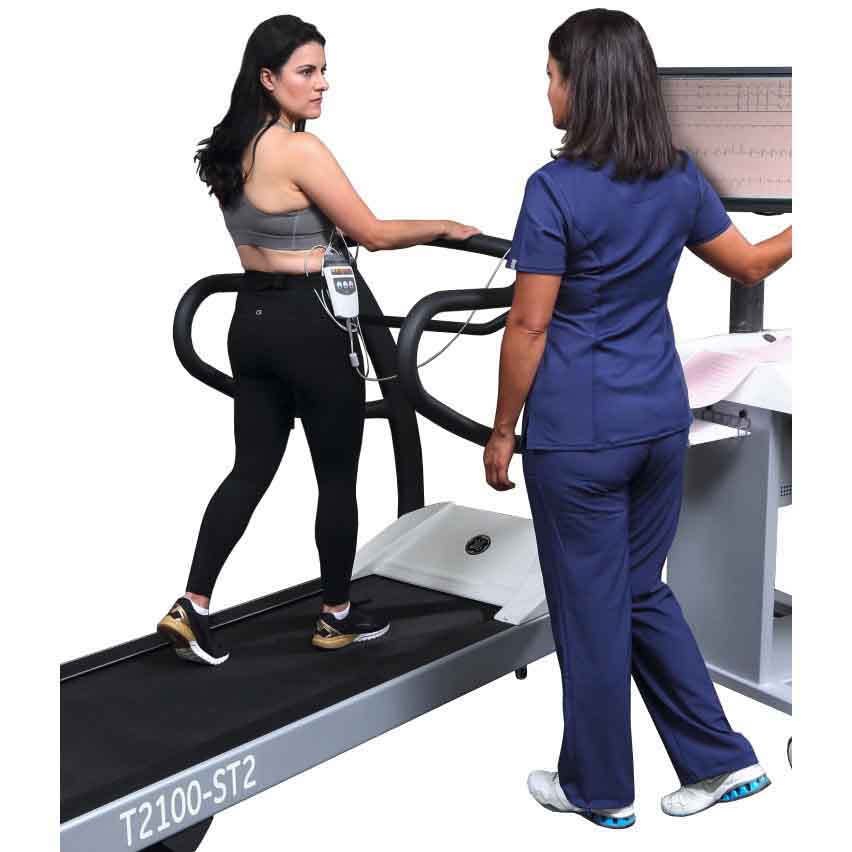

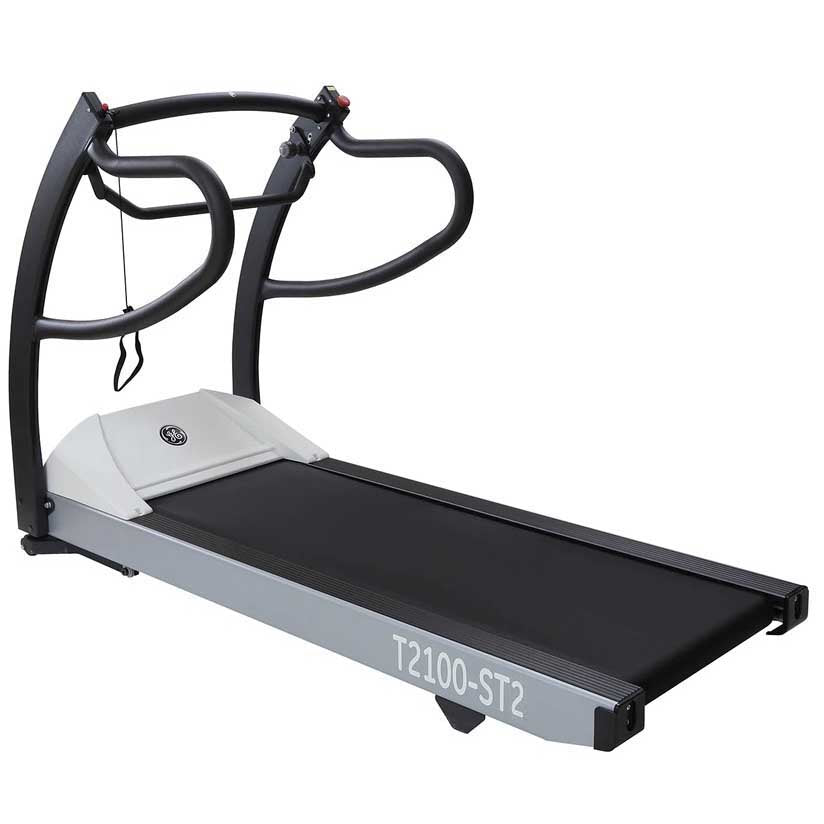

GE T2100 Stress Test Treadmill

GE T2100 Stress Test Treadmill Features

• Smooth, quiet, linear actuator elevation system.
• Low-to-the-floor, cushioned deck for patient comfort and safety.
• All steel chassis with powder coat finish.
• Patented MasterTrack belt alignment system eliminates off-center running belts.
• Exceptionally accurate, self-calibrating speed and elevation.
• Prominent emergency stop button and patient safety tether can be installed on either the left or right treadmill handle.
• Dual comparative speed sensors.
• Auto runaway shutdown.
• Auto communication loss shutdown.
• Manual twist lock Emergency Stop button.
• Manual Stop Tether.
• Braking system for safe patient off-loading.
• Fire-rated motor pan hood enclosure.

GE T2100 Stress Test Treadmill Specifications

• Treadmill Net Weight: 425 lb (193 kg).
• Patient Weight Capacity: 500 lb (227 kg).
• Walking Area: 18" x 60" (45.7 cm x 152.4 cm).
• Floor Space Required: 32" x 154" (81 cm x 154 cm).
• Ceiling Height Required: 106" (270 cm).
• Walking Surface Height: 10.2" (26 cm).
• Handrail Height Above Walking Surface:
  • Front: 40" (101.6 cm).
  • Side: Maximum 25" (88.9 cm) at the front descending at a 5 degree angle to 32" (81.3 cm).
• Belt Motor: 2.24 kW (3 hp).
• Elevation Motor: 0.1 kW (0.13 hp).
• Speed Range: 0.1 to 15 mph (0.2 to 24 km/h) self-calibrating and adjustable in 0.1 mph (0.1 km/h) increments.
• Incline Range: 0 to 25%, 0.5% incremental movements, self-calibrating.
• Drive System: Heavy-duty 6-peak hp. brushless, DC servo motor.
• Power Requirements: 110 - 120 VAC, 1-phase, 60 Hz, 20-amp power supply. Must have a dedicated 20A service.
• Communication Ports: RS232 Female Serial port; USB 1.0 "B" port.
• Operating Temperature: 4.5 to +38 degrees C (+40 to +85 degrees F).
• Storage Temperature: -40 to +70 degrees C (-40 to +158 degrees F).
• Operating and Storage Relative Humidity: 10% to 90%, non-condensing.
• Altitude: -50 to 5,280 feet.

GE T2100 Stress Test Treadmill Voltages

• #1092405-001-513929: 110 V.
• #1092405-001-514787: 220 V.

GE T2100 Stress Test Treadmill Literature

GE T2100 Stress Test Treadmill Operator's Manual

GE T2100 Stress Test Treadmill Service Manual

GE T2100 Stress Test Treadmill Brochure
