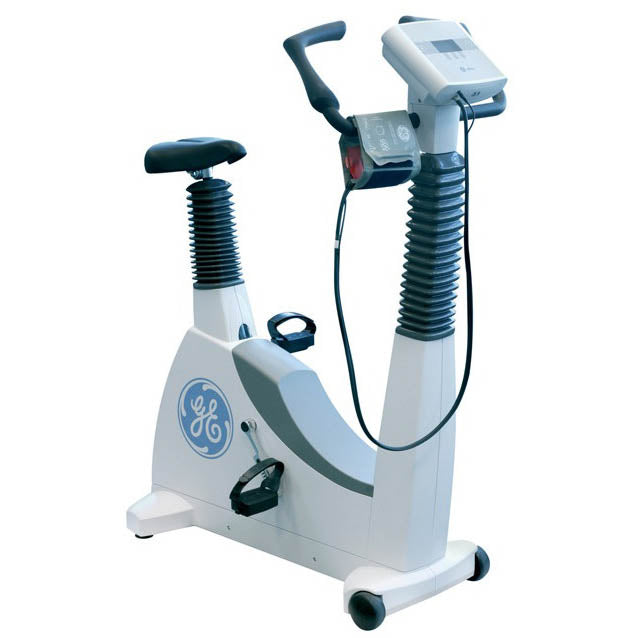

GE eBike Basic Ergometer

The PC Control Panel is essential for operating the ergometer and provides significant functional enhancements for clinical testing, including:

• Programmability: It allows for fully programmable stress-testing protocols, featuring 10 user-configurable programs and 5 standard set graduated programs (such as WHO and Hollman).
• Control and Interface: It enables the ergometer to be controlled via an ECG writer or PC-ECG system.
• Integration: The panel includes digital and analog interfaces, ensuring seamless integration with GE Healthcare stress-testing systems.
• Monitoring: It provides a real-time display of key operational values during the procedure.

Yes, the GE eBike Basic Ergometer ensures highly precise and reliable load control for clinical applications.

• Accuracy Standard: Load accuracy complies with the rigorous DIN VDE 0750-0238 standards, ensuring reliable diagnostic data.
• Brake System: Precision is achieved using a sophisticated, computer-controlled eddy current brake system with integrated torque measurement.
• Load Control: The load is RPM-independent and can be set continuously variable from 6 to 999 watts, guaranteeing consistent resistance regardless of the patient’s pedaling speed.

Yes, the GE eBike Basic Ergometer is specifically engineered for patient comfort and accessibility during stress-echo procedures. Its ergonomic design ensures steady and comfortable patient positioning for a wide range of users.

Key features focused on ease of use and comfort include:

• Optimal Positioning: Accommodates patient heights from 47” up to 83” (120 cm - 210 cm).
• Easy Access: Designed to facilitate easy mounting and dismounting, which is particularly important for patients with restricted movement.
• Full Adjustability: Features continuously variable seat height adjustment and handlebars that can tilt through a 360-degree rigid steering column, ensuring an optimal seating position for almost all body sizes.

The GE eBike Basic Ergometer uses a sophisticated computer-controlled eddy current brake system with torque measurement. This system is crucial because it enables:

• Precise Load Control: Resistance is delivered consistently between 6 and 999 watts, independent of the patient’s pedaling speed (RPM-independent).
• High Accuracy: The load accuracy complies strictly with DIN VDE 0750-0238 standards, ensuring reliable clinical data for stress testing.

The GE eBike Basic Ergometer provides a precise, computer-controlled load range from 6 to 999 watts.

A significant feature is the revolutions per minute (RPM)-independent load control. This means the resistance applied remains constant regardless of the patient’s pedaling speed (within the 30 to 130 RPM range), ensuring highly consistent and reliable diagnostic conditions. The load accuracy also complies with DIN VDE 0750-0238 standards.

The GE eBike Basic Ergometer is designed to accommodate a wide range of patients, featuring continuous seat height adjustment for optimal positioning. It supports:

• Standard Height Range: 47 inches (120 cm) up to 83 inches (210 cm).
• Optional Pediatric Use: The unit can optionally accommodate a minimum pediatric height of 43 inches (110 cm).

It is also built to support a maximum patient weight of 352 lb (160 kg).

The GE eBike Basic Ergometer is built with robust construction and supports a maximum patient weight capacity of 352 lb (160 kg).

Yes, the handlebars on the GE eBike Basic Ergometer are adjustable to ensure optimal patient positioning and comfort.

They can be tilted through 360 degrees via a rigid steering column. This adjustment flexibility supports the ergometer’s ergonomic design, which is engineered to accommodate almost all body sizes and facilitate steady patient positioning during stress-echo procedures.

The GE eBike Basic Ergometer provides flexible options for stress testing, fully controllable via the included PC Control Panel. Programs include:

• Programmable Protocols: 10 user-configurable protocols are available for tailored testing.
• Set Graduated Programs: 5 standard programs are included, such as the WHO and Hollman protocols.
• Manual Setting: A standard manual load setting is available for real-time control.

Yes, the GE eBike Basic Ergometer features RPM-independent load control, meaning the resistance remains consistent regardless of how fast or slow the patient is pedaling. This ensures accurate and reliable stress-testing results.
