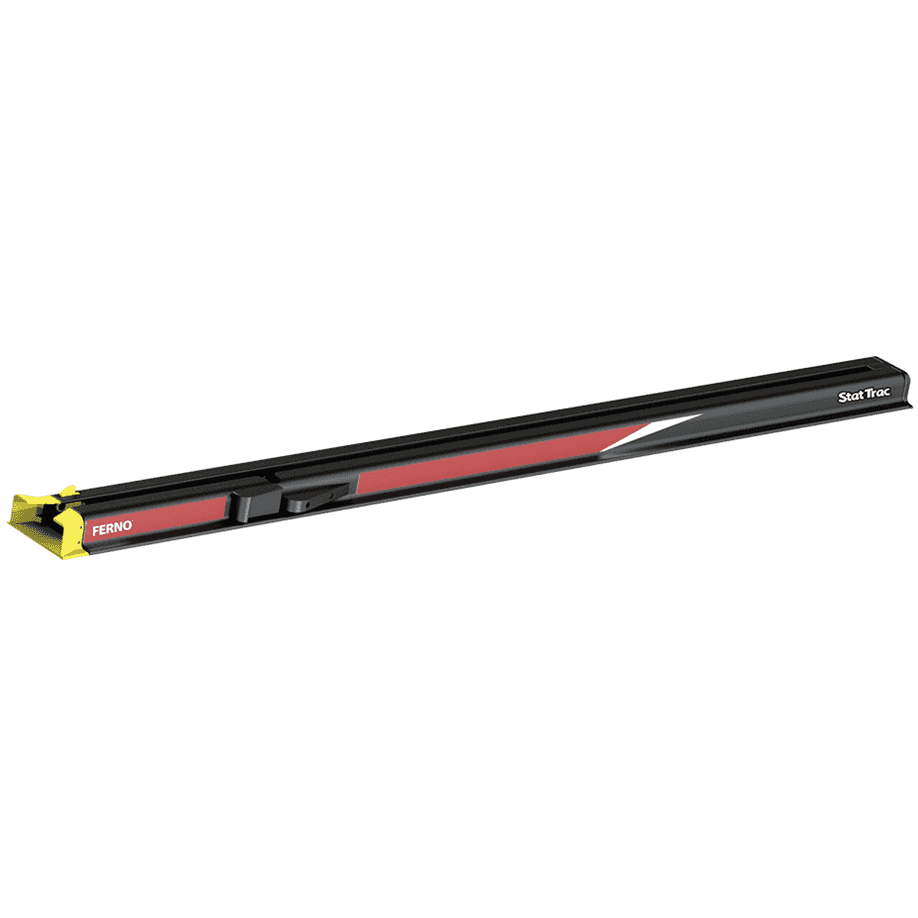

Ferno 185 Series StatTrac Cot Fastening System

Ferno 185 Series StatTrac Cot Fastening System

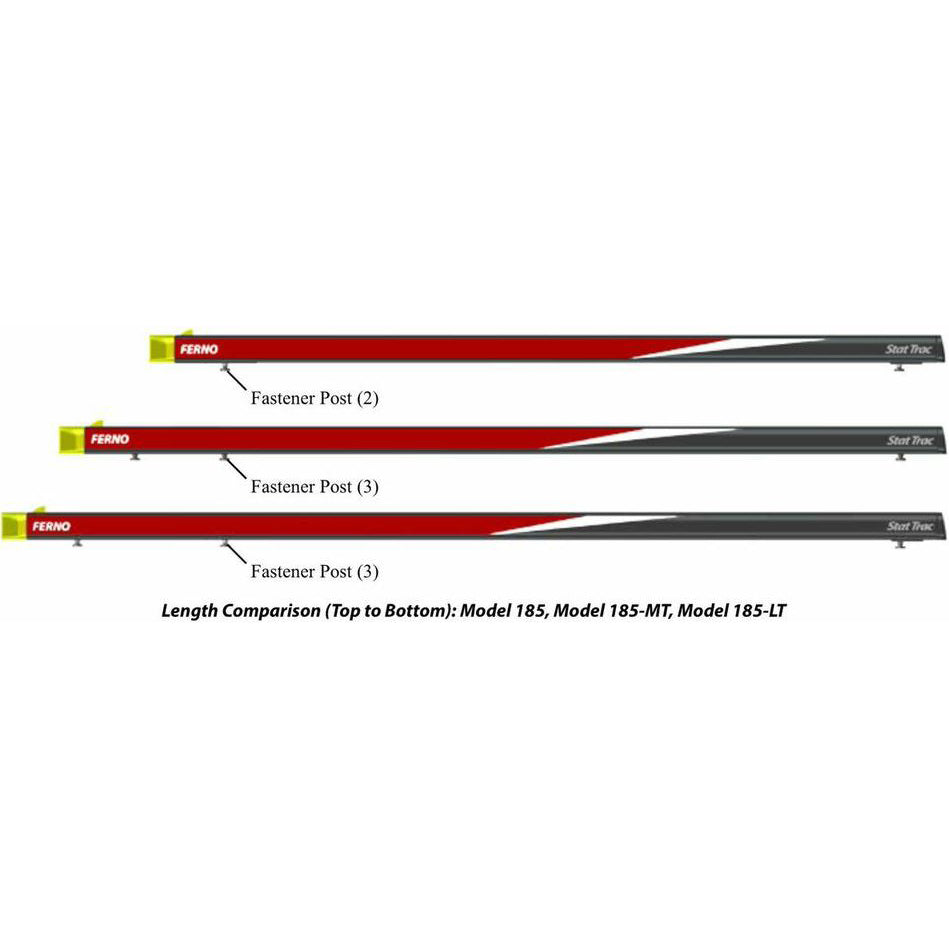

Ferno 185 Series StatTrac Cot Fastening System - Length Options

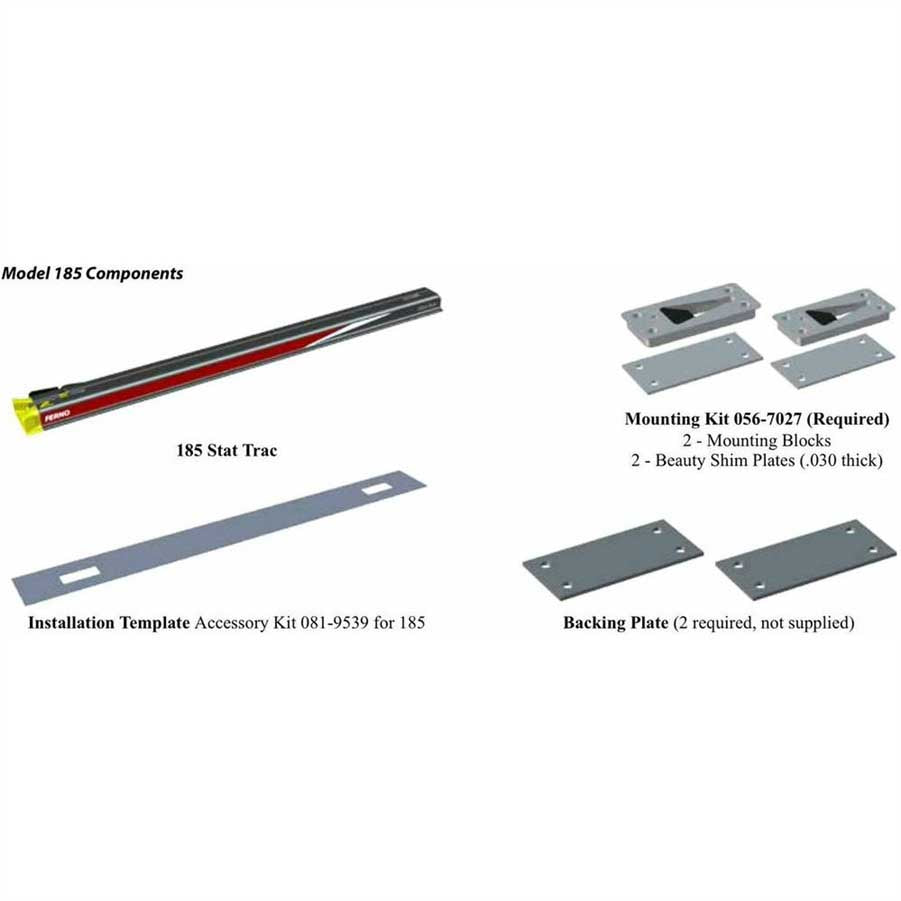

Ferno 185 Series StatTrac Cot Fastening System Components
Ferno 185 Series StatTrac Cot Fastening System
Ferno 185 Series StatTrac Cot Fastening System - Length Options
Ferno 185 Series StatTrac Cot Fastening System Components
Key Features
  • SKU: MFI-FNO-0567038
  • Condition:
    Condition: Certified Refurbished
  • Warranty:
    Warranty: 90 Days
  • Weight: 135.0 lb
  • Allows straight-in cot loading without drift or steering
  • Convenient single-hand release unlocks the cot from the Stat Trac
  • Impact-resistant aluminum and easy to clean
  • Includes head-end and foot-end, dual-locking safety mechanism

  • Learn more:

Contact The Manufacturer
  • MFR: Ferno
    Ships from MFI Medical
  • Phone: (877) 733-0911
$795.00 $715.50

+Shipping

Only 2 In Stock

Est. Delivery:
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Shop with Confidence

Oversized Shipping

+
Return Policy +

Payment Options

+

Price Match Guarantee

Sales Tax Exemption

+

Dedicated Account Managers

Description

The Ferno 185 Series StatTrac Cot Fastening System is designed to secure a Ferno cot or transporter inside a ground-based ambulance. Available in certified refurbished or factory new models.

Warranty: 90 Days Limited - Free from Defects in Material and Workmanship.

The StatTrac is compatible with the POWERFLExx StatTrac and 35-XST PROFlexX ambulance cots. It's a straight-in-track design that eliminates cot drift and the need to steer the cot in, minimizing operator strain on angled surfaces. A single-hand release and wide-angle entrance guide provide quick and easy cot loading.

Options are available to get just the StatTrac Fastener Channel or the whole StatTrac Cot Fastening System kit which includes the mounting blocks.

Features

Ferno 185 Series StatTrac Cot Fastening System Features

  • Accommodates extreme loading and unloading approach angles.
  • Track loading allows straight-in cot loading without cot drift or need to steer.
  • Safety stop holds cot secure inside ambulance while operators unlock the undercarriage during the loading and unloading.
  • Simple single-hand cot release unlocks the cot from the Stat Trac.
  • Protects your crews and patients in the event of an accident.
  • Head-end and foot-end, dual-locking safety mechanism ensures a secure and comfortable ride for the patient.
  • Heavy-duty aluminum shell is impact resistant and easy to clean.
  • Easy removal for cleaning.
  • Adjustable for side or center positioning in an ambulance, making it accessible from bench seats or captain's chairs.
  • Compliance: The StatTrac has been designed to meet international test standards to increase safety for you and your patient:
    • SAE J3027.
    • NFPA-1917.
    • KKK-A-1822.
    • CAAS GVS v1.0.
  • Integrated Charging System (ICS) (optional): Eliminates the need to carry extra batteries and begins charging the cot as soon as it's locked in the StatTrac.

Specifications

Ferno 185 Series StatTrac Cot Fastening System Specifications

  • Height: 3" (76 mm).
  • Width: 8" (203 mm).
  • Model 185:
    • Length: 86" (2184 mm).
    • Weight: 55 lb (24.9 kg).
  • Model 185-91:
    • Length: 91" (2311 mm).
    • Weight: 57 lb (25.9 kg).
  • Model 185-MT:
    • Length: 96" (2438 mm).
    • Weight: 61 lb (27.7 kg).
  • Model 185-LT:
    • Length: 103" (2616 mm).
    • Weight: 65 lb (29.5 kg).
  • Shipping Dimensions: 104" x 9" x 5".

Configurations

Ferno 185 Series StatTrac Cot Fastening System Configurations

  • #MFI-FNO-0567025: Certified Refurbished - Short Trac (86") Fastener Channel.
  • #MFI-FNO-0567063: Certified Refurbished - 185-91 (91") Fastener Channel.
  • #MFI-FNO-0567038: Certified Refurbished - Medium Trac (96") Fastener Channel.
  • #MFI-FNO-0567032: Certified Refurbished - Long Trac (103") Fastener Channel.
  • #0567025: Factory New - Short Trac (86") Fastener Channel.
  • #000185ST: Factory New - Short Trac (86") Fastener Channel with Mounting Blocks Kit.
  • #0567063: Factory New - 185-91 (91") Fastener Channel.
  • #000185M91: Factory New - 185-91 (91") Fastener Channel with Mounting Blocks Kit.
  • #000185B91: Factory New - 185-91 (91") Fastener Channel with Mounting Blocks Kit and Beauty Ring.
  • #0567038: Factory New - Medium Trac (96") Fastener Channel.
  • #000185MT: Factory New - Medium Trac (96") Fastener Channel with Mounting Blocks Kit.
  • #0567032: Factory New - Long Trac (103") Fastener Channel.
  • #000185LT: Factory New - Long Trac (103") Fastener Channel with Mounting Blocks Kit.

Media and Literature

Frequently asked questions

Is the fastening system compliant with all safety standards?

Yes, the Ferno 185 Series StatTrac Cot Fastening System is engineered to meet major national and international standards, ensuring secure patient transport and operational safety. This compliance is critical for ground-based ambulance applications.

The system meets the following standards:

  • SAE J3027
  • NFPA-1917
  • KKK-A-1822
  • CAAS GVS v1.0

Security is further enhanced by its robust design, which features a heavy-duty, impact-resistant aluminum shell and an advanced dual-locking safety mechanism at both the head and foot ends.

Does the StatTrac system feature dual-locking security?

Yes, the Ferno 185 Series StatTrac system incorporates a robust dual-locking safety mechanism to ensure maximum security during transport.

Key features of this locking system include:

  • Secure Anchorage: The system locks the cot at both the head-end and foot-end, providing a secure anchor point for a safe patient ride.
  • Enhanced Safety: This mechanism is essential for crew and patient protection, particularly in the event of sudden stops or accidents.
  • Compliance: The system adheres to major international safety standards, including SAE J3027, NFPA-1917, KKK-A-1822, and CAAS GVS v1.0.
Is the fastening system made of heavy-duty aluminum?

Yes, the Ferno 185 StatTrac fastening system is constructed from a heavy-duty, impact-resistant aluminum shell.

This robust material is designed for high durability and resilience in emergency medical environments. A key benefit is that the aluminum shell is also simple to clean and maintain.

Is cot removal quick and simple?

Yes, the Ferno StatTrac system is designed for rapid operation and quick cot removal. It features a simple single-hand cot release functionality, allowing crews to quickly unlock and disengage the cot from the track, which streamlines patient transfer and minimizes operator strain.

Which Ferno cots are compatible with this system?

The Ferno 185 Series StatTrac is engineered to securely anchor Ferno cots and transporters within ground-based ambulances. It is specifically compatible with the following models:

  • POWERFLExx StatTrac ambulance cot
  • 35-XST PROFlexX ambulance cot

This system provides enhanced operational safety and ease of use:

  • Straight-In Loading: The design allows for straight-in cot entry, eliminating drift and the need for steering, which reduces operator strain.
  • Dual-Locking Mechanism: A robust, head-end and foot-end dual-locking safety mechanism ensures maximum cot security during transport.
  • Quick Release: The cot can be efficiently unlocked using a simple single-hand cot release.

It is also designed to comply with major international safety standards, including SAE J3027 and NFPA-1917.

What are the available StatTrac lengths?

The Ferno 185 Series StatTrac Cot Fastening System is offered in four distinct lengths to ensure optimal fit within various ground-based ambulance configurations. This flexibility supports the system’s adjustability for either side or center mounting.

The available models and their corresponding lengths are:

  • Model 185 (Short Trac): 86 inches (2184 mm)
  • Model 185-91: 91 inches (2311 mm)
  • Model 185-MT (Medium Trac): 96 inches (2438 mm)
  • Model 185-LT (Long Trac): 103 inches (2616 mm)
Where is the Ferno 185 Series StatTrac Cot Fastening System typically used?

The Ferno 185 Series StatTrac Cot Fastening System is designed for use in ground ambulances and other emergency medical service vehicles.

Is an Integrated Charging System (ICS) available?

Yes, an optional Integrated Charging System (ICS) is available for the Ferno 185 Series StatTrac.

This feature provides the benefit of:

  • Automatic Charging: It maintains the cot battery levels by automatically initiating charging as soon as the cot is securely locked into the track.
