Ferno 175 Fastening System Module Kit

The Ferno 175 Fastening System Module Kit is specifically designed for use with Model 175 or iNX Model 175 (antler and rail) fastening systems. This ensures seamless integration and reliable performance with these compatible systems.

Yes, the Ferno 175 Fastening System Module Kit is designed for versatile mounting options, making it suitable for both wall- and floor-mounted fastening system rails.

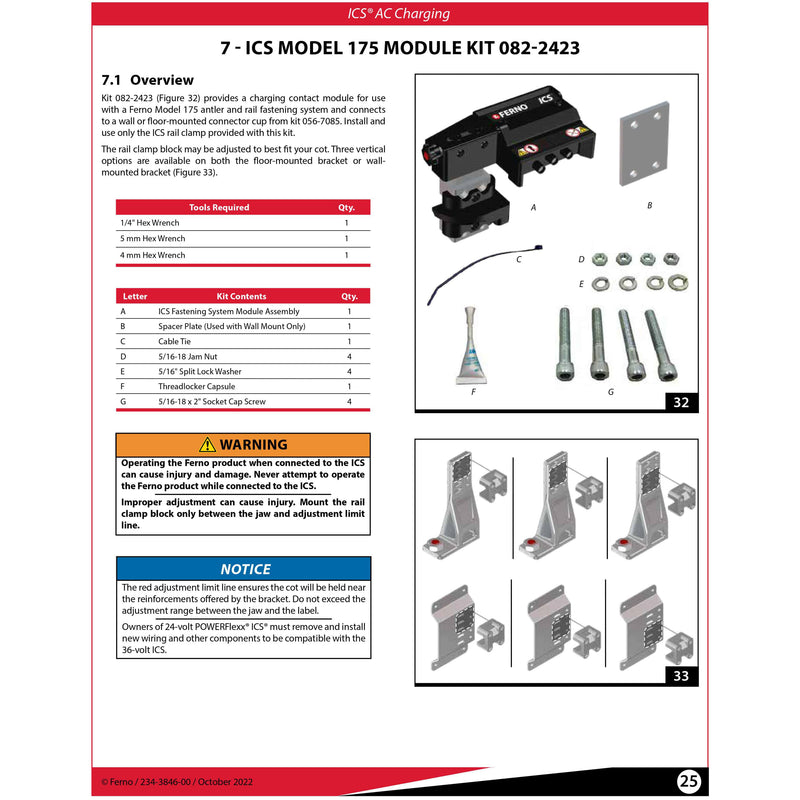

The Ferno 175 Fastening System Module Kit (MPN: 0822423) provides all the necessary components to add ICS AC charging capability to your Model 175 or iNX Model 175 fastening system.

The kit includes the following specialized components:

• ICS Fastening System Module Assembly (Qty 1): This is the core charging unit, which includes a plug, spring-loaded contacts for electrical transfer, and an integrated ICS rail clamp.
• Spacer Plate (Qty 1): Required for use only with wall-mounted system rails.
• Threadlocker Capsule (Qty 1): Contains Loctite 242 (Blue) threadlocker for securing the fasteners.
• Cable Tie (Qty 1)

The kit also supplies a comprehensive set of installation hardware (four of each):

• 5/16”-18 x 2” Socket Cap Screw
• 5/16” Split Lock Washer
• 5/16”-18 Jam Nut

The ICS Fastening System Module is essential for providing electrical connectivity and charging capability for secured transport stretchers.

• Charging Transfer: The module assembly uses a plug with spring-loaded contacts to deliver charging electricity to the secured iNX or POWERFlexx unit.
• System Compatibility: It is specifically designed to integrate with the Ferno Model 175 or iNX Model 175 fastening system (antler and rail).
• Versatile Use: This module works with both wall-mounted and floor-mounted fastening system rails.
• Integrated Clamping: The assembly includes an ICS rail clamp and all required hardware (screws, nuts, washers, and Loctite 242 threadlocker) for secure installation.

The installation of this module kit requires three specific Hex wrenches to ensure proper and secure assembly:

• 1/4” Hex Wrench
• 5 mm Hex Wrench
• 4 mm Hex Wrench

The spacer plate included in the Ferno 175 Fastening System Module Kit is specifically intended for wall mount applications. It provides the necessary spacing and support for secure wall mounting.

Yes, the Ferno 175 Fastening System Module Kit includes all the specialized components and hardware required to install the ICS (Integrated Charging System) Module Assembly onto a compatible Model 175 or iNX Model 175 fastening system rail. The kit includes the module assembly, specialized fasteners, and threadlocker.

Key components included are:

• ICS Fastening System Module Assembly
• Spacer Plate (Only used with wall-mounted rails)
• Cable Tie
• Threadlocker Capsule (Loctite 242 Blue)
• (4x) 5/16”-18 x 2” Socket Cap Screws
• (4x) 5/16” Split Lock Washers
• (4x) 5/16”-18 Jam Nuts

Note on Tools: While all hardware is provided, the necessary installation tools are not included in this kit. You will need a 1/4” Hex Wrench, a 5 mm Hex Wrench, and a 4 mm Hex Wrench.

Yes, the included Loctite 242 (Blue) Threadlocker is crucial for securing the screws and nuts, preventing them from loosening due to vibration or movement. Its use is highly recommended during installation.

The Ferno 175 Fastening System Module Kit is essential for providing ICS (Integrated Charging System) AC charging capability while your transport unit is secured.

Here is how the charging mechanism works:

• Charging Transfer: The core Module Assembly features a specialized plug with spring-loaded contacts. When the iNX or POWERFlexx unit is properly secured in the Model 175 or iNX Model 175 rail, these contacts engage with the unit’s connector cup to safely transfer charging electricity.
• Secure Attachment: The module assembly includes an integrated ICS version of the rail clamp, which ensures the charging component and the fastening system rail are securely held in place for both wall-mounted and floor-mounted applications.

Yes, the Ferno 175 Fastening System Module Kit is designed to transfer charging electricity to your iNX or POWERFlexx when secured. It does this through spring-loaded contacts that connect to a wall- or floor-mounted connector cup.
