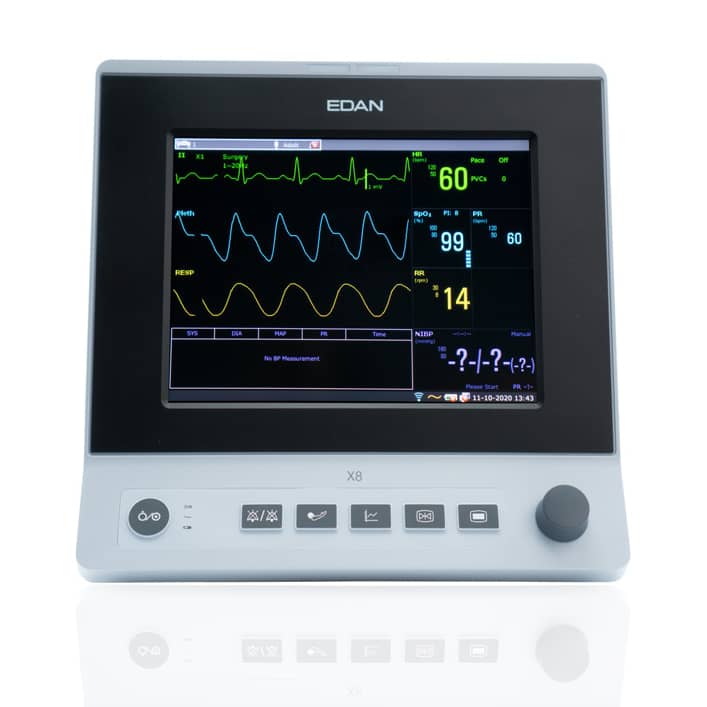

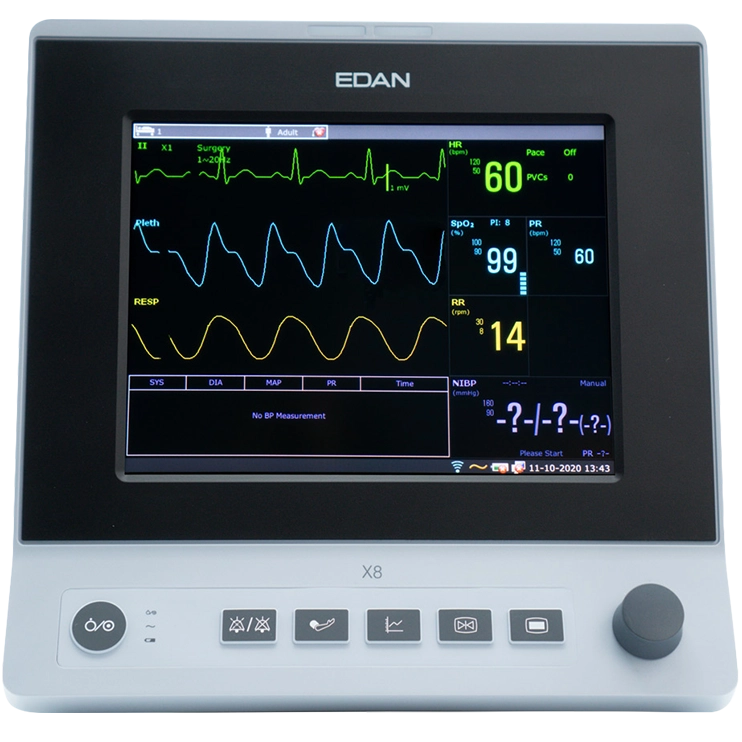

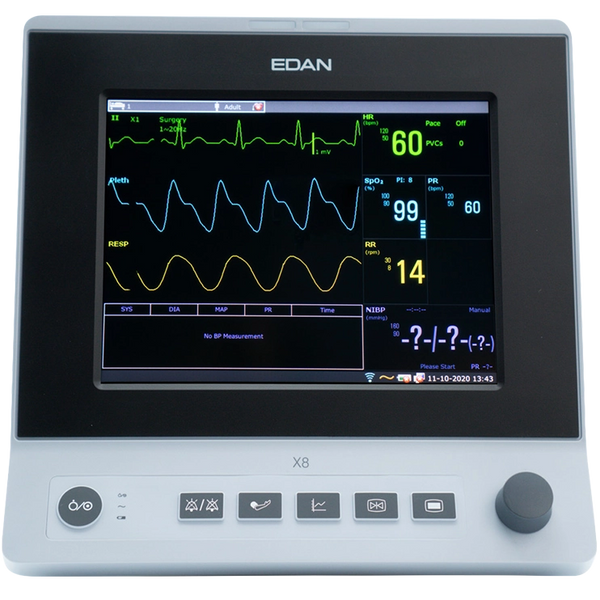

Edan X8 Patient Monitor

Edan X8 Patient Monitor

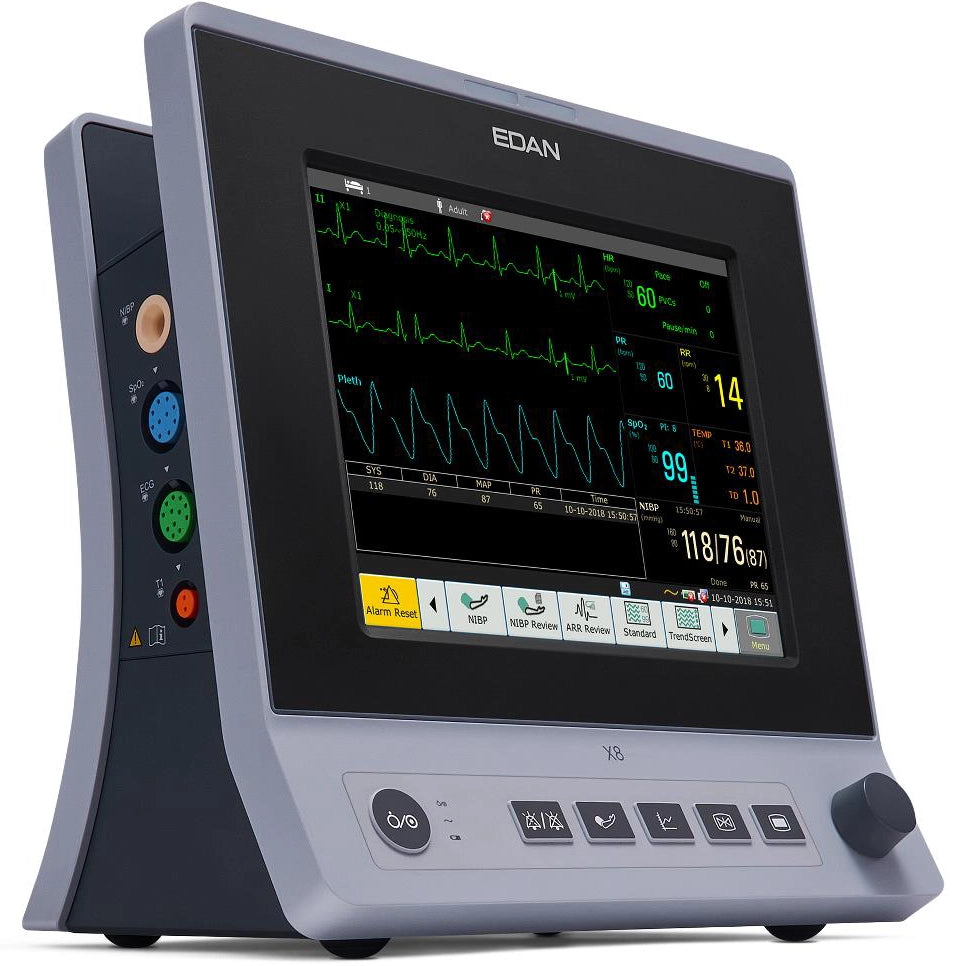

Edan X8 Patient Monitor - angled

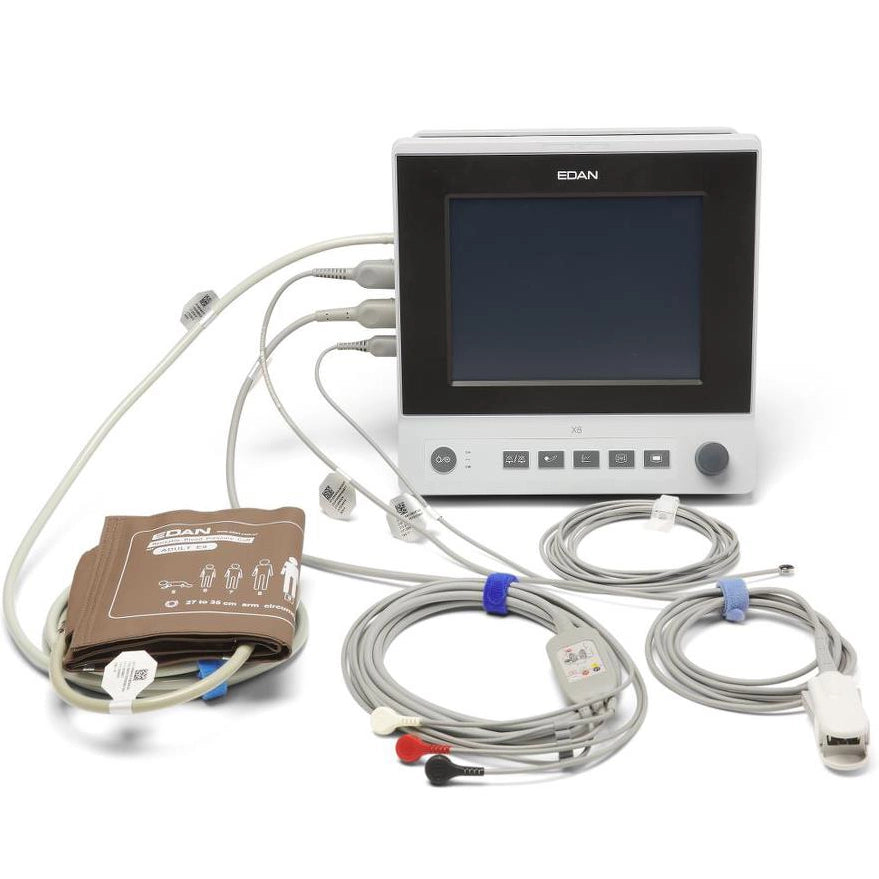

Edan X8 Patient Monitor with accessories

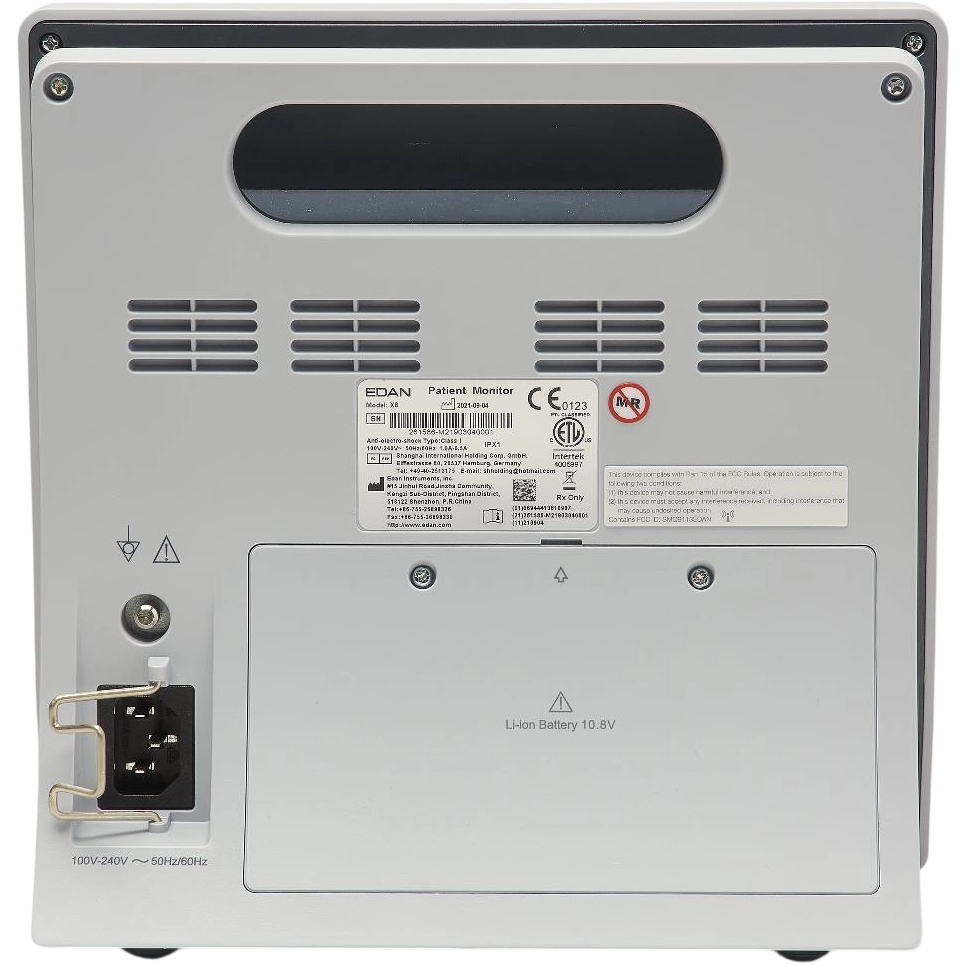

Edan X8 Patient Monitor - back

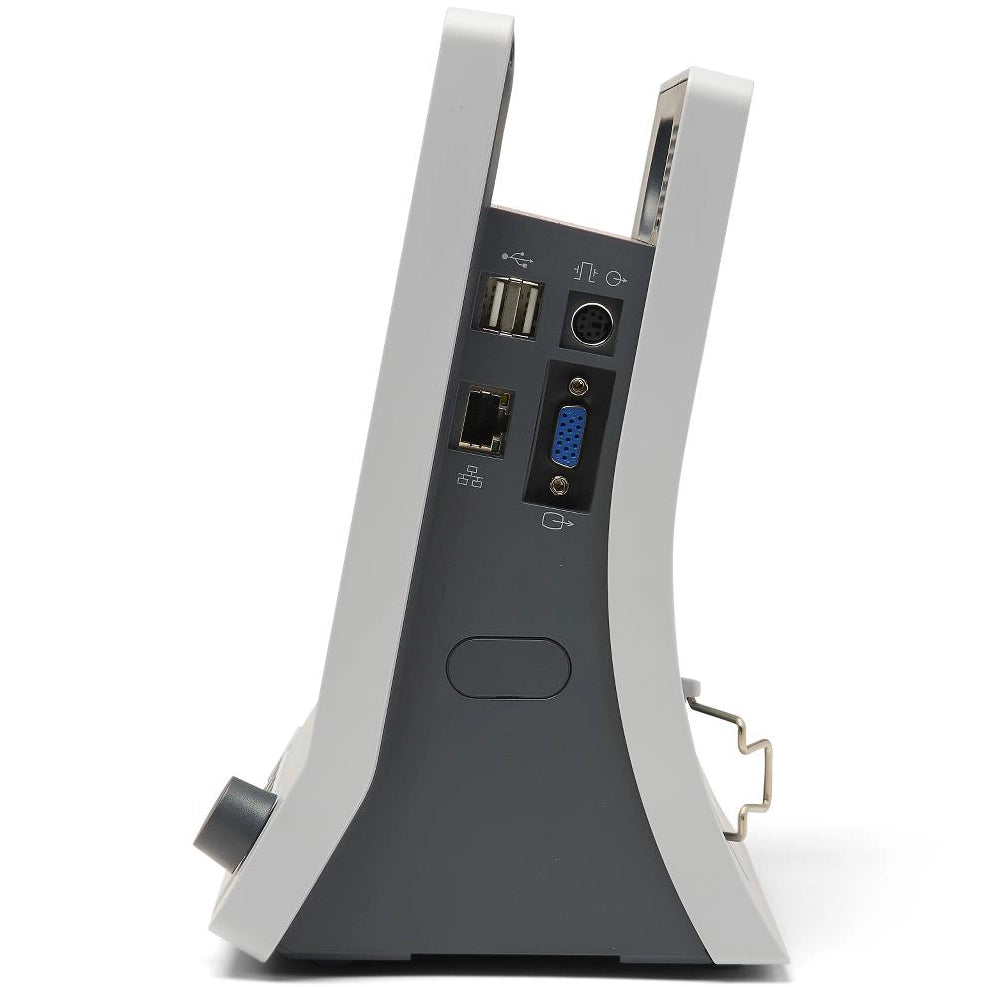

Edan X8 Patient Monitor connectivity ports

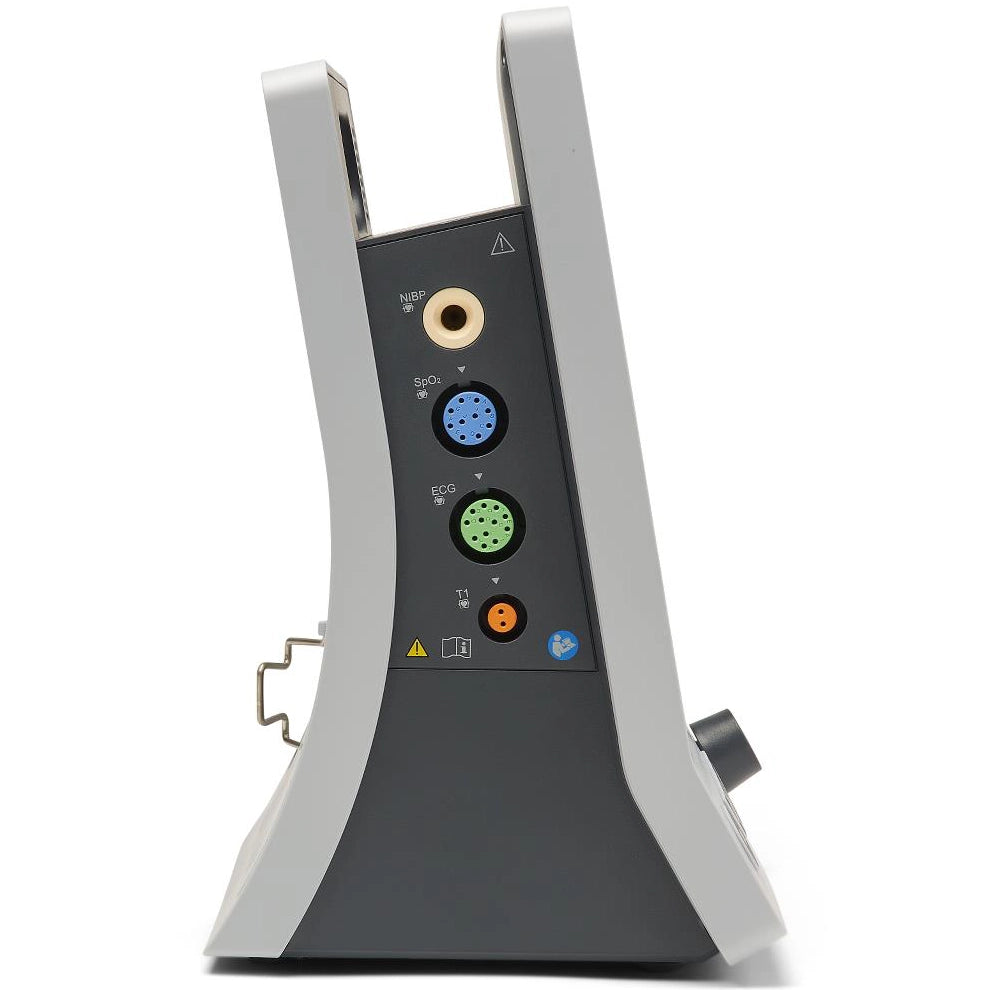

Edan X8 Patient Monitor parameter ports

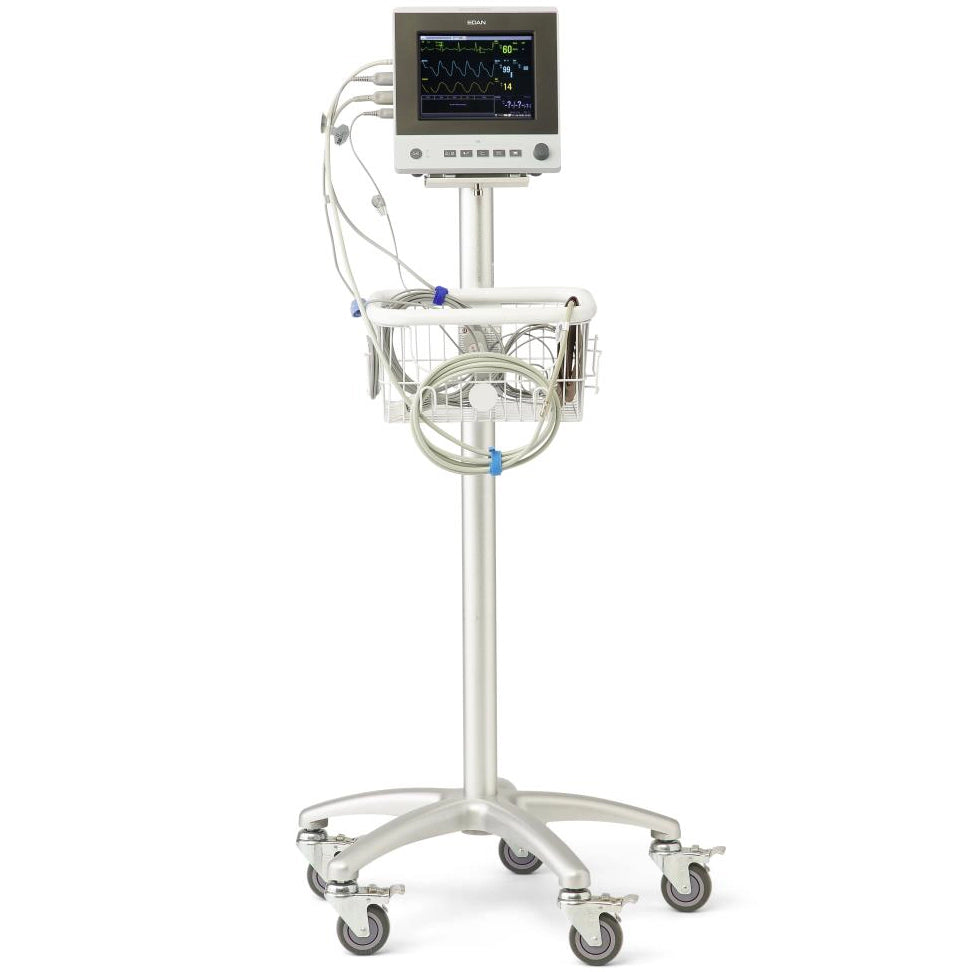

Edan X8 Patient Monitor on stand
Edan X8 Patient Monitor
Edan X8 Patient Monitor - angled
Edan X8 Patient Monitor with accessories
Edan X8 Patient Monitor - back
Edan X8 Patient Monitor connectivity ports
Edan X8 Patient Monitor parameter ports
Edan X8 Patient Monitor on stand
Key Features
  • SKU: EDN-X8
  • Condition: Factory New
  • Country of Origin: USA
  • Warranty: 2 Years
  • Weight: 5.29 lb
  • Ultraslim 8" color TFT touchscreen
  • Intuitive shortcut menu
  • Easy review and data transfer to an EMR
  • Fulfills primary clinical requirements and covers all patient types from neonate to adult

  • Learn more:

Contact The Manufacturer
  • MFR: Edan
    Ships from MFI Medical
  • MPN: X8
  • Phone: (888) 850-4597
$3,840.00 $2,327.64

+ Free shipping

2+ In Stock

Estimated Delivery:
<p>Earn%20[points_amount]%20when%20completing%20this%20purchase.</p>

Shop with Confidence

Description

The Edan X8 Patient Monitor includes:

  • #01.13.036638: Power Cable.
  • #01.15.040225: Adult Skin Temperature Probe.
  • #01.21.064380: Rechargeable Lithium-Ion Battery (10.8 V, 2550 mAh).
  • #01.57.471388: ECG Cable - 3-Lead, Snap, AHA, 3.4 m.
  • #01.59.473007: NIBP Tube.
  • #11.13.114214: Grounding Cable.
  • #Cuff.E9: NIBP Cuff - Adult (27 to 35 cm).
  • #SH1.Lemo: SpO2 Finger Sensor, Adult, 2.5 m.
  • #T716-50: Snap Electrodes.
  • Additional Accessories included with the Sidestream G2 CO2 Module:
    • #02.01.210520: Water Trap.
    • #4000-7-25: Adult Nasal CO2 Sampling Cannula.
    • #4410-10-25: Disposable CO2 Sampling Line with Male Luer Lock.

Warranty: 2 Years - Free from Defects in Materials and Workmanship.

Note: Data saved to a USB is encrypted. Users cannot simply see the vitals on a computer without the proper software. CMS/CMS-Lite software is required for viewing live to capture that data as a PDF. Alternatively, an installed printer can be used to view results.

Ideally suited for various environments such as general wards and in-hospital transfer units, the X8 Monitor fulfills primary clinical requirements and covers all patient types from neonate to adult.

Features

Edan X8 Patient Monitor Features

  • Standard Parameters: 3/5-lead ECG, RESP, NIBP, Edan SpO2, 1-TEMP, PR, HR, and internal memory for previous data review.
  • G2 CO2 (optional): Provides superior water trap design for accurate monitoring.
  • Ultraslim 8" color TFT touchscreen.
  • Intuitive shortcut menu.
  • Easy review and data transfer to an EMR.
  • Built-in Wi-Fi and carry handle.
  • Cable-receiving design.
  • Portable with or without a cart.
  • 240 hours of trend graph and table review.
  • 200 sets of alarm review.
  • 200 sets of arrhythmia review.
  • 1200 sets of NIBP review.
  • 48 hours of waveform review.

Specifications

Edan X8 Patient Monitor Specifications

  • Size: 236 mm (W) x 236 mm (H) x 146 mm (D).
  • Weight: 5.29 lb (2.4 kg).
  • Internal Memory: 8 GB.
  • Resolution: 800 x 600.
  • Waveforms Displayed: Up to 13.
  • Anti-Electroshock Type: Class I equipment and internal powered equipment.
  • Anti-Electroshock Degree: CF.
  • Ingress Protection: IPX1.
  • Working System: Continuous operation equipment.
  • Compliant with Standards: IEC 60601-1: 2005+A1 :2012; IEC 60601-1-2: 2014; EN 60601-1: 2006+A1 :2013; EN 60601-1-2: 2015; IEC 60601-2-49: 2011.
  • Temperature Limits:
    • Working: 0 to 40 °C (32 to 104 °F). When the battery is charged: 0 to 35 °C (32 to 95 °F).
    • Transport and Storage: -20 to 55 °C (-4 to 131 °F).
  • Humidity:
    • Working: 15 to 95% relative-humidity (non-condensing).
    • Transport and Storage: 15 to 95% relative-humidity (non-condensing).
  • Altitude:
    • Working: 86 to 106 kPa.
    • Transport and Storage: 70 to 106 kPa.
  • Power Supply: 100 to 240 V, 50/60 Hz.
  • Current: 1.0 to 0.5 A.

Configurations

Edan X8 Patient Monitor Configurations

  • #X8: Standard (No Edan G2 CO2 or Printer).
  • #X8-G2: With Internal Edan Sidestream G2 CO2 Module.
  • #X8.P: With Printer (installed onto the side).
  • #X8-G2.P: With Internal Edan Sidestream G2 CO2 Module and Printer (installed onto the side).

Frequently asked questions

Is the monitor suitable for patient transfers?

Yes, the Edan X8 Patient Monitor is specifically engineered for flexible use in dynamic clinical environments. It is ideal for:

  • General Wards: For reliable, continuous patient monitoring across diverse demographics.
  • In-Hospital Transfer Units: Its ultra-slim, portable design and low weight of 2.4 kg make it highly suitable for transporting patients while maintaining continuous vital sign monitoring.

This monitor accommodates all patient types, ranging from neonate to adult, and includes integrated Wi-Fi capability to facilitate easy data review and seamless transfer to an Electronic Medical Record (EMR) system.

Does the monitor support EMR connectivity?

Yes, the Edan X8 Patient Monitor is designed with features to ensure seamless data management and connectivity to hospital systems, streamlining your workflow.

Key connectivity features include:

  • Built-in Wi-Fi: This capability allows for easy networking, remote data review, and direct transfer of patient information to your Electronic Medical Record (EMR) system.
  • Intuitive Interface: The 8-inch color touchscreen uses an intuitive shortcut menu, simplifying operation and data access.

Data Security Note

For security purposes, any patient data saved to a USB drive is encrypted. To view this captured data (including PDF reports), specialized software such as CMS or CMS-Lite is required.

What essential accessories are included?

The standard Edan X8 Patient Monitor ships complete with essential components for immediate monitoring of core vital signs (ECG, NIBP, SpO2, and temperature).

Included Essential Accessories:

  • Monitoring Sensors and Supplies:
    • 3-Lead ECG cable and snap electrodes
    • Reusable SpO2 sensor
    • Skin temperature probe
    • NIBP tubing and an Adult NIBP cuff
  • Power and Setup:
    • Rechargeable battery
    • Power cable
    • Grounding cable
    • User Manual
Is the monitor highly compliant with safety standards?

Yes, the Edan X8 Patient Monitor is engineered for continuous operation and adheres to rigorous international safety and compliance standards, ensuring reliability in clinical environments. The monitor meets several key classifications:

  • Anti-Electroshock Protection: Classified as Class I equipment and offering a CF (Cardiac Floating) degree of protection, which is the highest level of safety against electrical shock.
  • Ingress Protection: It features an IPX1 rating, protecting the internal components against vertically dripping water.
  • Compliance Standards: The unit is compliant with essential medical device standards, including IEC 60601-1, IEC 60601-1-2, EN 60601-1, EN 60601-1-2, and IEC 60601-2-49.
Does the X8 monitor all patient types?

Yes, the Edan X8 Patient Monitor is specifically designed to provide comprehensive monitoring capability across the entire patient spectrum. It can monitor parameters for all patient types, from neonate to adult.

This versatility makes it ideally suited for use in environments like general wards and in-hospital transfer units.

Is optional CO2 monitoring available?

Yes, CO2 monitoring is available as an optional feature for the Edan X8 Patient Monitor.

  • The monitor supports the Edan G2 CO2 module, which can be selected as a configuration option.
  • This allows for comprehensive respiratory assessment across various patient types.
What is the monitor's ingress protection rating?

The Edan X8 Patient Monitor has an ingress protection rating of IPX1.

This rating indicates protection against vertically falling drops of water, making it suitable for operation in standard clinical environments like general wards and in-hospital transfer units.

Does the Edan X8 Patient Monitor feature a high-quality touch screen?

Yes, the Edan X8 Patient Monitor is equipped with an 8-inch color TFT touch screen. This display provides a clear and intuitive interface for viewing patient data and accessing functions through its intuitive shortcut menu.

What are the safe operating temperature specifications?

The Edan X8 Patient Monitor is designed for continuous operation and is rated for specific working temperature ranges:

  • Standard Operation: +0° C to +40° C (32° F to 104° F).
  • Operation while Charging the Battery: +0° C to +35° C (32° F to 95° F).

Additionally, the device is built to handle high humidity, certified for operation in environments ranging from 15%RH to 95%RH (non-condensing).

Is the X8 monitor easily portable?

Yes, the Edan X8 is explicitly designed for high portability, making it perfect for use in general wards and in-hospital transfer units.

Key features ensuring easy transport and flexibility include:

  • Lightweight: The monitor weighs only 2.4 kg.
  • Ultra-Slim Design: It features an 8-inch color TFT touch screen with an ultra-slim profile.
  • Compact Dimensions: Measuring 236 mm (W) × 236 mm (H) × 146 mm (D).
  • Flexible Placement: It is portable and can be used with or without an optional cart.
  • Power Supply: A rechargeable Lithium-Ion battery is included for continuous operation during transfers.
