Edan X12 Patient Monitor

Edan X12 Patient Monitor
Key Features
  • SKU: EDN-X12
  • Condition: Factory New
  • Country of Origin: USA
  • Warranty: 2 Years
  • 240 hours of trend graph and table review
  • Arrhythmia and S-T analysis
  • Ultra slim 12-inch touch screen
  • Intuitive shortcut menu

  • Learn more:

  • Purchasing Restriction: Medical license or prescription required
Contact The Manufacturer
  • MFR: Edan
    Ships from Manufacturer
  • MPN: X12
  • Phone: (888) 850-4597
$3,900.00
Select a Configuration
Est. Delivery:

Earn [points_amount] when you buy this item.

Shop with Confidence

Free Shipping

Free Returns

Payment Options

Price Match Guarantee

Sales Tax Exemption

Dedicated Account Managers

Description

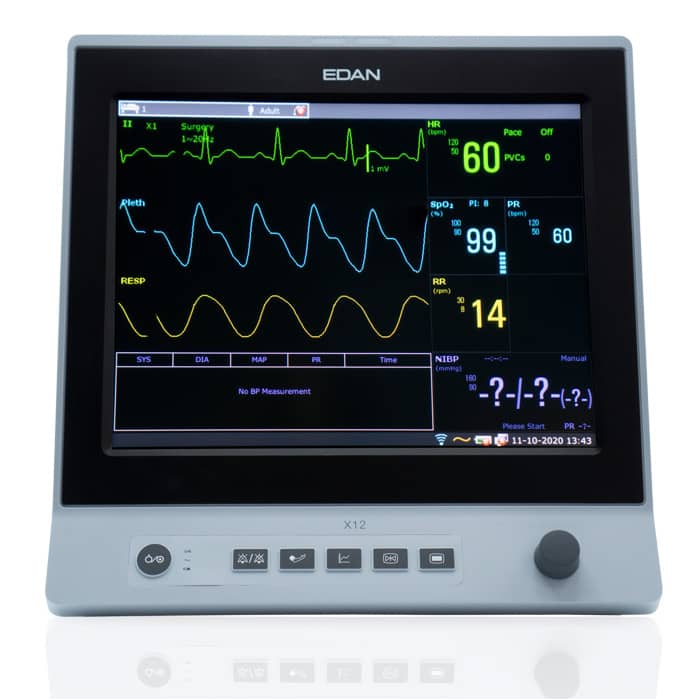

The Edan X12 Patient Monitor features a 12-inch touch screen and includes a skin temperature probe, NIBP tubing, an adult cuff, a reusable SpO2 sensor, a battery, snap electrodes, a power cable, a 3-Lead ECG cable, and a grounding cable.

Warranty: 2 Years.

Note: The Edan Thermal Printer for X Series Monitors (#PM.PRINTER.X) is the appropriate printer for X Series Monitors. It MUST be purchased at the same time as the corresponding X Series Monitor. Please contact MFI Medical directly if you wish to add a printer to your order.

Note II: Data saved on the USB is encrypted. Users cannot simply see the vitals on a computer without the proper software. CMS/CMS-Lite software is required for viewing live to capture that data as a PDF. Alternatively an installed printer can be used to view results. Printers MUST be added to a monitor order at the time of purchase. Otherwise a $195 labor fee plus the cost of the printer will be added. Please select the with printer option at checkout or contact MFI directly before purchasing to make sure your order includes a printer.

Ideally suited for emergency rooms, general wards, rehabilitation centers, cardiac intensive care units, and in-hospital transfer units, the X12 Monitor is a unique 3/5-lead system with automatic chest lead identification that fulfills primary clinical requirements and makes cardiac monitoring more flexible. The iSEAPTM ECG monitoring algorithm delivers 33 types of arrhythmia detections and the SEMIP ECG diagnosis algorithm provides 208 findings.

Features

Edan X12 Patient Monitor Features

  • Optional CO2.
  • 8 GB internal memory.
  • 240 hours of trend graph and table review.
  • Arrhythmia and S-T analysis.
  • Ultra slim 12-inch touch screen.
  • Intuitive shortcut menu.
  • Wifi capability.
  • Cable receiving design.
  • Built-in carry handle.

Specifications

Edan X12 Patient Monitor Specifications

  • Anti-electroshock Type: Class I equipment and internal powered equipment.
  • Anti-electroshock Degree: CF.
  • Ingress Protection: IPX1.
  • Working System: Continuous operation equipment.
  • Compliant with Standards: IEC 60601-1: 2005+A1 :2012; IEC 60601-1-2: 2014; EN 60601-1: 2006+A1 :2013; EN 60601-1-2: 2015; IEC 60601-2-49: 2011.
  • Size: 306 ± 2 mm (W) × 309 ± 2 mm (H) ×151 ± 2 mm (D).
  • Weight: 3.5 kg.
  • Working: +0° C to + 40° C (32° F ~ 104° F). When the battery is charged: +0° C to +35° C (32° F ~ 95° F).
  • Transport and Storage: -20° C to + 55° C (-4° F ~ 131° F).
  • Humidity:
    • Working: 15%RH ~ 95%RH (non-condensing).
    • Transport and Storage: 15%RH ~ 95%RH (non-condensing).
  • Altitude:
    • Working: 86 kPa ~ 106 kPa.
    • Transport and Storage: 70 kPa ~ 106 kPa.
  • Power Supply: 100 V-240 V~,50 Hz/60 Hz. Current = 1.4 A-0.7 A.
  • Display Screen: 12.1-inch color TFT, supporting touch screen.
  • Resolution: 800 × 600. A maximum of 13 waveforms.

Configurations

Edan X12 Patient Monitor Configurations

  • #X12: Standard.
  • #X12.G2: Includes Edan G2 CO2.
