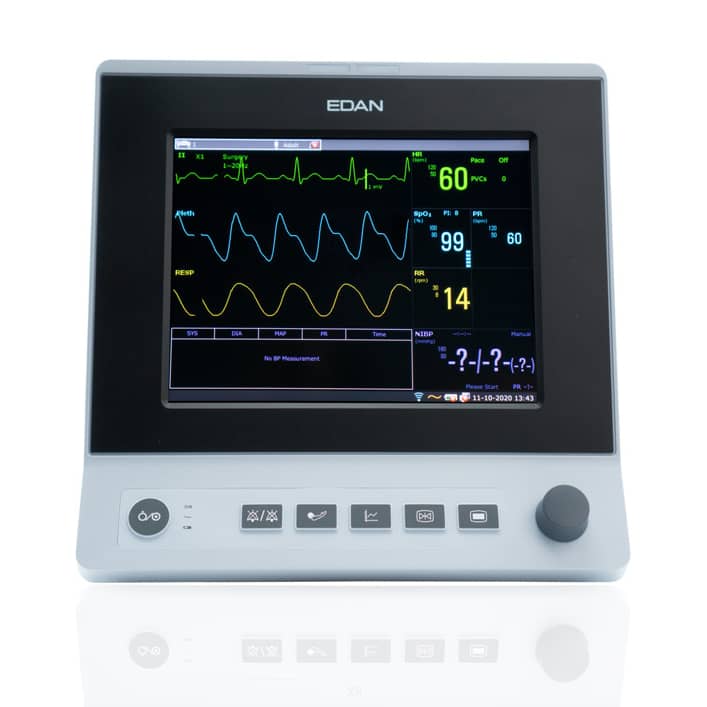

Edan X10 Patient Monitor w/ 10" Touch Screen

Edan X10 Patient Monitor w/ 10" Touch Screen
Key Features
  • SKU: EDN-X10
  • Condition: Factory New
  • Country of Origin: USA
  • Warranty: 2 Years
  • Optional CO2
  • Touch screen
  • Wifi capability

  • Learn more:

  • Purchasing Restriction: Medical license or prescription required
Contact The Manufacturer
  • MFR: Edan
    Ships from MFI Medical
  • MPN: X10
  • Phone: (888) 850-4597
$3,500.00
Select a Configuration

1+ In Stock

Est. Delivery:

Earn [points_amount] when you buy this item.

Shop with Confidence

Free Shipping

Free Returns

Payment Options

Price Match Guarantee

Sales Tax Exemption

Dedicated Account Managers

Description

The Edan X10 Patient Monitor w/ 10" Touch Screen includes a skin temperature probe, NIBP tubing, an adult cuff, a reusable SpO2 sensor, a battery, snap electrodes, a power cable, a 3-Lead ECG cable, and a grounding cable.

Warranty: 2 Years.

Note: The Edan Thermal Printer for X Series Monitors (#PM.PRINTER.X) is the appropriate printer for X Series Monitors. It MUST be purchased at the same time as the corresponding X Series Monitor. Please contact MFI Medical directly if you wish to add a printer to your order.

Note II: Data saved on the USB is encrypted. Users cannot simply see the vitals on a computer without the proper software. CMS/CMS-Lite software is required for viewing live to capture that data as a PDF. Alternatively an installed printer can be used to view results. Printers MUST be added to a monitor order at the time of purchase. Otherwise a $195 labor fee plus the cost of the printer will be added. Please select the with printer option at checkout or contact MFI directly before purchasing to make sure your order includes a printer.

Featuring NIBP, ECG, SpO2, Resp, PR, and Skin Temp, the X10 Patient Monitor fulfills primary clinical requirements in a variety of high-stress environments such as emergency rooms, general wards, rehabilitation centers, cardiac intensive care units, and in-hospital transfer units. It even makes cardiac monitoring more flexible and boasts the iSEAPTM ECG monitoring algorithm with 33 types of arrhythmia detections and 208 findings.

Features

Edan X10 Patient Monitor w/ 10" Touch Screen Features

  • Optional CO2.
  • Touch screen.
  • Wifi capability.

Specifications

Edan X10 Patient Monitor w/ 10" Touch Screen Specifications

  • Anti-electroshock Type: Class I equipment and internal powered equipment.
  • Anti-electroshock Degree: CF.
  • Ingress Protection: IPX1.
  • Working System: Continuous operation equipment.
  • Compliant with Standards: IEC 60601-1: 2005+A1 :2012; IEC 60601-1-2: 2014; EN 60601-1: 2006+A1 :2013; EN 60601-1-2: 2015; IEC 60601-2-49: 2011.
  • Size: 261± 2 mm (W) × 246 ± 2 mm (H) ×146 ± 2 mm (D).
  • Weight: 2.8 kg.
  • Working: +0° C to + 40° C (32° F ~ 104° F). When the battery is charged: +0° C to +35° C (32° F ~ 95° F).
  • Transport and Storage: -20° C to + 55° C (-4° F ~ 131° F).
  • Humidity:
    • Working: 15%RH ~ 95%RH (non-condensing).
    • Transport and Storage: 15%RH ~ 95%RH (non-condensing).
  • Altitude:
    • Working: 86 kPa ~ 106 kPa.
    • Transport and Storage: 70 kPa ~ 106 kPa.
  • Power Supply: 100 V-240 V~,50 Hz/60 Hz. Current = 1.4 A-0.7 A.
  • Display Screen: 10.1-inch color TFT, supporting touch screen.
  • Resolution: 800 × 480. A maximum of 13 waveforms.

Configurations

Edan X10 Patient Monitor w/ 10" Touch Screen Configurations

  • #X10: Standard.
  • #X10.G2: Includes Edan G2 CO2.
