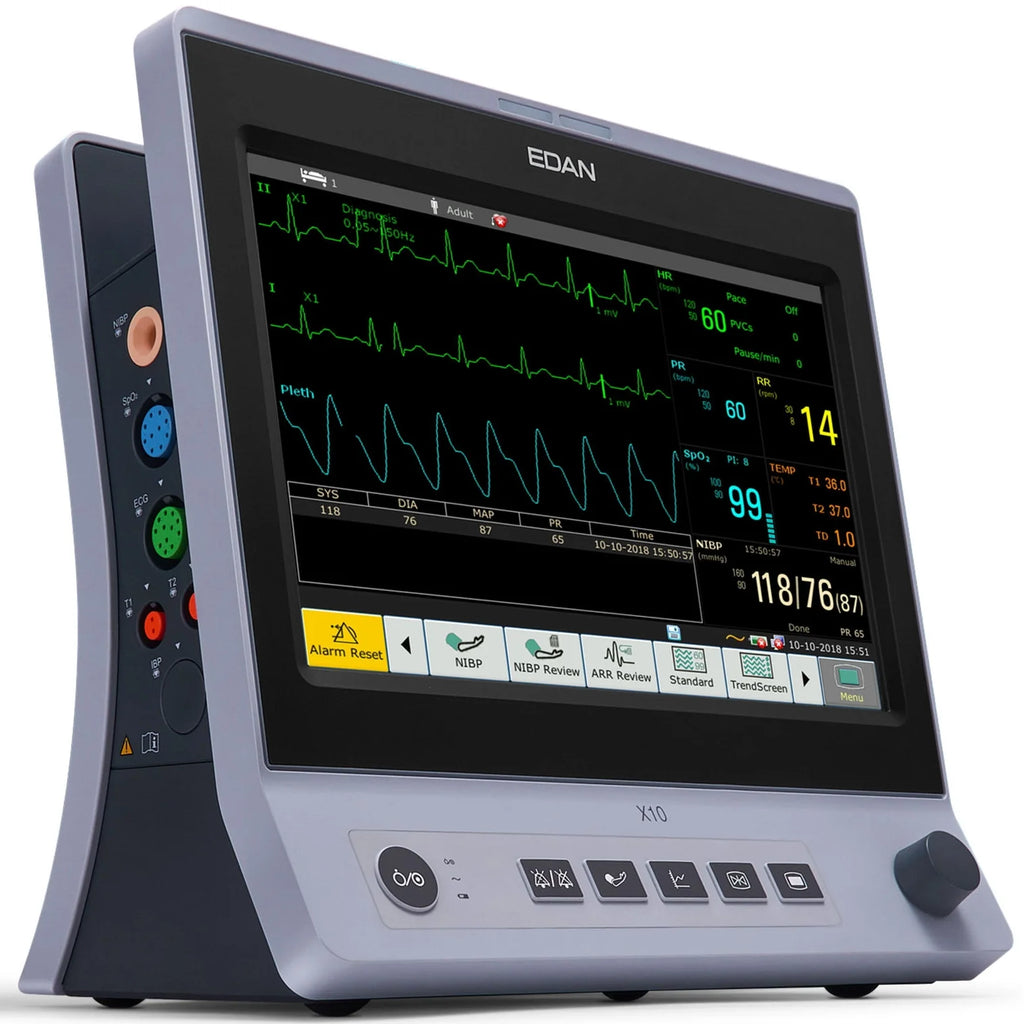

Edan X10 Patient Monitor

No, CO2 monitoring is an optional feature for the Edan X10 Patient Monitor. It is available with the Edan G2 CO2 configuration, which needs to be selected when purchasing; it is not included in the standard configuration.

Yes, the Edan X10 is designed for detailed cardiac assessment. It utilizes the advanced iSEAP™ ECG monitoring algorithm to provide high-precision arrhythmia analysis and S-T segment monitoring.

The iSEAP™ algorithm is highly comprehensive, featuring:

• Detection of 33 distinct types of arrhythmia.
• Identification of 208 specific findings for detailed clinical review.

The standard configuration supports both 3-lead and 5-lead ECG monitoring.

The Edan X10 Patient Monitor comes complete with all necessary accessories to begin essential patient monitoring right out of the box. This ensures immediate operation for critical care parameters.

Key Included Components:

• Physiological Sensors:
  • Reusable Adult SpO2 Finger Sensor (2.5 m)
  • Adult Skin Temperature Probe
  • 3-Lead ECG Cable and Snap Electrodes
• NIBP System:
  • Reusable Adult NIBP Cuff (27 to 35 cm)
  • NIBP Tubing
• Power & Operations:
  • Rechargeable Lithium-Ion Battery (providing excellent portability)
  • Power Cable and Grounding Cable
  • User Manual

Note on Optional Printing: If printing capabilities are required, the Edan Thermal Printer must be purchased separately. To avoid additional labor fees, it is highly recommended to order the printer alongside the monitor.

Yes, the Edan X10 Patient Monitor is designed with robust connectivity and 8 GB of internal memory to support high-capacity data retention.

Data Storage Capacity

The 8 GB internal memory allows the device to securely store extensive patient data, including:

• Trend Review: Supports up to 240 hours of continuous patient trend data.
• NIBP Measurements: Stores up to 1,200 non-invasive blood pressure measurements.
• Alarm Review: Retains 200 sets of alarm events.
• Waveform Freeze: Includes a 120-second waveform buffer.

Advanced Connectivity

The monitor supports seamless integration and data output:

• WiFi Capability: Built-in for reliable wireless networking.
• VGA Output: Allows connection to a larger external display.
• USB Output: Enables easy data export.

Note: Data saved to USB is encrypted and requires specific CMS/CMS-Lite software for viewing or exporting on an external computer.

Yes, the Edan X10 Patient Monitor is designed for continuous operation, making it suitable for ongoing patient monitoring in various clinical settings.

The Edan X10 Patient Monitor provides high-precision tracking of key physiological parameters, making it a versatile tool for emergency rooms, cardiac units, and general hospital wards.

Standard Monitored Parameters

The device comes equipped to monitor six essential vital signs:

• ECG: Comprehensive cardiac monitoring.
• SpO₂: Peripheral oxygen saturation.
• NIBP: Non-invasive blood pressure.
• Respiration Rate: Real-time breathing assessment.
• Pulse Rate: Continuous heart rate tracking.
• Skin Temperature: Monitoring for patient thermoregulation.

Advanced Clinical Features

Beyond standard tracking, the X10 is engineered with the proprietary iSEAP™ ECG algorithm. This advanced technology is capable of detecting 33 types of arrhythmias and providing 208 clinical findings, allowing for more detailed cardiac analysis during critical care.

Optional Expandability

For environments requiring more specialized respiratory monitoring, the X10 is available in a configuration that includes Edan G2 CO₂ (sidestream capnography), which provides critical data on a patient’s end-tidal carbon dioxide levels.

Yes, the Edan X10 features an advanced, high-resolution touch screen interface designed for clarity and ease of use in clinical environments.

Key display specifications and benefits include:

• Size and Type: Ultra-slim 10-inch Color TFT LCD touch screen.
• High Resolution: The screen provides 800 x 600 resolution for sharp visualization of all data and waveforms.
• Comprehensive Data View: The monitor is capable of simultaneously displaying up to 13 waveforms, ensuring critical patient information is visible at a glance.
• Ease of Use: The touch screen functionality simplifies navigation and streamlines operation.

Yes, the Edan X10 Patient Monitor is specifically engineered for clinical mobility and use in diverse high-stress environments, including in-hospital transfers.

Its compact and portable design is highlighted by several features:

• An ultra-slim profile housing the 10-inch color TFT LCD touchscreen.
• A convenient built-in carry handle for easy transportation.
• A cable receiving design to manage and secure cables during transit.
• A lightweight structure, with the unit weighing approximately 2.8 kg (6.17 pounds).

These features make it highly suitable for deployment in emergency rooms, general wards, and during patient transfers.

Yes, the Edan X10 Patient Monitor is a high-performance device engineered for continuous operation in demanding, high-stress clinical environments. It offers comprehensive monitoring capabilities making it ideal for use in:

• Emergency Rooms (ERs)
• Cardiac Intensive Care Units (ICUs)
• General Wards
• Rehabilitation Centers
• In-hospital Transfer Units

Yes, the Edan X10 Patient Monitor features robust data management capabilities designed for continuous clinical monitoring and extensive data review.

Key storage capacities include:

• Internal Memory: 8 GB for overall data storage.
• Trend Review: Storage for up to 240 hours of physiological trend data.
• NIBP Logs: Records up to 1,200 Non-Invasive Blood Pressure (NIBP) measurements.
• Alarm History: Retains 200 sets of alarm events.
• Waveform Buffer: Features a 120-second frozen waveform buffer for detailed observation.

The monitor also provides versatile connectivity for data output, including built-in WiFi capability, USB output, and VGA output.

Important Note: Data exported via the USB port is encrypted. To view this data (as a PDF) on an external computer, proprietary CMS/CMS-Lite software is required.
