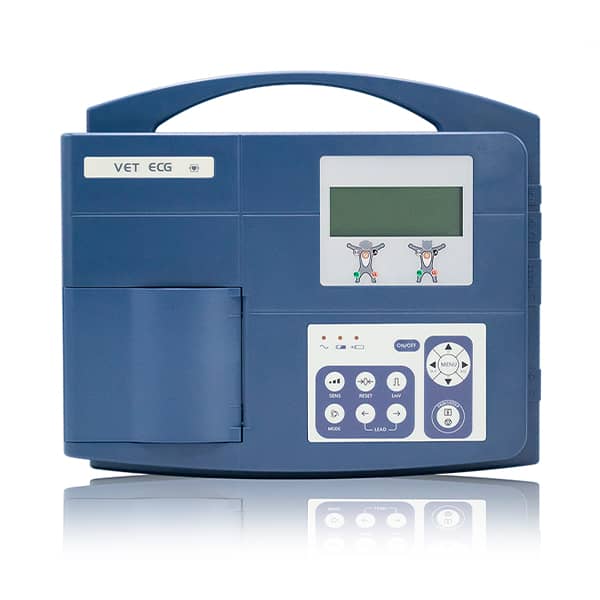

Edan VE-100 Veterinary EKG

Edan VE-100 Veterinary EKG Features

• Portable design with built in handle.
• Complete digital design.
• 1x3 inch LCD display for single waveform.
• LCD display waveforms with configurable parameters.
• Complete digital filter to avoid baseline drift, AC, and EMG interference.
• Built-in rechargeable Lithium battery and AC/DC supply.
• Built-in thermal printer.
• High resolution thermal printing.
• Baseline automatically adjustable to optimize printing position.
• Expertly designed touch panel.
• Waterproof mambrane keyboard.
• Input/Output and RS-232 port.
• Auto/manual operation.

Edan VE-100 Veterinary EKG Specifications

• Input Circuit: Protection from defibrillation.
• Lead: Standard 7 leads.
• Acquisition: Single lead.
• A/D Resolution: 12 bits.
• Measurement Range: ±5mVpp.
• Time Constant: ≥3.2s.
• Frequency Response: 0.05Hz ~ 150Hz.
• Calibration Voltage: 1mV ±3%.
• Sensitivity: 2.5, 5, 10, 20 (mm/mV).
• Input Impedance: ≥10m Ω.
• Input Circuit Current: ≥50nA.
• Noise Level: ≥15µVp-p.
• Anti Baseline Drift: Automatic.
• Patient Leakage Current: ≤10µA (220V~240V).
• Patient Auxiliary Current: ≤0.1µA (DC).
• Filters:
• EMG Filter: 35Hz (-3dB).
• AC/DFT Filter: 50Hz/60Hz (-20dB).
• CMRR: >90dB.
• Recording Modes: Auto/Manual.
• Rhythm Lead: Single lead selectable.
• Safety Standard: IEC 1/CF.
• Power Supply:
• AC: 100V-115V/220V-240V, 50/50Hz.
• Built-in rechargeable Li-ion battery.
• More than 3 hrs continuous work under battery supply.
• Thermal Recorder: Thermal dot array, 8 dots/mm vertical.
• Recording Paper: 50mm x 30m.
• Recording Speeds: 25mm/s, 50mm/s (±3%).
• Dimensions: 300mm x 260mm x 75mm.
• Weight: 2.3kg (with battery).
• Display: 192 x 64 dots LCD.
• External Input/Output:
• Input: ≥100kΩ; Sensitivity 10mm/V ±5%.
• Output: ≤100Ω; Sensitivity 1VmV ±5%.
• Communication Interface: RS232.
