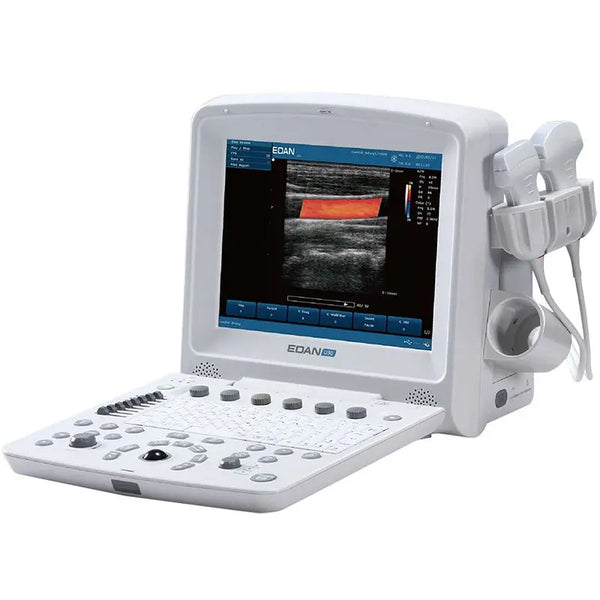

The Edan U50 Prime Diagnostic Ultrasound System (#U50P) includes:

  • Transducer of your choice (recommended standard: C352UB).
  • (2) Fuses (#21.21.064172).
  • Transducer Holder (#01.51.113140).
  • Ultrasound Gel Holder (#21.51.113131).
  • Ultrasound Gel [(CE Mark, 250 g) (#11.57.78008-11)].
  • Power Cord [(USA standard) (#21.13.036384-10)].
  • Ground Cable (#11.13.114214).
  • User Manual.
  • Quick Guide.

Warranty: 2 Years - Free from Defects in Materials and Workmanship.

The U50 Prime is Edan's newest portable system that offers color flow, pulse wave, and power doppler.

The U50 Prime Edition ensures you can scan more patients, across more applications, with more diagnostic confidence, whether your imaging study requires unparalleled detail and contrast resolution of high frequency musculoskeletal imaging or superb penetration to evaluate deep abdominal targets.

Edan U50 Prime Diagnostic Ultrasound System Features

  • Imaging Modes: B, B+B, 4B, B+M, M, and PW.
    • Color Doppler Flow.
    • Pulsed Wave Doppler (PW).
    • Continuous Wave Doppler (CW).
    • Power (Directional Power) Doppler.
    • Multi-Beam-Forming: High frame-rate in all modes including color and Doppler.
    • Phased Inversion Harmonic Compound: Reduces noise and clutter for optimum image quality.
    • Speckle Resistance: Improves contrast resolution while maintaining detail resolution.
    • Spatial Compounding: Multiple lines-of-sight improves contrast resolution.
    • Spectral Doppler high-PRF (HPRF).
  • THI.
  • TSI.
  • Multi-Frequency Transducer Technology: Multiple 2-D, harmonic and color frequencies increases transducer utility.
  • User-Friendly Workflow: Intuitive control panel reduces learning curve.
  • Smart PreSets: Quickly adjust multiple settings to suit your patient type and imaging preferences.
  • Multi-pseudo color.
  • Light-weight design for excellent mobility (can be hand carried).
  • Quick boot-up.
  • Back-lit control panel.
  • Measurement and calculation packages.
  • Multi-language software packages.
  • High-performance transducers feature outstanding quality and reliability.
    • The new Prime Edition Transducer Suite includes the C5-2b, L15-7b, and P5-1b.
    • The U50 Universal Transducer Suite includes the C352UB, C612UB, C6152UB, L1042UB, L742UB, L552UB, and E612UB.
  • The performance of a high-end system at a compact price.
  • Built in lithium battery for continuous two hour work (optional).

Edan U50 Prime Diagnostic Ultrasound System Specifications

  • Monitor: 12.1" LCD.
  • Transducer Connectors: 2.
  • Memory: 256 frames CINE loop.
  • Image Storage: 504 MB (built-in).
  • USB Ports: 2.

Edan U50 Prime Diagnostic Ultrasound System Options

Part Number Transducer Fundamental Frequencies Elements Harmonic Frequencies Target Application
#02.01.210396-12 C352UB (Convex Array) *Recommended 2.5 / 3.5 / 4.5 MHz 128 5.0 / 5.4 MHz OB/GYN, Abdomen
#02.01.211004 C5-2b (Convex Array) 2.5 / 3.5 / 4.0 MHz 128 5.0 / 6.0 MHz OB/GYN, Abdomen
#02.01.211291 P5-1b (Phase Array) 2.0 / 2.5 / 3.0 MHz 64 4.0 / 5.0 MHz Cardiac Screening
#02.01.211060 L15-7b (Linear Array) 10.0 / 12.0 / 14.0 MHz 128 14.4 / 14.8 Thyroid, Breast, SMP, MSK
#02.01.210565-11 C6152UB (Micro-Convex Array) 5.5 / 6.5 / 7.5 MHz 128 9.0 / 9.4 MHz Ped Abdomen, Ped Cardiac
#02.01.210567-11 C612UB (Micro-Convex Array) 5.5 / 6.5 / 7.5 MHz 128 9.0 / 9.4 MHz Ped Abdomen, Ped Cardiac
#02.01.210569-11 C422UB (Micro-Convex Array) 3.0 / 4.0 / 5.0 MHz 128 5.0 / 5.4 MHz -
#02.01.210398-11 L742UB (Linear Array) 6.5 / 7.5 / 8.5 MHz 128 9.0 / 9.4 MHz Vascular, Breast, SMP, MSK
#02.01.210402-11 L1042UB (Linear Array) 8.0 / 9.5 / 11.0 MHz 128 13.0 / 13.4 MHz Vascular, Breast, SMP, MSK
#02.01.210575-11 L552UB (Linear Array) 4.5 / 5.5 / 6.5 MHz 128 5.6 / 6.0 MHz Deep Vascular, Breast, MSK
#02.01.210400-11 E612UB (Transvaginal Array) 5.5 / 6.5 / 7.5 MHz 128 9.0 / 9.4 MHz Endovaginal, Endorectal

Edan U50 Prime Diagnostic Ultrasound System Literature

Edan U50 Prime Edition Brochure
