Edan SonoTrax II Pro Fetal Doppler Baby Heart Monitor

Yes, the Edan SonoTrax II Pro is designed for high versatility, featuring support for five different interchangeable, waterproof probes. This allows healthcare professionals to use the same unit for both fetal heart rate monitoring and vascular assessment.

The device is compatible with the following probe frequencies:

• Obstetric Monitoring (FHR): Uses the 2 MHz and 3 MHz probes. The 3 MHz probe is the standard recommendation for detecting the Fetal Heart Rate (FHR).
• Vascular Assessment (Blood Flow): Uses the 4 MHz, 5 MHz, and 8 MHz probes for assessing peripheral blood flow in arteries and veins.

Yes, the Edan SonoTrax II Pro Fetal Doppler is equipped with essential audio features that support both recording and playback for easy review and clinical documentation.

Key details regarding the audio function:

• Recording Duration: The device allows recording up to 240 seconds (4 minutes) of monitoring session audio.
• Playback Functionality: The playback capability enables easy review of recorded sessions, aiding in accurate clinical assessment.
• Audio Output: The Doppler utilizes a dedicated speaker system with a powerful 1 W audio output.

Yes, the Edan SonoTrax II Pro is engineered specifically for clinical and professional use.

It is intended solely for trained healthcare professionals who require accurate, routine obstetric and vascular monitoring, including:

• Registered nurses
• Midwives
• Ultrasound technicians
• Physician assistants

Its features, such as integrated recording capability and interchangeable waterproof probes, are designed to support medical documentation and assessment in hospital, clinic, or private office settings.

Yes, the Edan SonoTrax II Pro is equipped with a built-in, rechargeable 1800 mAh Lithium Polymer battery designed for reliable, portable use.

Key features regarding power include:

• Continuous Operation: The device offers up to four hours of continuous work time on a full charge.
• Easy Recharging: The standard kit includes the required Lithium Polymer rechargeable battery and a USA standard adapter for convenient charging.
• Power Conservation: To maximize battery life, the unit is programmed to automatically power off if no signal or operation is detected for one minute.

Yes, the Edan SonoTrax II Pro Fetal Doppler is equipped with three comprehensive working modes to ensure flexible and precise monitoring in clinical settings:

• Real-time/Auto Mode: Provides immediate and continuous Fetal Heart Rate (FHR) detection.
• Average Mode: Calculates the average FHR over a defined time period.
• Manual Mode: Allows healthcare professionals to perform specific, controlled heart rate examinations and measurements.

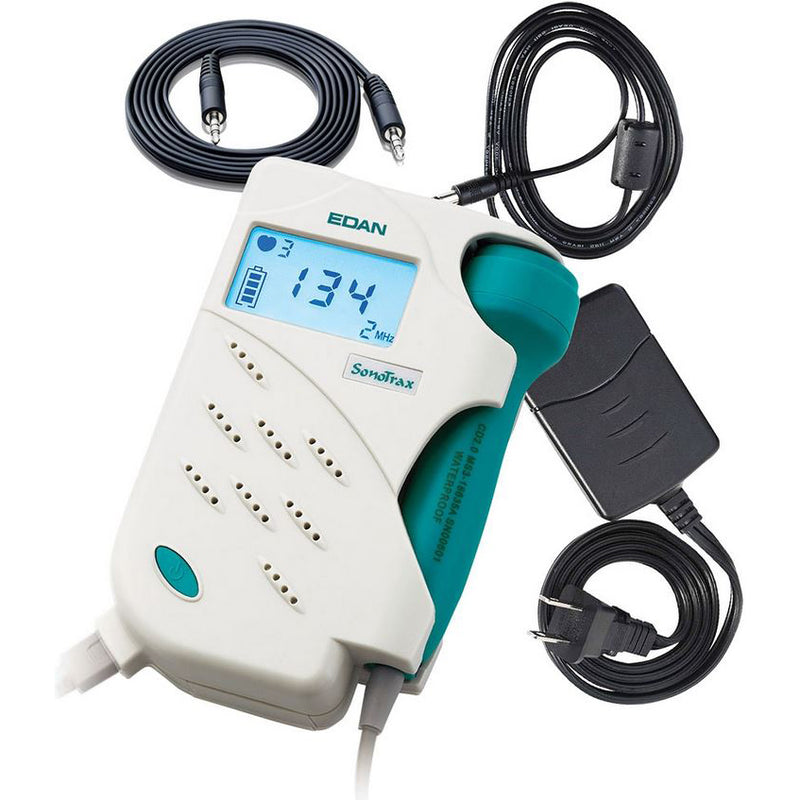

The Edan SonoTrax II Pro Fetal Doppler is shipped as a complete, factory-new kit designed for professional monitoring. It includes a rechargeable power system and durable accessories.

Key components included in the package are:

• SonoTrax II Pro Main Unit: Features the blue backlight LCD display and supports audio recording and playback (up to 240 seconds).
• Waterproof Interchangeable Probe: You select the probe frequency, with the 3 MHz probe being the recommended choice for routine fetal heart rate (FHR) detection. The unit is compatible with 2, 4, 5, and 8 MHz probes.
• Power System: This includes the built-in Lithium Polymer Rechargeable Battery (1800 mAh), providing up to four hours of continuous use, along with the USA Standard Adapter for charging.
• Accessories:
  • SonoTrax Carrying Case
  • User Manual

Yes, all probes designed for the Edan SonoTrax II Pro are waterproof and interchangeable, allowing for versatile clinical use. The waterproof design contributes to device longevity and safety.

The compatible probe frequencies support different applications:

• Obstetric Probes (Fetal Heart Rate): 2 MHz and 3 MHz (The 3 MHz probe is typically included as standard).
• Vascular Probes (Peripheral Blood Flow): 4 MHz, 5 MHz, and 8 MHz.

The Edan SonoTrax II Pro Fetal Doppler is designed to accurately monitor the Fetal Heart Rate (FHR) within a professional assessment range.

• Heart Rate Range: 50 to 210 beats per minute (bpm)
• FHR Resolution: 1 bpm

Yes, the Edan SonoTrax II Pro is highly portable, designed specifically as a compact ultrasonic pocket device ideal for healthcare professionals moving between patient rooms or clinics.

Its features emphasize ease of transport:

• Extremely Lightweight: The unit, including the built-in rechargeable Lithium Polymer battery, weighs only 0.66 lb (300 g).
• Compact Size: The dimensions are highly manageable at 141 mm (H) x 89 mm (W) x 34 mm (D).
• Rechargeable Battery: The internal battery provides approximately four hours of continuous work time on a single charge.
• Easy Transport: The standard kit includes a dedicated SonoTrax Carrying Case for safe and easy mobility.

Yes, the SonoTrax II Pro includes an essential automatic power-off function to help conserve battery life and maximize continuous operating time.

Key details regarding power management:

• Auto Shut-Off: The device will automatically power off after 1 minute if no signal is detected or no operation is performed.
• Power Source: It utilizes a high-capacity, built-in 1800 mAh Lithium Polymer rechargeable battery.
• Continuous Use: A full charge provides approximately four hours of continuous monitoring time.

The standard kit includes the rechargeable battery and the necessary USA Standard Adapter for charging.
