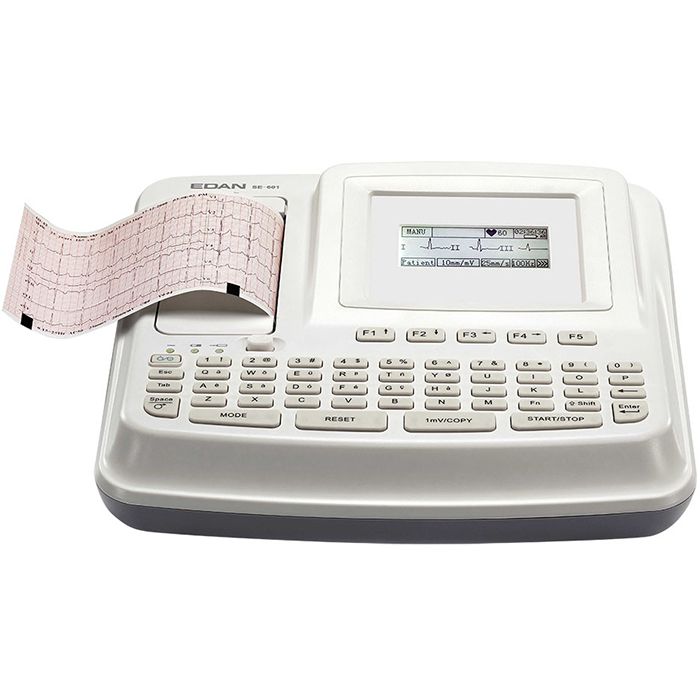

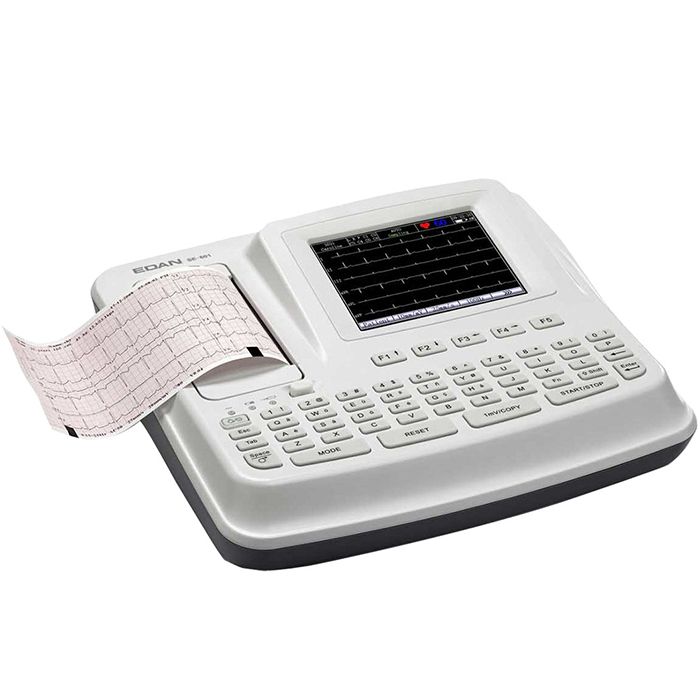

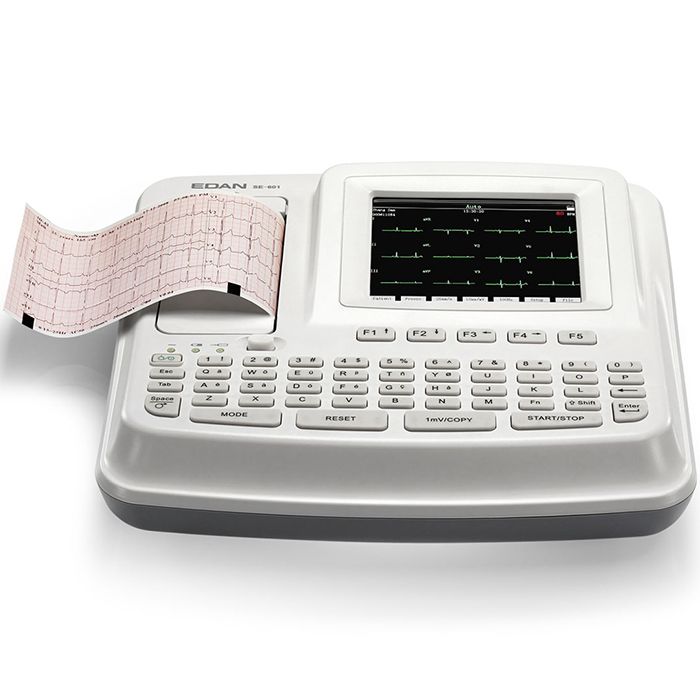

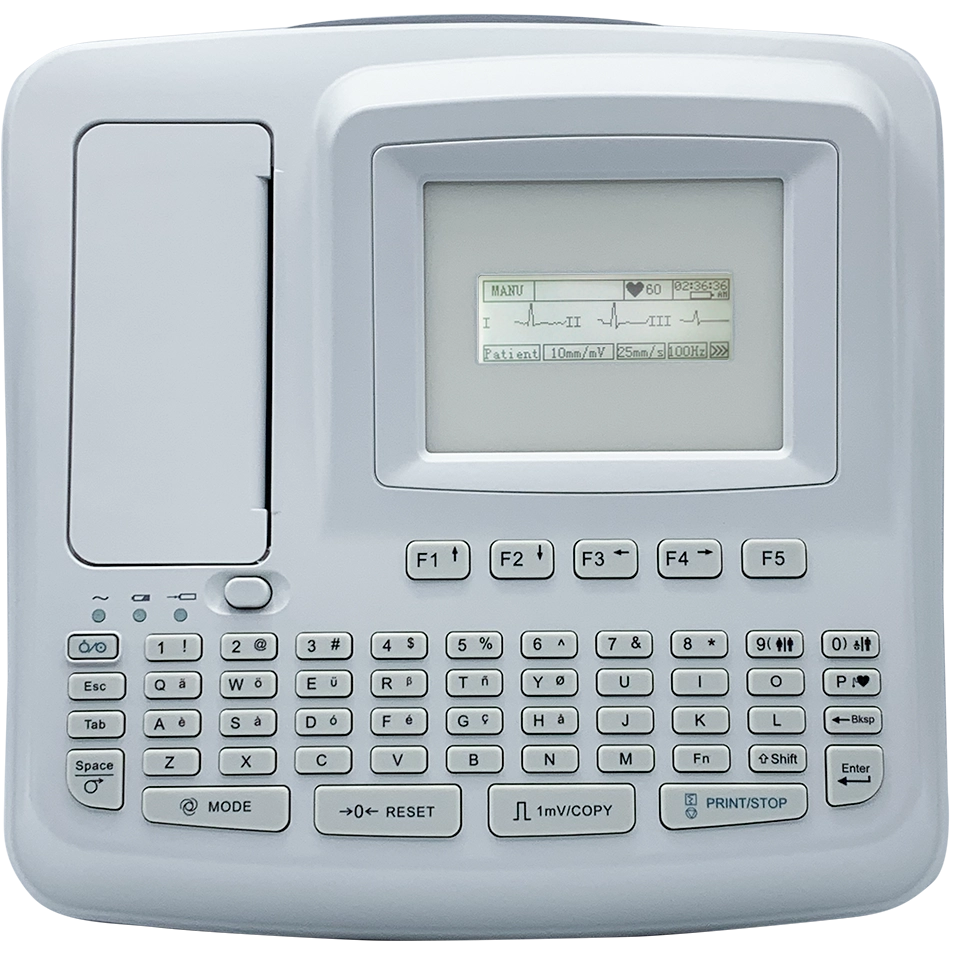

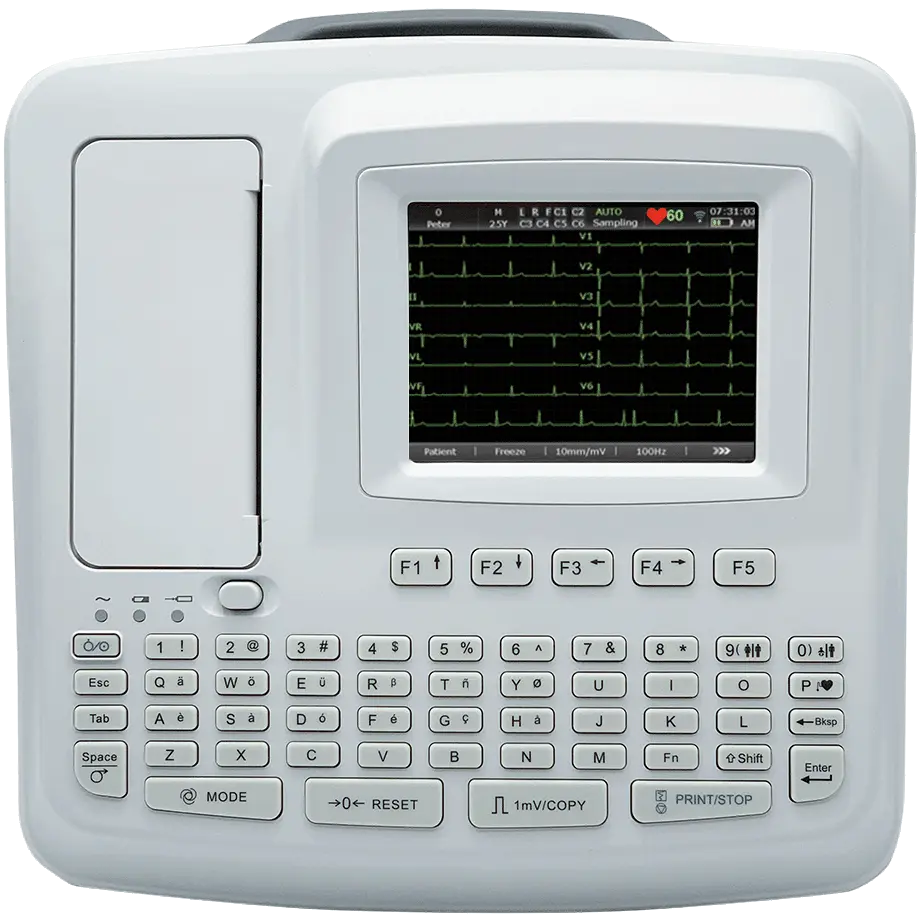

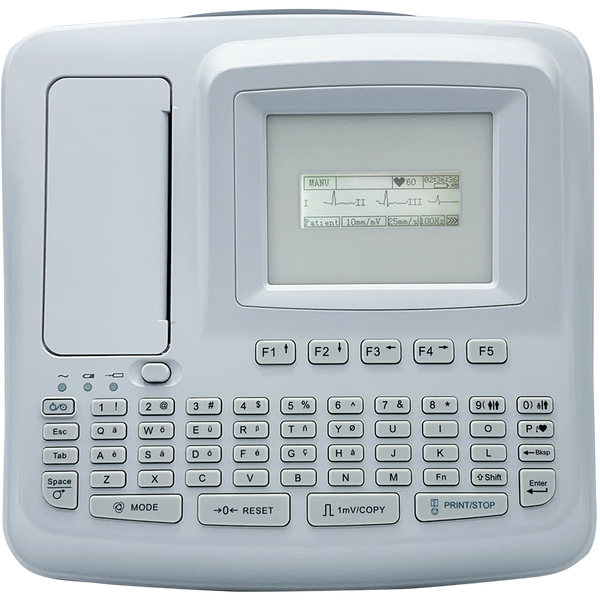

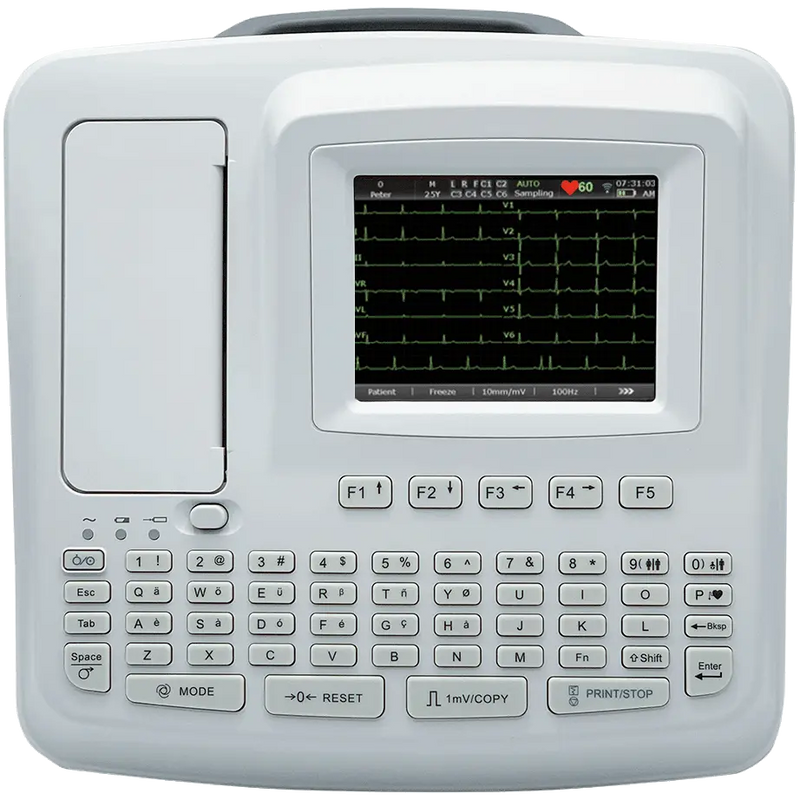

Edan SE-601 6-Channel ECG

Edan SE-601 6-Channel ECG Features

• FDA Approved.
• Heart rate variability (HRV) and R to R Trending analysis.
• Auto analyzing and Diagnostic software (Interpretation).
• Portable, lightweight design.
• Easy data input and operation.
• Alphanumeric keyboard and one-touch operation.
• Built-in rechargeable battery, AC/DC power supply.
• Pacemaker detection which meet the requirements of ANSI/AAMI EC11.
• Automatic analysis and diagnostic software for adults and pediatrics.
• Two-step exercise test with periodic recording.
• Built-in internal thermal printer and external printer.
• Support external archiving: USB flash disk, card reader.
• Data transmission to PC via Ethernet or serial port.
• 2 year extended warranty available for $299.

Edan SE-601 6-Channel ECG Specifications

• Input Circuit: Defibrillator protection.
• Lead: Standard 12 leads.
• Acquisition Mode: 12 channel simultaneous acquisition (10 - 24 s adjustable).
• A/D Converter: 24 bits.
• Sampling rate: 1000 Hz/channel, 10,000 HZ for pacemaker detection.
• Noise Level: ± 5 mVp-p.
• Time Constant: > 3.2 s.
• Frequency Response: 0.05 to 150 Hz.
• Calibration Voltage: 1 mV ± 2%.
• Sensitivity: 2.5, 5, 10, 20, 10/5, AGC (mm/mV).
• Input Impedance: > 50 MΩ.
• Input Circuit Current: Less than 10 µA.
• Noise Level: Less than 12.5 µVp-p.
• Patient Leakage Current: Less than 10 µVp-p (220 to 240 V).
• Patient Auxiliary Current: Less than 0.1 µA (DC).
• Filter:
  • EMG Filter: 25 Hz / 35 Hz / 45 Hz / OFF.
  • Anti-Baseline Drift: 0.05 / 0.15 / 0.25 / 0.5 Hz.
  • Low-Pass Filter: 75 Hz / 100 Hz / 150 Hz.
  • AC Filter: 50 Hz / 60 Hz.
• CMRR: > 115 dB.
• Recording Mode: Auto/Manual/Rhythm.
• Rhythm Lead: Single channel or three channels (selectable).
• Power Supply:
  • AC: 100 - 240 V, 50/60 Hz.
  • 12 V Vehicle-Carried Inverter.
  • Li-on battery.
• Battery: Built-in rechargeable Li-on battery, 2200 mAh, 14.8 V for six hours general use or 280 copies ECGs continuous printing.
• Recorder: Thermal printer.
• Record Paper: 110 mm x 140 mm x 144 p (Z-fold).
• Paper Speed: 5 mm/s, 6.25 mm/s, 10 mm/s, 12.5 mm/s, 25 mm/s, 50 mm/s (± 3%).
• Weight: 6.6 lbs (3 kg) including battery and paper.
• Dimensions: 322 mm x 310 mm x 101 mm.

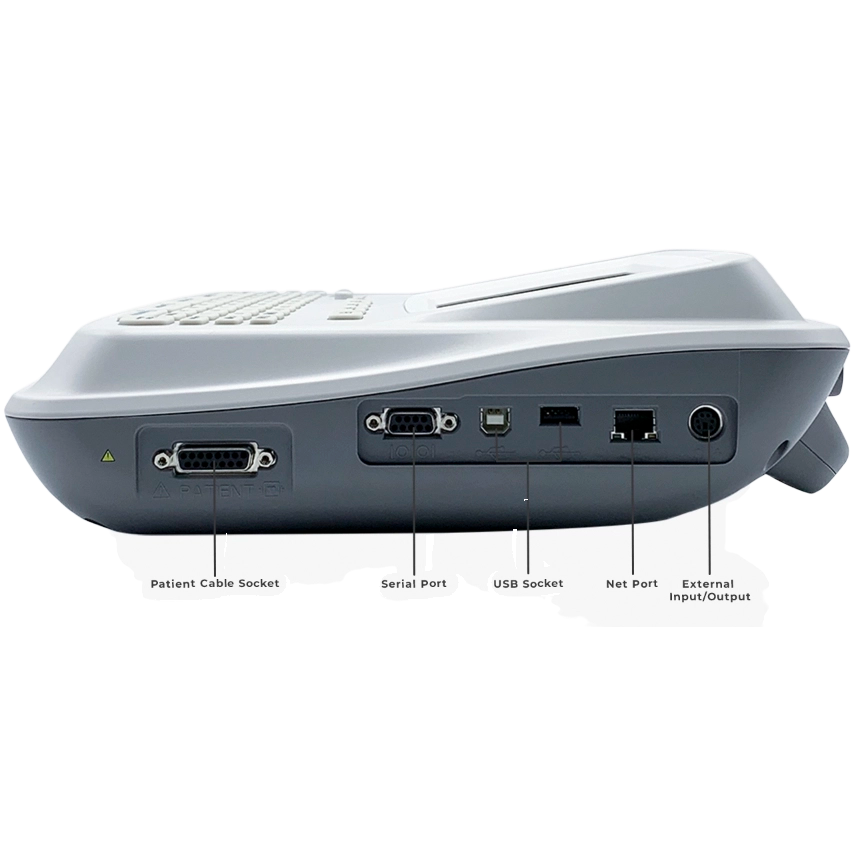

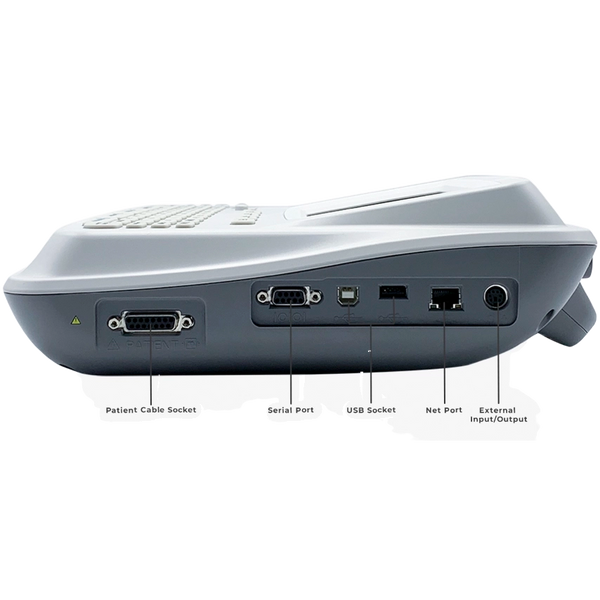

• External Input/Output:
  • Input: > 100 kΩ; Sensitivity 10 mm/V ± 5%.
  • Output: Less than 100 Ω; Sensitivity 1 V/mV ± 5%.
• Communication Interface: Ethernet, RS232.

Edan SE-601 6-Channel ECG Configurations

Edan SE-601 6-Channel ECG Literature

Edan SE-601 Series Electrocardiograph User Manual

Edan SE-601 Series Multi-channel ECG Brochure
