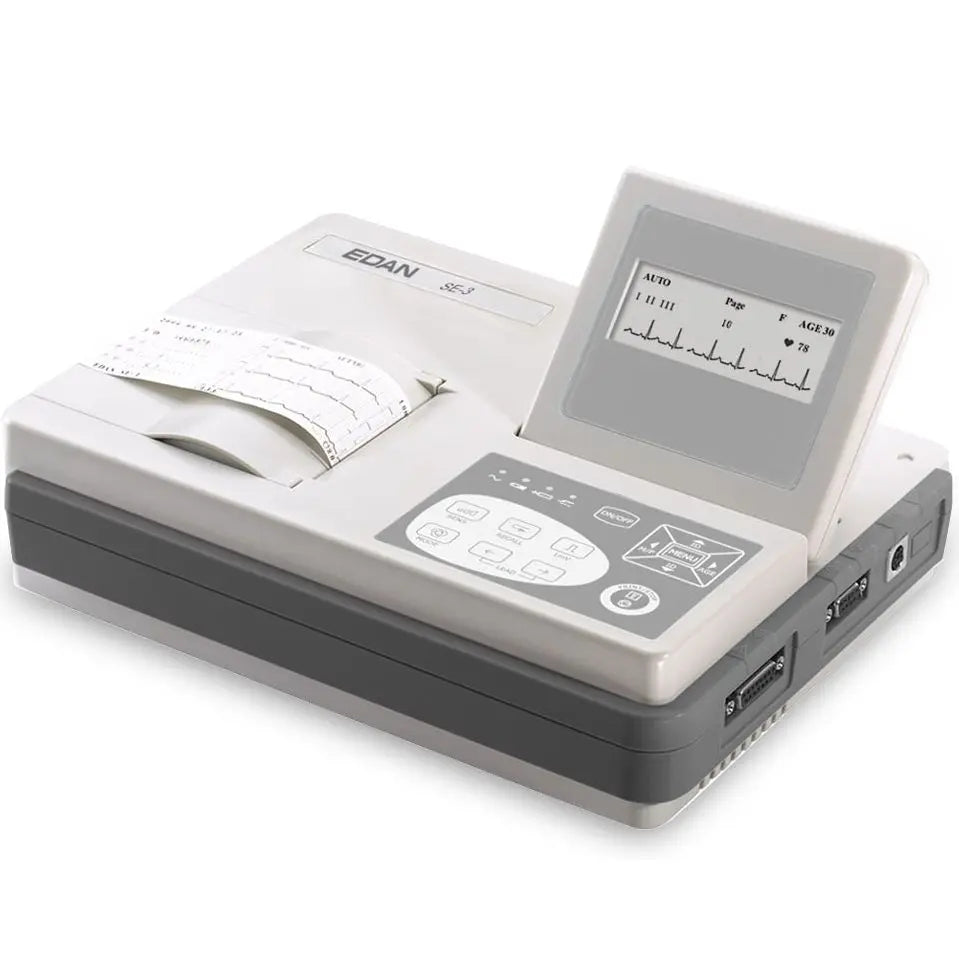

Edan SE-3 ECG

Edan SE-3 ECG Features

• Foldable LCD screen with waveform display and parameters configurable.
• High resolution thermal printer.
• Built-in rechargeable lithium battery, AC/DC power supply.
• Well designed membrane keyboard.
• Muti-languages selectable.
• 100 patient data storage.
• Data transmission to PC via RS232/Ethernet port.
• USB Interface for patient data transportation.
• Compatible with external printer for 12 leads simultaneous printing.
• Complete digital filter, avoiding baseline drift, AC, EMG interference.
• Automatic baseline adjustment to optimize printing position.
• Copy mode for additional copies of the latest auto-tested ECG.
• 3/6/12 leads display simultaneous.
• Lead-Off detection and alert.
• Selectable report options: auto, manual, rhythm, and HRV analysis.
• Interpretation tested with authoritative CSE database (option).

Edan SE-3 ECG Specifications

• Input Circuit: Defibrillator protection built-in.
• Lead: Standard 12 leads.
• Acquisition Mode: 12 leads simultaneously.
• A/D Converter: 12 bits / 24 bits (optional DE12 ECG board).
• Measurement Range: ± 5 mVpp.
• Time Constant: > 3.2 s.
• Frequency Response: 0.05 to 150 Hz (-3 dB).
• Calibration Voltage: 1 mV ± 3%.
• Sensitivity: 2.5, 5, 10, 20 (mm/mV).
• Input Impedance: > 50 MΩ.
• Input Circuit Current: < 0.05 µA.
• Noise Level: < 15 µVp-p.
• Baseline Adjustment: Automatic.
• Patient Leakage Current: < 10 µA (220 to 240 V).
• Patient Auxiliary Current: < 0.1 µA (DC).
• Filter:
  • EMG Filter: 25 Hz / 35 Hz / 45 Hz / OFF.
  • DFT Filter: 0.05 / 0.15 / 0.25 / 0.5 Hz.
  • 0.32/0.67 (optional DE12 ECG board).
  • Lowpass Filter: 150 Hz / 100 Hz / 75 Hz.
  • AC Filter: 50 Hz / 60 Hz.
• CMRR: 110 dB / 115 dB (optional DE12 ECG board).
• Recording Mode:
  • Auto: 3CH, 3/2CH, 3CH+R, 1CH, 1CH+1R.
  • Manual: 3CH, 3/2CH, 1CH.
  • Rhythm: Single rhythm lead.
• Rhythm Lead: Any lead selectable.
• Power Supply:
  • AC: 100 to 115 V / 220 to 240 V, 50/60 Hz.
  • Built-in Rechargeable Li-on Battery: 14.8 V.
  • More than 3 hours continuous recording under battery supply.
• Recorder: Thermal printer.
• Record Paper: 80 mm x 20 m.
• Paper Speed: 5 mm/s, 6.25 mm/s, 10 mm/s, 12.5 mm/s, 25 mm/s, 50 mm/s (± 3%).
• Dimensions: 288 mm x 210 mm x 70 mm.
• Weight: 5.5 lb (2.5 kg).
• Display: LCD.
• External Input/Output:
  • Input: > 100 kΩ ; Sensitivity 10 mm/V ± 5%.
  • Output: < 100 kΩ; Sensitivity 1 V/mV ± 5%.
• Communication Interface: Ethernet, RS232.

Edan SE-3 ECG Configurations

• #SE-3A: Narrow Screen (192 x 64 pixels - 3.5").

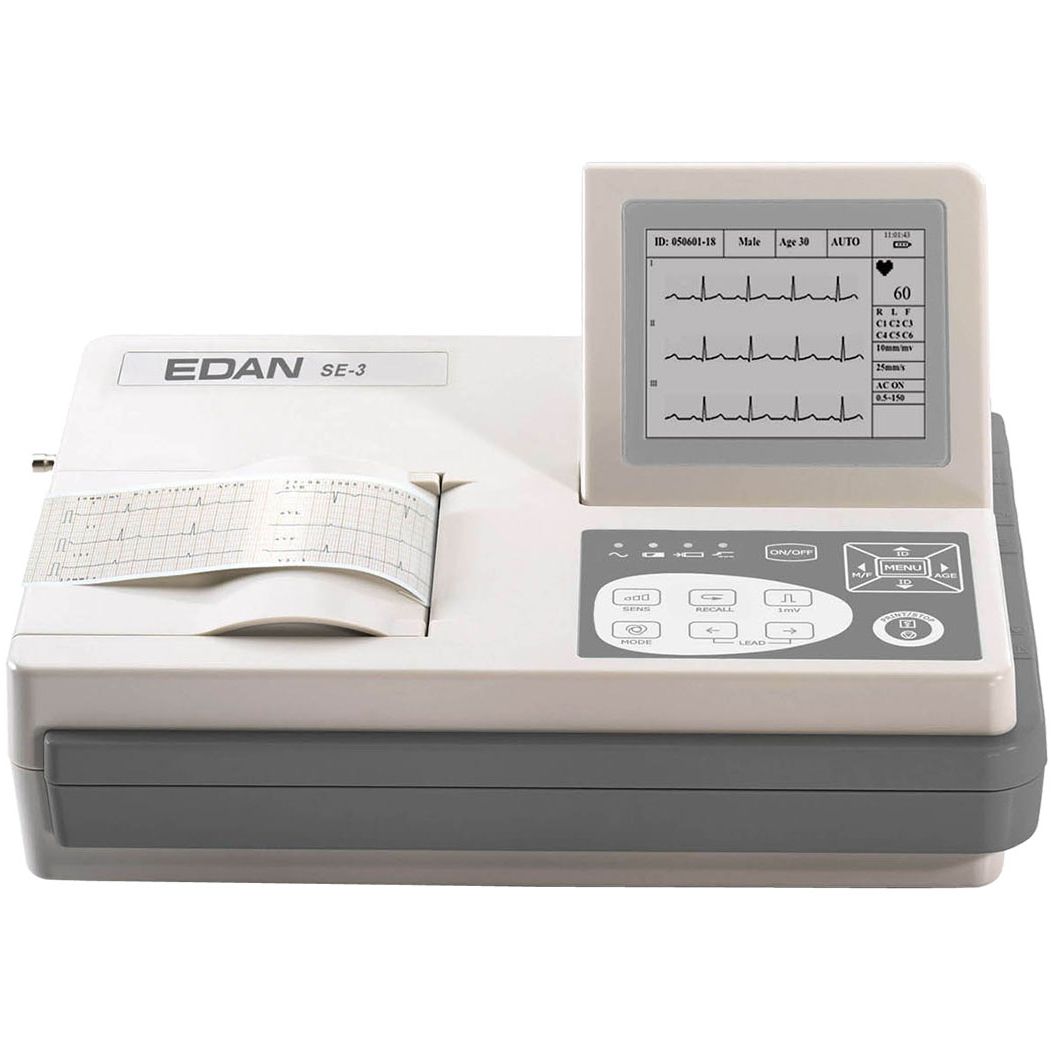

• #SE-3B: Wide Screen (320 x 240 pixels - 4").

Edan SE-3 ECG Literature

Edan SE-1/SE-3 Single/Three-channel ECG Brochure

Edan SE-3 Electrocardiograph User Manual
