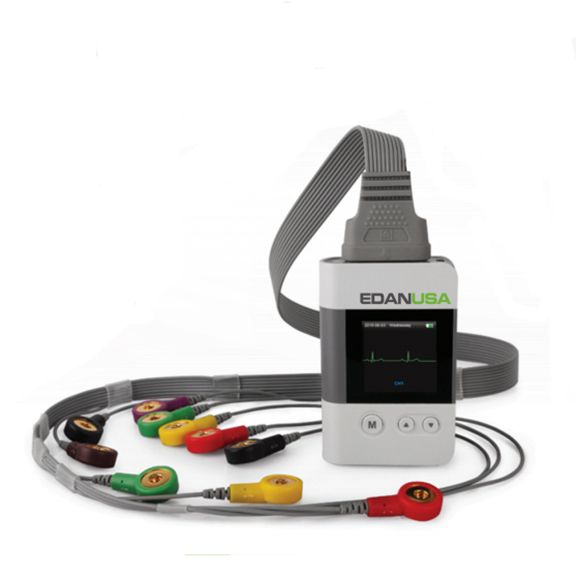

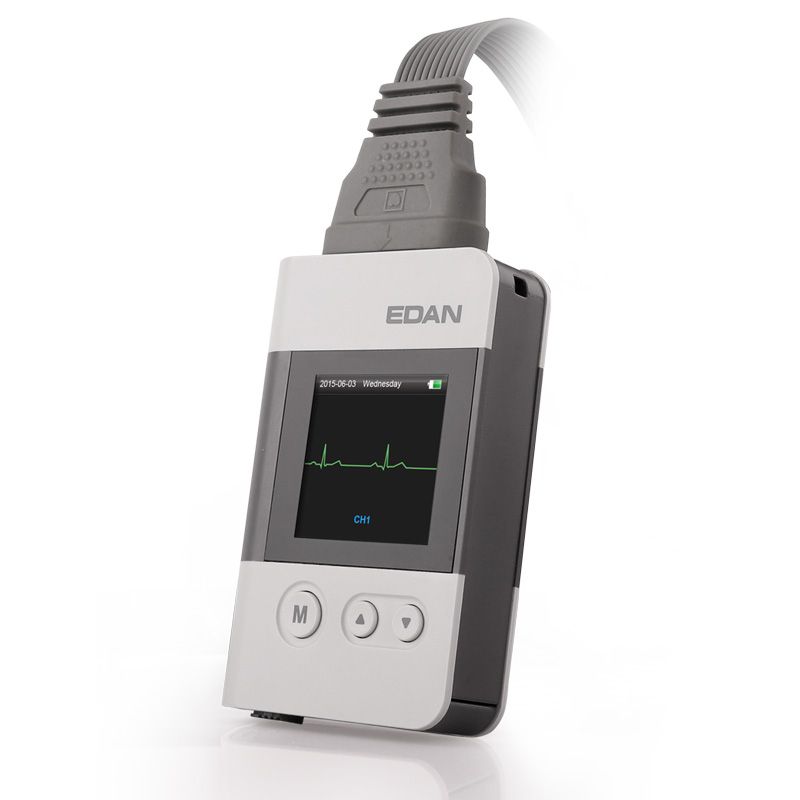

Edan SE-2012 12-Channel Holter System

Edan SE-2012 12-Channel Holter System
Edan SE-2012 12-Channel Holter System - with cable
Edan SE-2012 12-Channel Holter System
Edan SE-2012 12-Channel Holter System - with cable
Key Features
  • SKU: EDN-SE-2012
  • Condition: Factory New
  • Country of Origin: China
  • Warranty: 2 Years
  • Weight: 0.11 lb
  • 12-channel digital recording
  • Waterproof design
  • Real-time waveforms display on the recorder
  • Pacemaker detection

  • Learn more:

Contact The Manufacturer
  • MFR: Edan Ships from Manufacturer
  • MPN: SE-2012
  • Phone: (888) 850-4597
$3,234.00 $2,200.00

+Free Shipping*

Est. Delivery:
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Shop with Confidence

Free Shipping

+

Free Returns

Payment Options

+

Price Match Guarantee

Sales Tax Exemption

+

Dedicated Account Managers

Description

The Edan SE-2012 12-Channel Holter System (#SE-2012) is a light-weight and compact digital recorder. Designed to help optimize workflow, this innovative recorder boasts 12-channel digital recording capabilities and a waterproof design with IP27 level protection from damages like water and dust. It also allows for pacemaker detection and up to eight days of recording with only a single AAA battery.

Warranty: 2 Years.

Note: Software is NOT included. It can be purchased separately as part of the Edan Holter Analysis Software Kit (#02-04-243093).

Features

Edan SE-2012 12-Channel Holter System Features

  • Light-weight recorder.
  • Waterproof design.
  • 12-channel digital recording.
  • Real-time waveforms display on the recorder.
  • Pacemaker detection.
  • 8 days of recording with only one AAA battery.

Specifications

Edan SE-2012 12-Channel Holter System Specifications

  • Dimensions: 2.6" H x 2.1" W x 0.63" D.
  • Weight: 0.11 lb.
  • Keys: 3.
  • Power Supply Type: 1 AAA Battery.
  • Battery Life: 8 Days.
  • Sampling Rate: 128-1,024 Hz.
  • Effective A/D Resolution: 8/10/12/16 bits.
  • Frequency Response: 0.05 Hz - 60 Hz.
  • Recording Period: 24-96 hours.
  • Memory Type: SD card (512 M / 1 G / 2 G).
  • Software Compatibility: Holter Recorder Software (not included).

Literature

Edan SE-2012 12-Channel Holter System Literature

Edan SE-2003 & SE-2012 Holter System Brochure

Frequently asked questions

What type of battery does the Edan SE-2012 Holter System use?

The Edan SE-2012 Holter System uses one AAA battery.

What is the maximum recording time?

The Edan SE-2012 provides extended battery life optimized for long-term cardiac monitoring. It can perform continuous digital recording for up to eight days (96 hours) powered by just a single AAA battery. This feature greatly streamlines the clinical workflow by reducing the need for frequent battery changes during monitoring periods.

Is the Holter analysis software included with the Edan SE-2012?

No, the Holter Analysis Software Kit is sold separately.

What is the waterproof rating of the Edan SE-2012 Holter System?

The Edan SE-2012 Holter System has a waterproof rating of IP27, offering protection against water and dust.

What is the sampling rate of the Edan SE-2012?

The sampling rate of the Edan SE-2012 is between 128-1,024 Hz.

Does the Edan SE-2012 Holter System have pacemaker detection?

Yes, the Edan SE-2012 Holter System has pacemaker detection capabilities.

What type of memory card does the Edan SE-2012 use, and what sizes are supported?

The Edan SE-2012 uses an SD card for memory storage, and it supports sizes of 512 MB, 1 GB, and 2 GB.

How many channels does the Edan SE-2012 Holter System record?

The Edan SE-2012 Holter System offers 12-channel digital recording for comprehensive cardiac data capture.

What are the dimensions and weight of the Edan SE-2012 Holter System?

The Edan SE-2012 Holter System has the following dimensions: 2.6” H x 2.1” W x 0.63” D and weighs only 0.11 lb.

How does it optimize clinical workflow?

The Edan SE-2012 Holter System optimizes clinical workflow through its compact and lightweight design (0.11 lb, 2.6” H x 2.1” W x 0.63” D), which enhances portability and patient comfort. It offers an extended recording time of up to eight days on a single AAA battery, minimizing interruptions for battery changes. Additionally, its 12-channel digital recording capability ensures comprehensive and efficient data capture.
