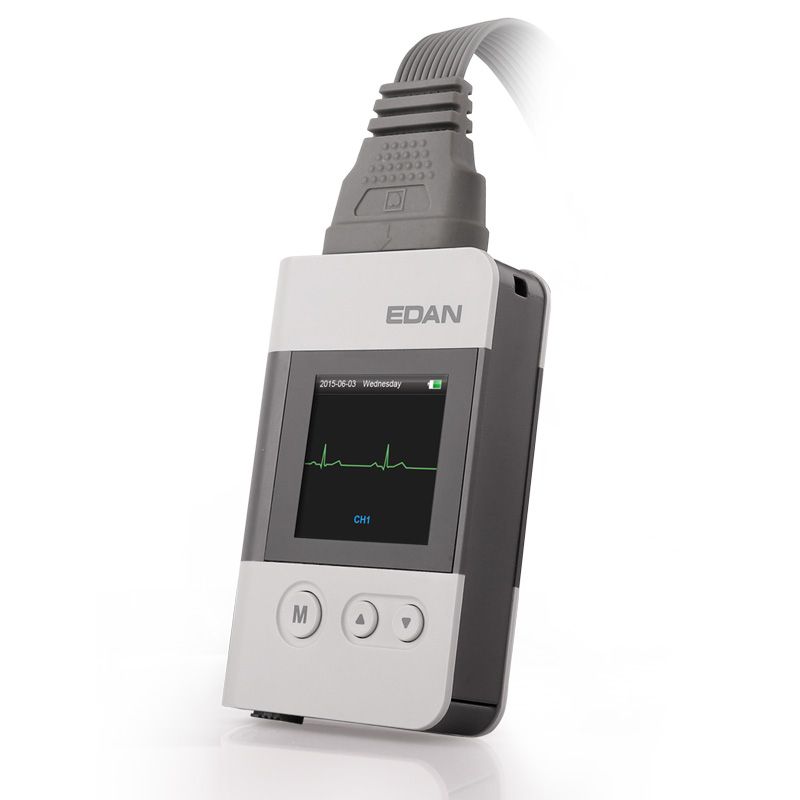

Edan SE-2003 3-Channel Holter System

Edan SE-2003 3-Channel Holter System

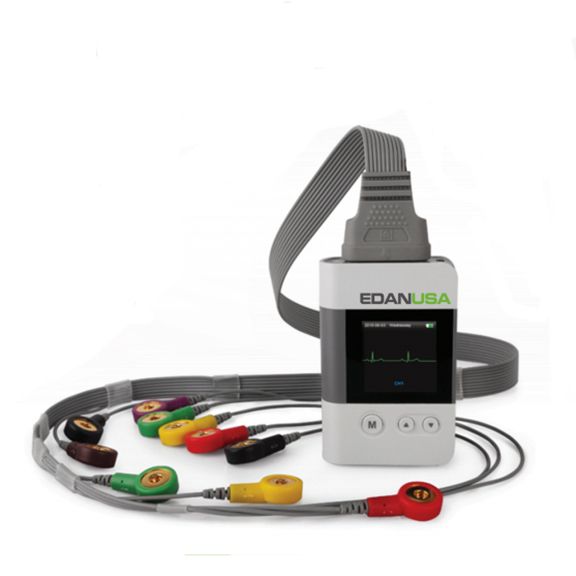

Edan SE-2003 3-Channel Holter System - with cable
Edan SE-2003 3-Channel Holter System
Edan SE-2003 3-Channel Holter System - with cable
Key Features
  • SKU: EDN-SE-2003
  • Condition: Factory New
  • Country of Origin: China
  • Warranty: 2 Years
  • Weight: 2.13 lb
  • 3-channel digital recording
  • Waterproof design
  • Real-time waveforms display on the recorder
  • Pacemaker detection

  • Learn more:

Contact The Manufacturer
  • MFR: Edan Ships from Manufacturer
  • MPN: SE-2003
  • Phone: (888) 850-4597
$2,430.00 $1,600.00

+Free Shipping*

Est. Delivery:
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Shop with Confidence

Free Shipping

+

Free Returns

Payment Options

+

Price Match Guarantee

Sales Tax Exemption

+

Dedicated Account Managers

Description

The Edan SE-2003 3-Channel Holter System (#SE-2003) is a light-weight and compact digital recorder. Designed to help optimize workflow, this innovative recorder boasts 3-channel digital recording capabilities and a waterproof design with IP27 level protection from damages like water and dust. It also allows for pacemaker detection and up to eight days of recording with only a single AAA battery.

Warranty: 2 Years.

Note: Software is not included.

Features

Edan SE-2003 3-Channel Holter System Features

  • Light-weight recorder.
  • Waterproof design.
  • 3-channel digital recording.
  • Real-time waveforms display on the recorder.
  • Pacemaker detection.
  • Eight days of recording with only one AAA battery.

Specifications

Edan SE-2003 3-Channel Holter System Specifications

  • Dimensions: 2.6" H x 2.1" W x 0.63" D.
  • Weight: 0.11 lb.
  • Keys: 3.
  • Power Supply Type: 1 AAA Battery.
  • Battery Life: 8 Days.
  • Sampling Rate: 128-1,024 Hz.
  • Effective A/D Resolution: 8/10/12/16 bits.
  • Frequency Response: 0.05 Hz - 60 Hz.
  • Recording Period: 24-96 hours.
  • Memory Type: SD card (512 M / 1 G / 2 G).
  • Software Compatibility: Holter Recorder Software (not included).

Literature

Edan SE-2003 3-Channel Holter System Literature

Edan SE-2003 & SE-2012 Holter System Brochure

Frequently asked questions

Does the Edan SE-2003 offer strong waterproof protection?

Yes, the Edan SE-2003 Holter System is engineered for high durability. It features a waterproof design with an IP27 rating. This rating signifies robust protection against both water and dust ingress, ensuring reliable performance even when exposed to moisture.

What is the recording period of the Edan SE-2003 Holter System?

The Edan SE-2003 is capable of high-fidelity 3-channel digital ECG recording for monitoring sessions ranging from 24 hours up to 96 hours (4 days).

Additionally, the system features extremely efficient power management:

  • It operates using a single AAA battery.
  • This provides an extended battery life of up to 8 days of continuous recording, ensuring power availability for the maximum recording duration.
What are the dimensions and weight of the Edan SE-2003 Holter System?

The device’s dimensions are 2.6” H x 2.1” W x 0.63” D, and it weighs only 0.11 lb, making it comfortable for patients to wear.

What memory card type and sizes are supported?

The Edan SE-2003 Holter System utilizes SD cards for storing recorded patient data. It is compatible with the following specific memory card sizes:

  • 512 MB
  • 1 GB
  • 2 GB
What are the sampling rate and A/D resolution specifications?

The Edan SE-2003 Holter system offers precise data acquisition with the following technical specifications:

  • Sampling Rate: Ranges from 128 Hz to 1,024 Hz.
  • Effective A/D Resolution: Selectable options include 8, 10, 12, or 16 bits.
What is the frequency response of the Edan SE-2003 Holter System?

The Edan SE-2003 Holter System has a frequency response range of 0.05 Hz to 60 Hz.

Does the system offer 3-channel digital recording?

Yes, the Edan SE-2003 Holter system is specifically designed for 3-channel digital ECG recording, enabling high-fidelity data acquisition for monitoring sessions up to 96 hours. This advanced capability is supported by robust technical specifications:

  • Frequency Response: 0.05 Hz to 60 Hz
  • Effective A/D Resolution: Flexible options including 8, 10, 12, or 16 bits
What is included with the SE-2003 Holter System?

The Edan SE-2003 Holter System package typically includes the essential hardware for data acquisition:

  • Holter Recorder Unit (The main device)
  • Patient Cable/Connector (For connecting to the ECG electrodes)

Please Note: The necessary Holter Recorder Software required for analyzing the recorded data is not included with this system and must be acquired separately.

Does the Edan SE-2003 Holter System display real-time waveforms?

Yes, the Edan SE-2003 Holter System features real-time waveform display on the recorder.

Is advanced pacemaker detection included?

Yes, the Edan SE-2003 Holter System is equipped with integrated pacemaker detection functionality.

This is a key feature that ensures accurate and comprehensive arrhythmia analysis when monitoring patients who have pacemakers.
