- Condition: Factory New
- Warranty: 3 Years
- Weight: 24.5 lb
- The full alphanumeric keyboard combines with shortcut function keys for stress tests, supporting both resting ECG and exercise ECGs all in one

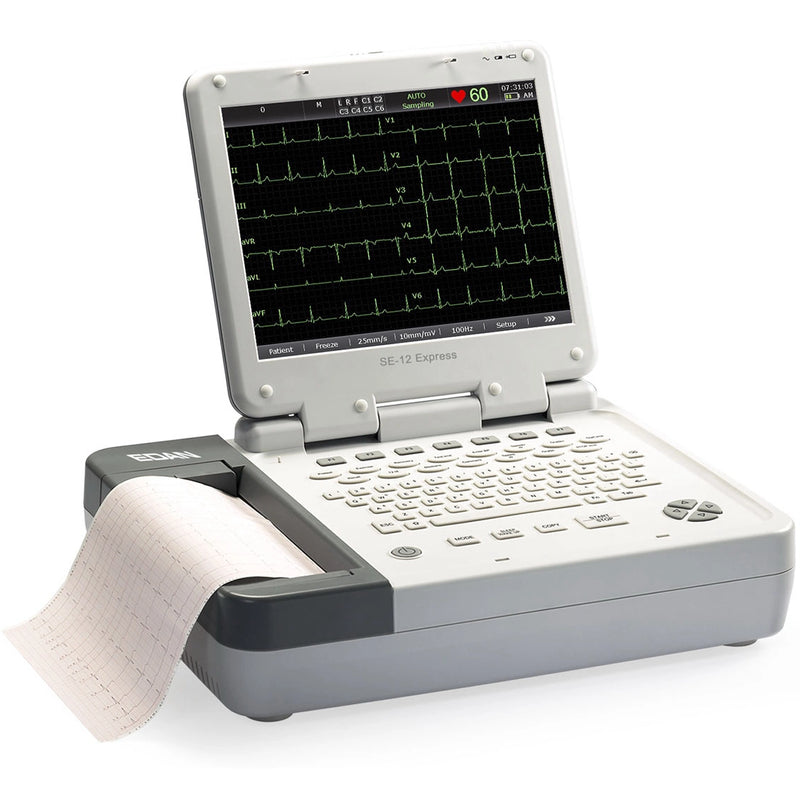

- 12.1" high-resolution foldable color TFT touch-screen with grid display
- One touch operation with age and gender shortcuts
- 200 ECGs internal memory which can be enlarged by USB flash disk
-
Learn more:
- MFR: Edan Ships from Manufacturer
- MPN: SE-12 EXPRESS
- Phone: (888) 850-4597
Frequently asked questions
Does the ECG feature robust anti-noise technology?
Yes, the Edan SE-12 Express is engineered for superior signal clarity and noise rejection, ensuring highly reliable ECG readings even in environments with electrical interference. It achieves this high-fidelity performance through several advanced technologies:
- High Common Mode Rejection Ratio (CMRR): The system maintains a CMRR of over 115 dB, which robustly minimizes environmental electrical interference and noise.
- Advanced Digital Filtering: Comprehensive digital filters are applied to eliminate common artifacts, specifically resisting baseline drift, AC interference, and electromyographic (EMG) interference.
- 24-Bit A/D Converter: The use of an advanced 24-bit Analog-to-Digital converter technology maximizes accuracy by enabling the precise detection and capture of even the weakest ECG signals.
Does the Edan SE-12 Express ECG have arrhythmia detection capabilities?
Yes, the Edan SE-12 Express ECG includes automatic arrhythmia detection and recording, which helps in identifying irregular heartbeats.
Can the Edan SE-12 Express ECG perform ST analysis?
Yes, the Edan SE-12 Express ECG can perform ST analysis and generate reports, aiding in the assessment of cardiac ischemia.
What items are included with the ECG system?
The Edan SE-12 Express 12-Channel ECG comes complete with all essential components and accessories required for immediate clinical use. It is supplied as a Factory New unit, and the standard package includes:
- Patient Connection: ECG Cable (4 mm, banana connector, AHA), Bio ProTech Resting Tab Electrodes, and Unomedical 10-Lead Universal Clips.
- Printing Supplies: Recording Paper (Z-fold, 210 mm x 295 mm x 100 P).
- Power and Backup: Rechargeable Lithium Battery (2200 mAH) with the Fixed Bar for Battery, USA Standard Power Cord, and a 1 A Fuse.
- Documentation: User Manual, Quick Reference Card, and User Guide for Interpretation.
Does the ECG use 24-bit A/D technology?
Yes, the Edan SE-12 Express features advanced 24-bit A/D converter technology. This technology is crucial for maximizing signal fidelity, enabling precise weak signal detection, and ensuring high-quality diagnostic measurements.
To further ensure the accuracy of the readings, the system incorporates comprehensive features to minimize noise and interference:
- High Common Mode Rejection Ratio (CMRR > 115 dB) for superior anti-noise performance.
- Complete digital filters to resist interference from baseline drift, AC power, and electromyography (EMG).
Does the Edan SE-12 Express offer versatile printing options?
Yes, the Edan SE-12 Express is designed with versatile printing and reporting capabilities to support various clinical workflows:
- Built-in Thermal Recorder: It includes a high-resolution thermal recorder capable of printing on both standard thermal paper and A4 size fax paper.
- External USB Support: For added flexibility, the system supports connecting and using external USB printers.
For enhanced data management, you can preview the ECG waveforms and auto-diagnosis results before printing. The system also supports data export in multiple standard formats, including PDF, SCP, FDA-XML, and DICOM.
How much data can the Edan SE-12 Express ECG store?
The Edan SE-12 Express ECG has an internal memory of 200 ECGs, which is expandable via USB flash disk, providing ample storage for patient data.
What data export formats are supported by the Edan SE-12 Express ECG?
The Edan SE-12 Express ECG supports standard ECG formats such as PDF, SCP, FDA-XML, and DICOM data export, facilitating seamless data integration with other systems.
Does it have a reliable power supply?
Yes, the Edan SE-12 Express ECG is designed for easy power management. It includes a built-in rechargeable Lithium battery and can also be powered by AC/DC supply, offering flexibility for various medical environments.
Is the SE-12 Express user-friendly?
Yes, the Edan SE-12 Express is engineered for streamlined workflow and efficient operation in clinical settings. Its design incorporates several features that prioritize ease of use:
- Intuitive Display: It features a large 12.1” high-resolution foldable color TFT touch-screen for clear viewing and simplified navigation.
- Quick Operation: Workflow is optimized with one-touch operation and dedicated age/gender shortcuts to initiate procedures quickly.
- Efficient Data Entry: Data input is facilitated by a full alphanumeric keyboard and support for optional barcode scanning.
- Review Capability: Clinicians can utilize a 120-second ECG waveform freeze and review capability, and preview auto-diagnosis results before printing.
