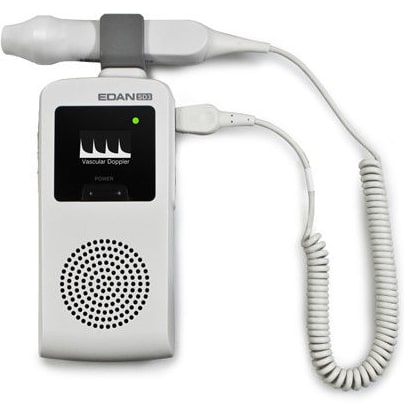

Edan SD3 Vascular Ultrasonic Pocket Doppler

Edan SD3 Vascular Ultrasonic Pocket Doppler
Key Features
  • SKU: EDN-SD3V-04
  • Condition: Factory New
  • Country of Origin: China
  • Warranty: 2 Years
  • Weight: 1.11 lb
  • Plug-and-play design with waterproof interchangeable probes
  • Compact design allows for easy one-hand operation
  • Probe for blood flow detection
  • Real-time monitoring for daily use

  • Learn more:

  • Purchasing Restriction: Medical license or prescription required
Contact The Manufacturer
  • MFR: Edan Ships from Manufacturer
  • MPN: SD3V.04
  • Phone: (888) 850-4597
$239.00 $222.00

+Free Shipping*

Select a Probe
Est. Delivery:
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Shop with Confidence

Free Shipping

+

Free Returns

Payment Options

+

Price Match Guarantee

Sales Tax Exemption

+

Dedicated Account Managers

Description

The Edan SD3 Vascular Ultrasonic Pocket Doppler is used for the assessment of peripheral vascular disease. Compact and versatile, the SD3's biggest asset is its portability which allows for the effective diagnosis of both venous and arterial diseases. The SD3 Vascular Ultrasonic Pocket Doppler includes a carrying case.

Warranty: 2 Years - Free from Defects in Materials and Workmanship.

The 4/5/8 MHz probes can help to assess deep and superficial blood vessels, thus providing a strong audible signal with less noise.

Note: The SD3 Vascular does not have a display screen.

Features

Edan SD3 Vascular Ultrasonic Pocket Doppler Features

  • Plug-and-play design with waterproof interchangeable probes.
  • Compact design allows for easy one-hand operation.
  • Probe for blood flow detection.
  • Real-time monitoring for daily use.
  • Built-in speaker with adjustable volume.
  • AA battery compatibility.

Specifications

Edan SD3 Vascular Ultrasonic Pocket Doppler Specifications

  • Weight: 350 g (including the battery).
  • Dimensions: 168 mm (D) x 31 mm (W) x 67 mm (H).
  • Probe:
    • Weight: < 100 g.
    • Cable Length: 2 m.
    • Dimensions: 25 mm x 115 mm.
  • Power Supply:
    • 3 AA Alkaline Battery LR6:
      • Normal Working Time: ≥ 10 hours.
    • 3 AA Rechargeable NiMH Battery R6:
      • Normal Working Time: ≥ 10 hours.
      • Charge Mode: Rechargeable NiMH battery charger.
      • Charge Time: About 5 hours.
  • Audio Output Power: 2 W.
  • Vascular:
    • Operating Mode: CW.
    • Working Frequency: 4 MHz ± 10% / 5 MHz ± 10% / 8 MHz ± 10%.
    • Nominal Frequency: 4 MHz / 5 MHz / 8 MHz.
    • 4 MHz / 5 MHz / 8 MHz Vascular Probe:
      • p-: < 1 MPa.
      • Iob: < 25 mW/cm2.
      • Ispta: < 100 mW/cm2.
    • Effective Radiating Area of Transducer:
      • 4 MHz / 5 MHz: 32 mm2 ± 15%.
      • 8 MHz: 14 mm2 ± 15%.
  • Auto Power-Off: With probe replacement, or one minute after no signal or operation.

Probes

Edan SD3 Vascular Ultrasonic Pocket Doppler Probes

  • #SD3V.04: 4 MHz.
  • #SD3V.05: 5 MHz.
  • #SD3V.08: 8 MHz.

Literature

Frequently asked questions

Which probe frequency should I choose for my needs?
<p>Choosing the right probe depends on the depth of the vessels you intend to examine:</p>

<ul>
<li><strong>4 MHz and 5 MHz Probes:</strong> These are typically better suited for reaching and assessing <strong>deeper blood vessels</strong>.</li>
<li><strong>8 MHz Probe:</strong> This is generally the preferred choice for detecting flow in <strong>superficial vessels</strong>, making it a common standard for many peripheral vascular assessments.</li>
</ul>

<p>All probe options are interchangeable, providing you with the versatility to adapt the device to different clinical scenarios.</p>
Does the doppler support continuous real-time monitoring?
<p>Yes, the Edan SD3 is designed for <strong>continuous, real-time assessment</strong> of peripheral vascular flow, supporting the diagnosis of both venous and arterial diseases. This is achieved through its operational design:</p>

<ul>
<li><strong>Operating Mode:</strong> It uses the <strong>Continuous Wave (CW) mode</strong> to ensure constant, uninterrupted signal monitoring.</li>
<li><strong>Auditory Output:</strong> Since this model operates without a display screen, all diagnostic information is conveyed immediately through high-quality audio feedback via the built-in speaker.</li>
<li><strong>Clear Feedback:</strong> The speaker delivers a powerful <strong>2 W audio output</strong> with adjustable volume, specifically engineered to provide a strong, clear audible signal while minimizing noise.</li>
</ul>
What vascular diseases can it diagnose?
<p>The Edan SD3 Vascular Ultrasonic Pocket Doppler is designed to effectively diagnose both <strong>venous and arterial diseases</strong> associated with peripheral vascular conditions.</p>
Is the SD3 Doppler highly portable?
<p>Yes, the Edan SD3 is engineered for maximum portability, making it ideal for mobile healthcare and quick diagnosis on the go. Its compact design allows for effective, <strong>one-hand operation</strong> in any setting.</p>

<p>Key features that ensure its high portability include:</p>

<ul>
<li><strong>Extremely Lightweight:</strong> The entire device weighs only <strong>350 g</strong> (including the battery).</li>
<li><strong>Compact Size:</strong> Dimensions are 168 mm (D) x 31 mm (W) x 67 mm (H) for comfortable handheld use.</li>
<li><strong>Extended Battery Life:</strong> It operates for <strong>10 hours or more</strong> on three standard AA batteries (alkaline or rechargeable NiMH).</li>
<li><strong>Included Carrying Case:</strong> A protective carrying case is provided for secure transport.</li>
</ul>
Are the interchangeable vascular probes waterproof?
<p>Yes, the Edan SD3 features <strong>waterproof, interchangeable probes</strong>. The system utilizes a plug-and-play design, allowing practitioners to easily swap between 4, 5, or 8 MHz frequencies to suit specific clinical needs.</p>
Does the Doppler use standard AA batteries?
<p>Yes, the Edan SD3 Doppler is designed for high portability and convenience, operating on standard AA batteries. This allows for easy diagnosis in various settings.</p>

<p>Key details regarding the power supply:</p>

<ul>
<li><strong>Battery Type Options:</strong> The device supports both standard <strong>3 AA Alkaline batteries</strong> (LR6) or <strong>3 AA Rechargeable NiMH batteries</strong> (R6).</li>
<li><strong>Extended Working Time:</strong> You can expect reliable, long-lasting use with a working time of <strong>at least 10 hours</strong>.</li>
<li><strong>Power Conservation:</strong> To maximize battery life, the unit features an automatic power-off function that activates after one minute of no signal or operation, or upon probe replacement.</li>
</ul>
How long is the continuous battery life?
<p>The Edan SD3 Vascular Ultrasonic Pocket Doppler is designed for efficient, long-term clinical use, offering at least <strong>10 hours of continuous operational time</strong>.</p>

<h3>Key Power Details:</h3>
<ul>
<li><strong>Battery Versatility:</strong> The device is powered by three standard AA batteries and is compatible with both <strong>Alkaline</strong> and <strong>Rechargeable NiMH</strong> options.</li>
<li><strong>Power Conservation:</strong> To maximize battery life, the unit features an <strong>automatic power-off function</strong> that triggers after one minute of no signal or inactivity, or when the probe is replaced.</li>
</ul>
Does it have auto power-off?
<p>Yes, the Edan SD3 Vascular Ultrasonic Pocket Doppler includes an <strong>automatic power-off</strong> feature designed to conserve battery life and maximize the working time (which is specified as at least 10 hours).</p>

<p>The device automatically powers off under the following conditions:</p>

<ul>
<li>When the probe is replaced.</li>
<li>One minute after no signal or operation is detected.</li>
</ul>
