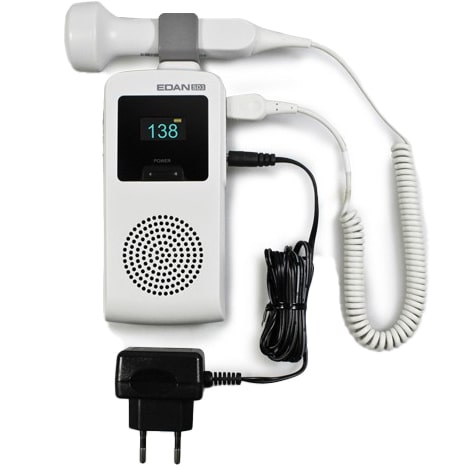

Edan SD3 Plus Ultrasonic Pocket Doppler

Edan SD3 Plus Ultrasonic Pocket Doppler
Key Features
  • SKU: EDN-SD3-Plus-02
  • Condition: Factory New
  • Country of Origin: China
  • Warranty: 2 Years
  • Weight: 2.71 lb
  • Built-in rechargeable Li-ion battery ensures a long working time
  • Compact design makes easy one-handed operation possible
  • Automatic power-off when putting the probe back to the rack
  • Provides real-time monitoring for daily use

  • Learn more:

Contact The Manufacturer
  • MFR: Edan Ships from Manufacturer
  • MPN: SD3-Plus.02
  • Phone: (888) 850-4597
$354.00 $330.00

+Free Shipping*

Est. Delivery:
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Shop with Confidence

Free Shipping

+

Free Returns

Payment Options

+

Price Match Guarantee

Sales Tax Exemption

+

Dedicated Account Managers

Description

The Edan SD3 Plus Ultrasonic Pocket Doppler features your choice of 2, 3, 4, 5, or 8 MHz probe to deliver excellent sensitivity, complete interchangeability, and high durability. Ideally suited for routine fetal heart rate detection, the SD3 Plus is designed for the auscultation (intermittent listening) of fetal sound.

Warranty: 2 Years - Free from Defects in Materials and Workmanship.

The 2 or 3 MHz waterproof probes can be used for the detection of fetal heart rate as a general indication of fetal well being and also to verify fetal heart viability following patient trauma. The 4, 5, or 8 MHz probes are for vascular diagnosis.

Features

Edan SD3 Plus Ultrasonic Pocket Doppler Features

  • Built-in rechargeable Li-ion battery ensures a long working time.
  • Compact design makes easy one-handed operation possible.
  • 2 MHz probe with deep penetration for late term-pregnancy and overweight patients.
  • 3 MHz probe may detect fetal heartbeat as early as 9 weeks.
  • 4/5/8 MHz probe allows for blood flow detection.
  • Automatic power-off when putting the probe back to the rack.
  • Provides real-time monitoring for daily use.
  • Bright OLED screen with real-time FHR display.
  • Also compatible with AA batteries.

Specifications

Edan SD3 Plus Ultrasonic Pocket Doppler Specifications

  • Weight: 350 g (including the battery).
  • Dimensions: 168 mm (D) x 31 mm (W) x 67 mm (H).
  • Probe:
    • Cable Length: 2 m.
    • Weight: < 100 g.
    • Dimensions (Obstetrical): 39 mm x 140 mm.
    • Dimensions (Vascular): 25 mm x 115 mm.
  • Display: 0.96" OLED Double Color Screen.
  • Power Supply:
    • Nominal Capacity: 2600 mAh.
    • Nominal Voltage: 3.7 V.
    • Normal Working Time: ≥ 16 hours.
    • Charge Time: ≤ 6 hours.
    • Work Temperature:
      • Charging: 0 ~ 45 °C (32 ~ 113 °F).
      • Discharging: -20 ~ 60 °C (-4 ~ 140 °F).
    • Storage Temperature:
      • Within 1 Month: 0 ~ 45 °C (32 ~ 113 °F).
      • 1 ~ 3 Month: 0 ~ 35 °C (32 ~ 95 °F).
      • 3 ~ 12 Month: 0 ~ 25 °C (32 ~ 77 °F).
  • Audio Output Power: 2 W.
  • FHR:
    • Operating Mode: CW.
    • Working Frequency: 2 MHz ± 10% / 3 MHz ± 10%.
    • Nominal Frequency: 2 MHz / 3 MHz.
    • 2 MHz / 3 MHz Obstetrical Probe:
      • p-: < 1 MPa.
      • Iob: < 20 mW/cm2.
      • Ispta: < 100 mW/cm2.
    • Effective Radiating Area of Transducer: 245 mm2 ± 15%.
    • Measurement Range: 50 ~ 240 bpm.
    • Resolution: 1 bpm.
    • Accuracy: ± 2 bpm.
    • Sensitivity: 9 Weeks Gestation (3 MHz).
  • Vascular:
    • Operating Mode: CW.
    • Working Frequency: 4 MHz ± 10% / 5 MHz ± 10% / 8 MHz ± 10%.
    • Nominal Frequency: 4 MHz / 5 MHz / 8 MHz.
    • 4 MHz / 5 MHz / 8 MHz Vascular Probe:
      • p-: < 1 MPa.
      • Iob: < 25 mW/cm2.
      • Ispta: < 100 mW/cm2.
    • Effective Radiating Area of Transducer:
      • 4 MHz / 5 MHz: 32 mm2 ± 15%.
      • 8 MHz: 14 mm2 ± 15%.
  • Auto Power-Off: With probe replacement, or one minute after no signal or operation.

Probes

Edan SD3 Plus Ultrasonic Pocket Doppler Probes

  • #SD3-Plus.02: 2 MHz.
  • #SD3-Plus.03: 3 MHz.
  • #SD3-Plus.04: 4 MHz.
  • #SD3-Plus.05: 5 MHz.
  • #SD3-Plus.08: 8 MHz.

Literature

Frequently asked questions

What interchangeable probe frequencies are offered?

The Edan SD3 Plus supports five interchangeable Continuous Wave (CW) probes, providing versatility for both obstetrical and vascular diagnostics. The available frequencies and their specific applications are:

  • Obstetrical (Fetal Heart Rate Detection):
    • 2 MHz: Waterproof, designed for deeper penetration, suitable for late-term pregnancy or patients with a higher BMI.
    • 3 MHz: Waterproof, high sensitivity, capable of detecting fetal heartbeats as early as 9 weeks gestation.
  • Vascular Diagnosis (Blood Flow Assessment):
    • 4 MHz, 5 MHz, and 8 MHz: These specialized probes are utilized for non-invasive peripheral vascular assessments.
Does the high-capacity battery allow long operating hours?

Yes, the Edan SD3 Plus is designed for extended clinical use, featuring a robust power system:

  • Built-in Rechargeable Li-ion Battery: Provides a long normal working time of 16 hours or more on a full charge.
  • Quick Recharge: The battery requires 6 hours or less for a full recharge.
  • Dual Power Compatibility: For maximum operational flexibility, the unit is also compatible with standard AA batteries.
  • Energy Saving: An automatic power-off function helps conserve battery life by activating when the probe is docked or after one minute of inactivity.
Does it offer a wide FHR measurement range?

Yes, the Edan SD3 Plus Ultrasonic Pocket Doppler offers a wide FHR (Fetal Heart Rate) measurement range:

  • Range: 50 ~ 240 bpm

This broad range allows for comprehensive and accurate fetal heart rate detection.

Does this Doppler support fetal and vascular diagnosis?

Yes, the Edan SD3 Plus Doppler is highly versatile, supporting both fetal heart rate monitoring and vascular diagnosis by utilizing its interchangeable probes.

The specific application is determined by the probe frequency selected:

  • Obstetrical Use (Fetal Heart Rate): Use the 2 MHz or 3 MHz probes. The 3 MHz probe can detect heartbeats as early as 9 weeks gestation. The 2 MHz probe is suitable for deep penetration, often necessary for late-term or overweight patients.
  • Vascular Diagnosis: Use the 4 MHz, 5 MHz, or 8 MHz probes, which are specifically designed for non-obstetrical blood flow assessment.
Does this compact doppler have an auto power-off feature?

Yes, the Edan SD3 Plus features an automatic power-off function to help conserve the long-lasting battery life.

The device will automatically shut off under the following conditions:

  • When the probe is replaced (indicating it is not in use).
  • One minute after no signal is detected or no operation occurs.
Does the doppler feature a high-quality OLED display?

Yes, the Edan SD3 Plus is equipped with a high-quality display designed for optimal visibility during clinical use, even during one-handed operation.

Display Specifications:

  • Type: 0.96-inch OLED Double Color Screen
  • Function: Provides clear, real-time display of the Fetal Heart Rate (FHR).

The device ensures highly precise FHR measurements:

  • Measurement Range: 50 ~ 240 bpm
  • Resolution: 1 bpm
  • Accuracy: \u00b1 2 bpm
What comes in the SD3 Plus Doppler package?

The Edan SD3 Plus Doppler package includes all components necessary for immediate clinical use and continuous operation, emphasizing its flexibility and power options:

  • Main Doppler Unit: The compact, handheld device featuring the bright 0.96” OLED double color screen.
  • Interchangeable Probe: Your selection of one interchangeable probe (2, 3, 4, 5, or 8 MHz) optimized for either obstetrical or vascular applications.
  • Dual Power Components: The unit includes a built-in rechargeable Li-ion battery (offering 16+ hours of working time) and the corresponding charging cable/adapter.
  • User Manual: The required documentation for operation.
Is a high-capacity rechargeable battery included?

Yes, the Edan SD3 Plus features robust dual power capability, centering around a high-capacity rechargeable Li-ion battery built into the main unit.

This provides excellent operational flexibility and extended use:

  • High Capacity: The built-in Li-ion battery has a nominal capacity of 2600 mAh.
  • Long Working Time: It offers a minimum of 16 hours of continuous working time on a full charge.
  • Fast Recharge: The battery requires 6 hours or less for a complete recharge.

For added convenience and clinical flexibility, the unit is also compatible with standard AA batteries. Furthermore, the device conserves power using an automatic power-off feature that activates after one minute of inactivity or when the probe is docked.
