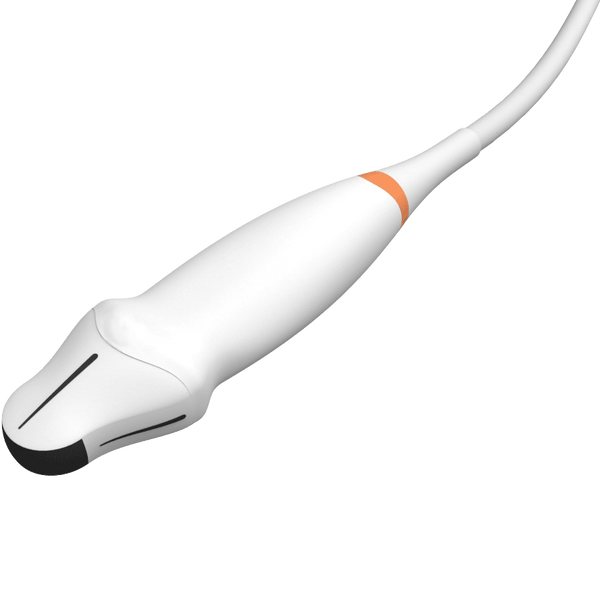

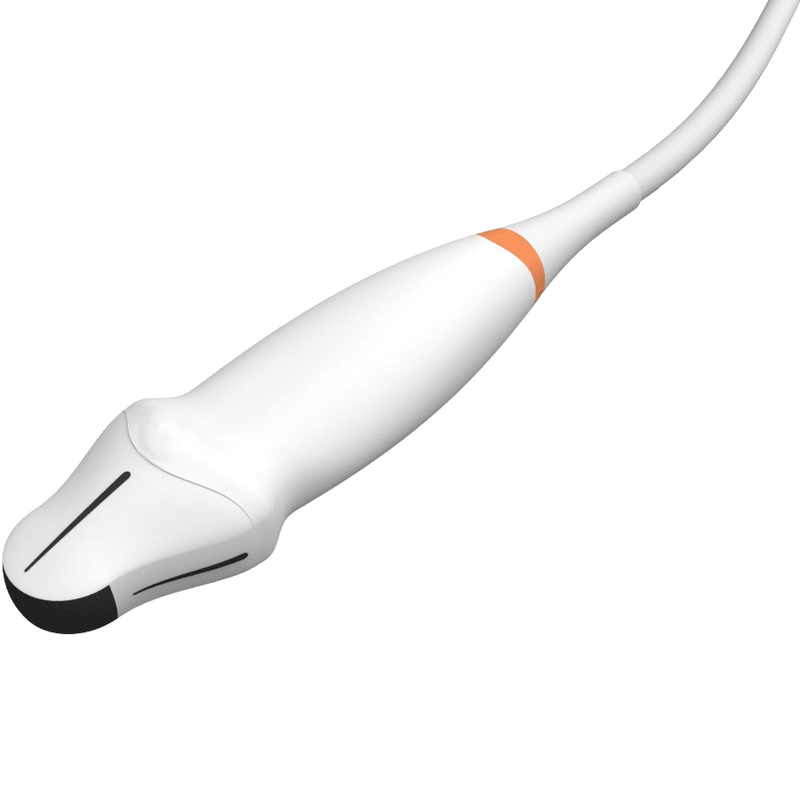

Edan MC9-3TQ Micro Convex Transducer

Edan MC9-3TQ Micro Convex Transducer
Key Features
  • SKU: EDN-MC9-3TQ
  • Condition: Factory New
  • Warranty: 1 Year
  • Designed for use with the Acclarix Series diagnostic ultrasound systems, including the AX2, AX3, AX7, and LX9
  • Application: Pediatric, abdomen, neonatal, musculoskeletal, and peripheral vascular
  • Elements: 128
  • Convex Radius: 10 mm
Contact The Manufacturer
  • MFR: Edan Ships from Manufacturer
  • MPN: MC9-3TQ
  • Phone: (888) 850-4597
$2,850.00

+ Free shipping

Estimated Delivery:
<p>Earn%20[points_amount]%20when%20completing%20this%20purchase.</p>

Shop with Confidence

Description

The Edan MC9-3TQ Micro Convex Transducer is designed for use with the Acclarix Series diagnostic ultrasound systems, including the AX2, AX3, AX7, and LX9.

Warranty: 1 Year - Free from Defects in Materials and Workmanship.

A biopsy guide is available and sold separately.

Specifications

Edan MC9-3TQ Micro Convex Transducer Specifications

  • Application: Pediatric, abdomen, neonatal, musculoskeletal, and peripheral vascular.
  • Bandwidth:
    • @ -20 dB: 2 to 11 MHz.
    • @ -6 dB: 3 to 9 MHz.
  • Elements: 128.
  • Convex Radius: 10 mm.
  • Display Depth: 15 cm.
  • Cable Length: 2.0 m.
