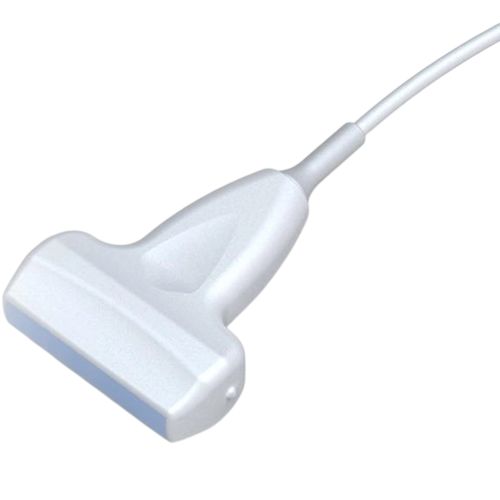

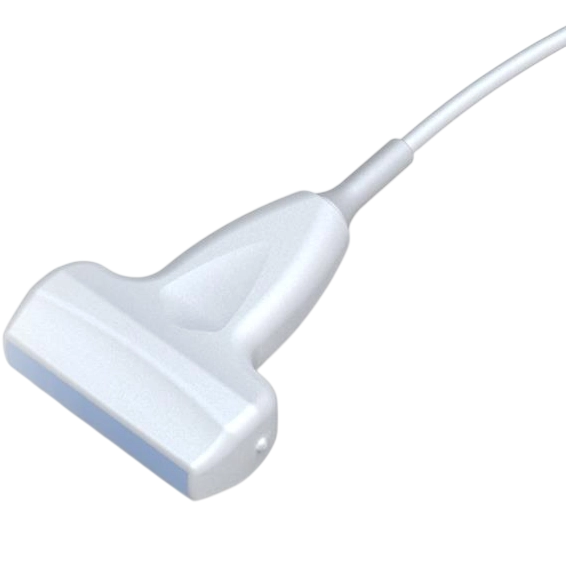

Edan Linear Array Transducer L761-2

Edan Linear Array Transducer L761-2
Key Features
  • SKU: EDN-L761
  • Condition: Factory New
  • Warranty: 1 Year
  • Weight: 2.0 lb
  • Made for use with the DUS60 Ultrasound (#DUS60_mainunit)
  • Applications: Small parts, musculoskeletal, and vascular
  • Scanning Angle: 60 mm
  • Cable Length: 2000 mm

  • Learn more:

Contact The Manufacturer
  • MFR: Edan Ships from MFI Medical
  • MPN: L761
  • Phone: (888) 850-4597
$2,394.00 $1,980.00

+Free Shipping*

1+ In Stock

Est. Delivery:
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Shop with Confidence

Free Shipping

+

Free Returns

Payment Options

+

Price Match Guarantee

Sales Tax Exemption

+

Dedicated Account Managers

Description

The Edan Linear Array Transducer L761-2 (#L761) is made for use with the DUS60 Ultrasound (#DUS60_mainunit).

Warranty: 1 Year - Free from Defects in Materials and Workmanship.

Specifications

Edan Linear Array Transducer L761-2 Specifications

  • Applications: Small parts, musculoskeletal, and vascular.
  • Bandwidth:
    • At -20 dB: 3 to 11 MHz.
    • At -6 dB: 5 to 10 MHz.
  • Center Frequency: 7.5 MHz.
  • B-MODE:
    • Fundamental: 6.5 / 7.5 / 8.5.
    • Harmonic: H9.0 / H9.4.
  • PW-MODE - Display Frequency: 5.5 / 6.5 MHz.
  • Scanning Angle: 60 mm.
  • Scanning Depth: 29 to 117 mm.
  • Cable Length: 2000 mm.
  • Previous MPN: 12.01.210692.

Frequently asked questions

What ultrasound system is the Edan L761-2 transducer compatible with?

The Edan L761-2 linear array transducer is specifically designed for use with the Edan DUS 60 Digital Ultrasonic Diagnostic Imaging System.

What applications is the Edan L761-2 transducer suitable for?

The Edan L761-2 transducer is suitable for imaging:

  • Small parts
  • Musculoskeletal structures
  • Vascular systems
  • Superficial tissues
What is the frequency bandwidth of the Edan L761-2 transducer?

The Edan L761-2 transducer has a broad bandwidth of 5.0 to 10.0 MHz.

What is the L761-2 transducer's scanning footprint?

The scanning footprint (or scanning length) of the Edan Linear Array Transducer L761-2 is 60 mm.

This transducer uses an 80-element array across this length to provide detailed, high-resolution acoustic data for small parts, musculoskeletal, and vascular applications.

What are the available fundamental frequencies supported by the Edan L761-2?

The Edan L761-2 supports fundamental frequencies of 6.5 MHz, 7.5 MHz, and 8.5 MHz.

Does the transducer support harmonic imaging?

Yes, the Edan Linear Array Transducer L761-2 supports harmonic imaging at frequencies of 9.0 MHz and 9.4 MHz.

What is the scanning depth range of the Edan L761-2 transducer?

The scanning depth range for the Edan L761-2 transducer is 29 to 117 mm.

Is the Edan L761-2 transducer compatible with needle guides for guided procedures?

Yes, the Edan L761-2 transducer is compatible with the BGK-LA70 Needle Guide Bracket (sold separately).

How many elements does the Edan L761-2 transducer have?

The Edan L761-2 transducer features 80 elements.

Is the transducer factory new?

Yes, the Edan Linear Array Transducer L761-2 is a Factory New product, ensuring it is in pristine, unused condition directly from the manufacturer.
