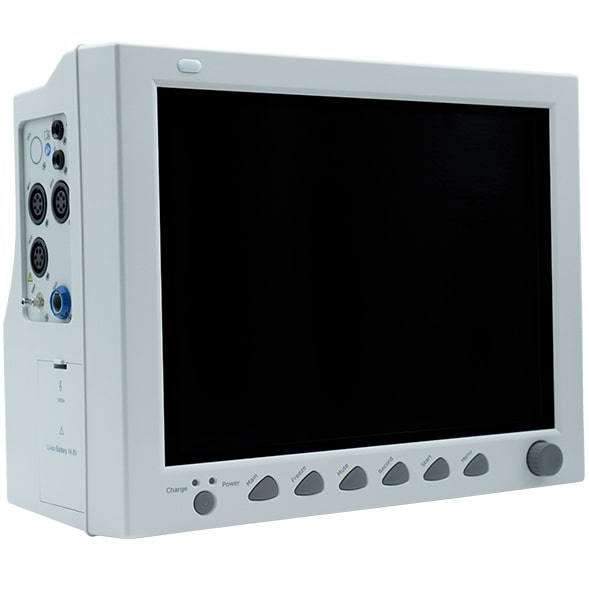

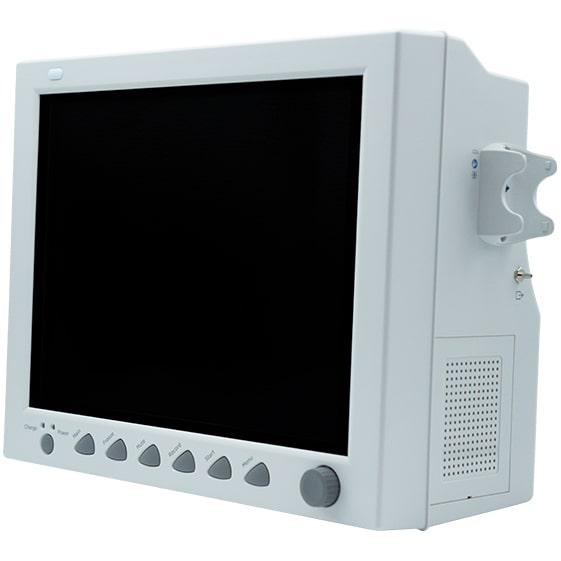

Edan iM8 Patient Monitor

The Edan iM8 Patient Monitor is designed for comprehensive patient assessment, providing the following essential parameters as standard:

• ECG: 3-lead or 5-lead Electrocardiogram, featuring Pacemaker detection and S-T Analysis.
• Respiration (Resp), Heart Rate (HR), and Pulse Rate (PR).
• NIBP: Non-Invasive Blood Pressure (NIBP), which has undergone clinical validation.
• SpO₂: Edan’s advanced SpO₂ module, utilizing dual-mode anti-interference pulse oximetry.
• Temperature: Dual-channel temperature monitoring (2-Temp).

Additionally, the monitor incorporates the unique iSEAP algorithm, specifically optimized for superior performance in patients with arrhythmia and high blood pressure.

Optional Monitoring Capabilities

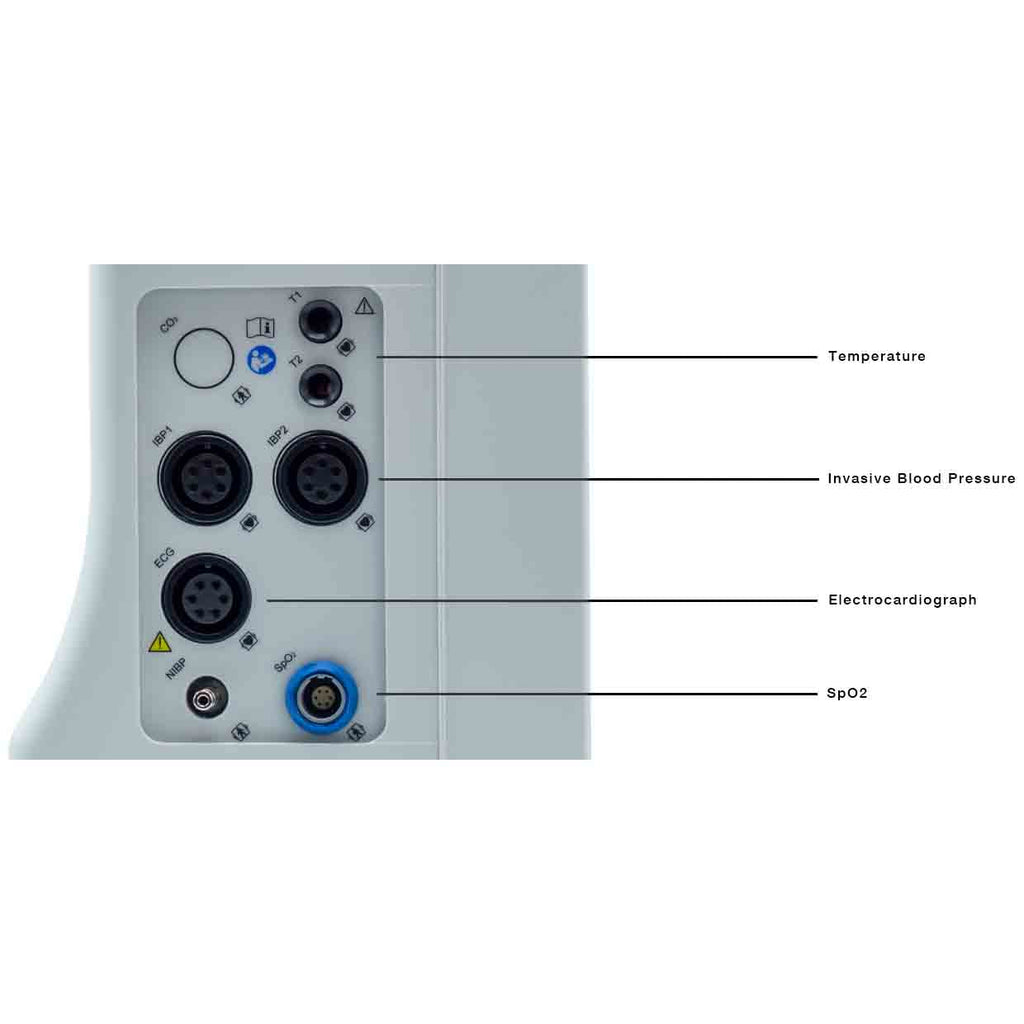

For advanced critical care needs, the unit includes open ports to accommodate optional monitoring modules:

• 2-IBP: Two channels of Invasive Blood Pressure.
• CO₂: Respironics Capnography, available in mainstream or Edan Sidestream G2 configurations.

Yes, the Edan iM8 Patient Monitor is highly versatile, featuring open ports that allow for the integration of several advanced monitoring parameters and useful configuration capabilities beyond the standard vital signs.

Optional Monitoring Parameters:

• 2-IBP (Invasive Blood Pressure): Allows for the monitoring of two channels for precise, real-time invasive blood pressure.
• CO₂ Monitoring (Capnography): The monitor supports Respironics CO₂ modules, available in both mainstream and sidestream configurations (including the OEM Edan Sidestream G2 CO₂ Module option).

Optional Configuration Features:
The iM8 can also be configured with additional features to enhance workflow and documentation:

• Internal Thermal Printer: Provides the convenience of generating immediate hard copies of real-time waveforms and trend data.
• Advanced Connectivity: Optional LAN/Wi-Fi capability facilitates bi-directional communication with the MFM-CMS Central Monitoring Station for centralized data oversight.

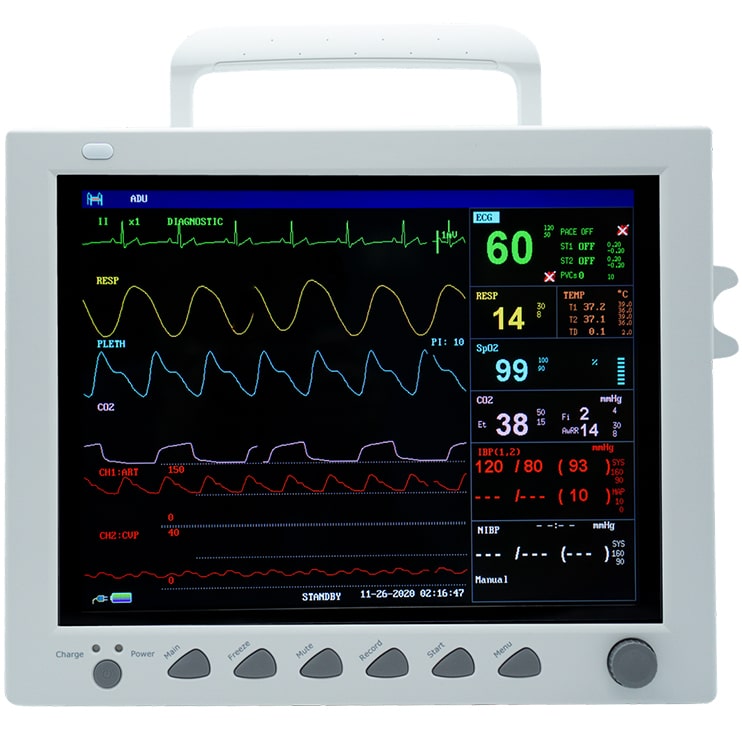

Yes, the Edan iM8 Patient Monitor is equipped with a large, high-resolution 12.1-inch color TFT LCD display.

This robust display technology is a crucial feature in critical care, designed to ensure:

• Clear Visualization: Waveforms and critical numerical data are presented with exceptional clarity.
• Optimal Interpretation: It supports accurate and fast data reading, which is essential for performance in demanding clinical environments like the ICU and Emergency Room.

Yes, the Edan iM8 Patient Monitor is specifically designed for reliable, comprehensive patient monitoring in critical care settings, including the Intensive Care Unit (ICU) and the Emergency Room (ER). Its suitability is based on its advanced features and robust safety protections:

• Critical Monitoring Parameters: It tracks essential vitals including 3/5-lead ECG, Respiration, NIBP, 2-Temp, Pulse Rate, Heart Rate, and Edan SpO${2}$. Optional ports are available for 2-IBP and CO${2}$ (Respironics mainstream or sidestream).
• Advanced Safety and Analysis: The monitor is built with robust protection against defibrillation and electrosurgical interference, ensuring accuracy during high-intensity procedures. It also supports pacemaker detection and S-T Analysis.
• Optimized Performance: It utilizes the proprietary iSEAP algorithm optimized for improved monitoring and analysis of patients with arrhythmia and high blood pressure.
• Data Visibility and Review: Patient data is clearly presented on a large, high-resolution 12.1-inch color TFT LCD. Clinicians can review up to 120 hours of graphic and tabular trends and 120 seconds of full-disclosure waveforms.

Yes, the Edan iM8 Patient Monitor includes several advanced features designed to ensure patient safety and diagnostic accuracy:

• Comprehensive Monitoring: Standard parameters include 3/5-lead ECG, Respiration, NIBP, 2-Temp, Pulse Rate, Heart Rate, and Edan SpO$_{2}$.
• Interference Protection: Electrosurgical interference proof and defibrillation protection ensure reliable readings.
• Advanced Algorithm: The iSEAP algorithm is optimized for monitoring arrhythmia and high blood pressure patients.
• ECG Features: Pacemaker detection and S-T Analysis are included.
• SpO2 Module: Advanced module with performance equivalent to industry leaders, featuring dual-mode anti-interference pulse oximetry.
• NIBP Validation: The NIBP measurement process has passed clinical validation.
• Neonatal Function: OxyCRG is available for neonates.
• Alarm System: A customized alarm setting is available.

Yes, the Edan iM8 Patient Monitor features a specialized, proprietary algorithm to enhance monitoring accuracy in critical situations. The device incorporates the unique iSEAP algorithm, which is specifically optimized for monitoring patients with arrhythmia and high blood pressure conditions, ensuring more reliable and accurate measurements.

Yes, the Edan iM8 Patient Monitor is designed with a large storage capacity and robust data review features vital for continuous clinical oversight.

Key data storage and review capabilities include:

• Long-Term Trend Data: Stores up to 120 hours of graphic and tabular trends for all monitored parameters, enabling long-term patient history review.
• Full-Disclosure Waveforms: Provides 120 seconds of full-disclosure waveform review, crucial for detailed analysis of acute events.
• Neonatal Support: Includes OxyCRG (Oxycardiorespirogram) functionality for neonates.

Data Management and Connectivity

For connectivity, the iM8 supports bi-directional communication with the MFM-CMS Central Monitoring Station for centralized oversight.

Data can be exported via encrypted USB. Please note that viewing this archived data on a computer requires the optional PatientCare Viewer software. Additionally, the monitor includes VGA output and can be configured with an optional thermal printer for immediate hard-copy results.

Yes, the Edan iM8 Patient Monitor is engineered for integration with clinical networks and dedicated central monitoring stations.

• Central Monitoring Integration: It supports bi-directional communication with the MFM-CMS Central Monitoring Station, enabling seamless data exchange and centralized oversight of patient data.
• Connectivity: The monitor includes a standard VGA output and a Nurse Call function, with optional LAN/Wi-Fi connections available for flexible network integration.
• Data Review: The device stores 120 hours of graphic and tabular trends for all parameters, alongside 120 seconds of full-disclosure waveform review.

Note: For data security, patient data saved to USB is encrypted and requires the proprietary CMS/CMS-Lite software for viewing.

Yes, the Edan iM8 Patient Monitor is shipped patient-ready and includes all essential accessories required for immediate monitoring of its standard parameters (ECG, SpO₂, NIBP, and 2-Temperature).

Included Accessories (Standard Configuration):

• ECG/HR/Respiration: 3-Lead ECG Integrative Cable with Lead Wires (Snap, AHA) and 30x Adult Snap Electrodes.
• SpO₂: Edan Adult Reusable SpO₂ Sensor.
• NIBP: Adult NIBP Cuff (25 to 35 cm) and NIBP Tube with Connector.
• Temperature: Skin Temperature Probe.
• Power & Support: Rechargeable Lithium-Ion Battery (14.8 V, 4200 mAh), Power Cable, Grounding Cable, and User Manual.

Note on Optional CO₂: If you select a configuration that includes the internal Sidestream G2 CO₂ Module, necessary consumables—such as Edan Dewatering Cups, Sampling Cannulas, and Sampling Lines—are also provided with the unit.

Yes, the Edan iM8 Patient Monitor is designed for portability and includes a powerful, rechargeable battery for flexible use across various clinical settings.The included battery specifications are:

• Type: Rechargeable Lithium-Ion Battery
• Specs: 14.8 V, 4200 mAh
