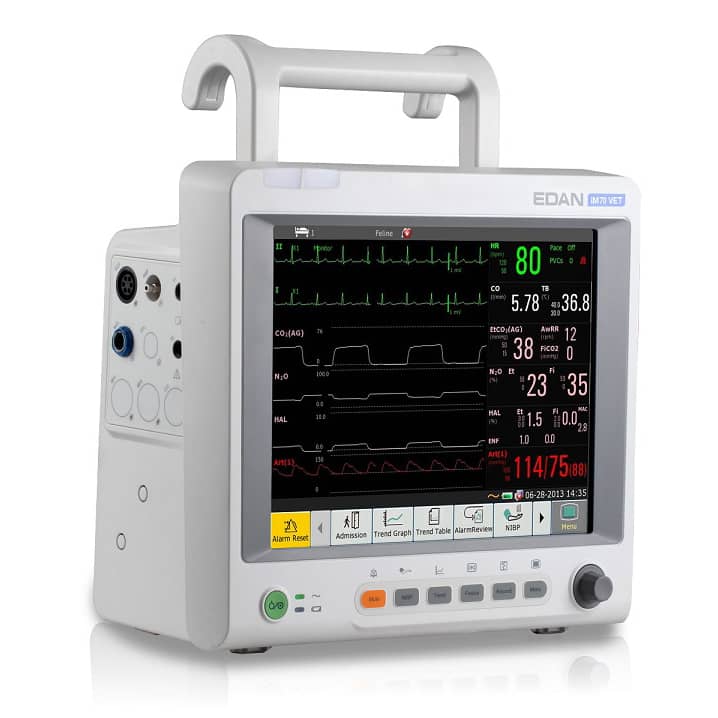

Edan iM70 VET Veterinary Monitor

Edan iM70 VET Veterinary Monitor
Key Features
  • SKU: EDN-iM70-Vet
  • Country of Origin: China
  • Weight: 12.0 lb
  • 12.1 inch high resolution color TFT-LCD screen
  • Full touch screen and customizable shortcuts for simple and intuitive operation
  • Arrhythmia, S-T Analysis, OxyCRG, Large Font Display
  • Suitable for feline, canine and other animals

  • Learn more:

  • Purchasing Restriction: Medical license or prescription required
Contact The Manufacturer
  • MFR: Edan
    Ships from Manufacturer
  • MPN: iM70 Vet
  • Phone: (888) 850-4597
$3,444.25

+Free Shipping*

Select a Configuration

Item Discontinued

%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Shop with Confidence

Free Shipping

+

Free Returns

Payment Options

+

Price Match Guarantee

Sales Tax Exemption

+

Dedicated Account Managers

Description

The Edan iM70 VET Veterinary Monitor is ideally suited for canines, felines, and other animals. Easy to use thanks to a 12.1 inch high resolution color TFT-LCD screen and customizable shortcuts, the iM70 VET makes use of Bi-directional communications with a central monitoring system and optional capnography and anesthesia monitoring to provide the reliable monitoring you've come to expect from Edan.

Warranty: 2 Years.

Note: Data saved on the USB is encrypted. Users cannot simply see the vitals on a computer without the proper software. CMS/CMS-Lite software is required for viewing live to capture that data as a PDF. Alternatively an installed printer can be used to view results. Printers MUST be added to a monitor order at the time of purchase. Otherwise a $195 labor fee plus the cost of the printer will be added. Please select the with printer option at checkout or contact MFI directly before purchasing to make sure your order includes a printer.

Features

Edan iM70 VET Veterinary Monitor Features

  • 3/5-lead ECG, RESP, NIBP, Edan SpO2, 2-TEMP, PR.
  • Arrhythmia, S-T Analysis, OxyCRG, Large Font Display.
  • 120 Seconds Full-disclosure Waveforms Review.
  • 120 Hour Graphic and Tabular Trends Of All Parameters.
  • Bi-directional Communications with Central Monitoring System.
  • 12.1 inch high resolution color TFT-LCD screen.
  • Full touch screen and customizable shortcuts for simple and intuitive operation.
  • Defibrillation and electrosurgical interference protection.
  • Basic parameters monitoring with optional capnography and anesthesia monitoring available.
  • Suitable for feline, canine and other animals.
  • Customized alarm setting.

Configurations

Edan iM70 VET Veterinary Monitor Configurations

  • #iM70 Vet: 3/5-lead ECG, RESP, NIBP, Edan SpO2, 2-TEMP, PR.
  • #iM70 Vet-G2: with G2 CO2 - Edan G2 CO2, Respironics CO2, touch screen, thermal recorder, Suntech NIBP.

Literature

Edan iM70 VET Veterinary Monitor Literature

Edan iM60 & iM70 VET Veterinary Monitor Brochure

Frequently asked questions

Is the monitor suitable for felines and canines?

Yes, the Edan iM70 VET Veterinary Monitor is specifically engineered for professional veterinary environments. It is suitable for monitoring vital signs in canines, felines, and other animals.

Does it monitor all essential vital signs?

Yes, the Edan iM70 VET is a comprehensive patient monitoring system designed specifically for canines, felines, and other animals.

The standard configuration includes a full suite of essential parameters:

  • ECG: 3/5-lead monitoring with advanced Arrhythmia and S-T Analysis.
  • NIBP: Non-Invasive Blood Pressure.
  • SpO2: Edan Oxygen Saturation.
  • RESP: Respiration monitoring.
  • TEMP: Two temperature channels (2-TEMP).
  • PR: Pulse Rate.

Furthermore, the monitor supports extensive data management, including 120 hours of graphic and tabular trends and the review of 120 seconds of full-disclosure waveforms. The system is also scalable, with optional configurations available to add advanced features like capnography (CO2).

Does the iM70 VET include advanced analysis features?

Yes, the Edan iM70 VET Veterinary Monitor includes a comprehensive suite of advanced analysis tools and robust data review capabilities for detailed patient monitoring.

Advanced Analysis Features:

The monitor is equipped with several specialized features to enhance diagnostic workflow:

  • Arrhythmia Detection: Provides detailed analysis and classification of cardiac rhythm abnormalities.
  • S-T Analysis: Essential for monitoring the S-T segment, which can indicate potential myocardial ischemia.
  • OxyCRG (Oxy-Cardio Respiratory Graphic): A specialized visualization tool for evaluating the dynamic relationship between oxygen saturation, heart rate, and respiration.
  • Large Font Display: A dedicated mode that displays critical vital signs in an enlarged font for rapid, distant checking.

Data Review and Trending:

For thorough review and documentation, the device offers extensive data retention:

  • Trends: Stores 120 hours of graphic and tabular trends for all measured parameters.
  • Waveforms: Provides 120 seconds of full-disclosure waveform review.
Does this veterinary monitor support central monitoring?

Yes, this monitor is designed to integrate seamlessly into a central monitoring system. It supports bi-directional communications with the Central Monitoring System (CMS) for efficient data transfer and management.

Is the display a high-resolution touch screen?

Yes, the Edan iM70 VET monitor features a premium display designed for clear, efficient operation:

  • Display Quality: It utilizes a large 12.1-inch high-resolution color TFT-LCD screen for clear visibility of all parameters.
  • Intuitive Interface: The system provides full touch screen functionality and includes customizable shortcuts, ensuring simple and intuitive operation in veterinary settings.
Does the standard configuration include comprehensive monitoring?

Yes, the Edan iM70 VET monitor comes equipped with a comprehensive suite of essential vital signs monitoring parameters in its standard configuration, suitable for canines, felines, and other animals.

Standard Monitoring Parameters

The core standard configuration includes the following essential parameters:

  • 3/5-lead ECG
  • Respiration (RESP)
  • Non-Invasive Blood Pressure (NIBP)
  • Edan SpO2 (Oxygen Saturation)
  • 2-Temperature (2-TEMP)
  • Pulse Rate (PR)

Additionally, the unit features advanced analysis capabilities such as Arrhythmia detection, S-T Segment Analysis, and OxyCRG visualization. The system is also built with integrated protection against defibrillation and electrosurgical interference.

Does it have defibrillation interference protection?

Yes, this monitor is engineered with comprehensive protection suitable for surgical environments. It features safeguards against both defibrillation and electrosurgical interference.

Does this monitor provide extensive data review?

Yes, the Edan iM70 VET Veterinary Monitor provides robust capabilities for reviewing patient history and detailed physiological measurements.

Key data review features include:

  • Long-Term Trending: Stores 120 hours of graphic and tabular trends across all monitored parameters, ideal for observing changes over time.
  • Waveform Analysis: Offers 120 seconds of full-disclosure waveform review, allowing for detailed, beat-by-beat examination of events.
  • Advanced Tools: Includes specialized analysis like Arrhythmia detection, S-T Analysis, and OxyCRG visualization.

Please note that any data saved via USB is encrypted and requires the proprietary CMS/CMS-Lite software to be viewed or captured as a PDF file. Hard copies can also be obtained if the optional integrated printer was purchased with the unit.

Does it have customizable alarm settings?

The Edan iM70 VET Veterinary Monitor offers customizable alarm settings, allowing users to tailor alerts to specific monitoring needs and thresholds for improved patient care.

Can advanced Capnography or CO2 monitoring be added?

Yes, the Edan iM70 VET Veterinary Monitor supports advanced monitoring capabilities beyond the standard parameters. The primary optional parameter is Capnography (CO2) monitoring.

To include this critical feature for comprehensive respiratory and ventilation assessment, you must select the G2 CO2 configuration. This configuration is bundled with:

  • An Edan G2 CO2 or Respironics CO2 module
  • A thermal recorder
  • Suntech NIBP
