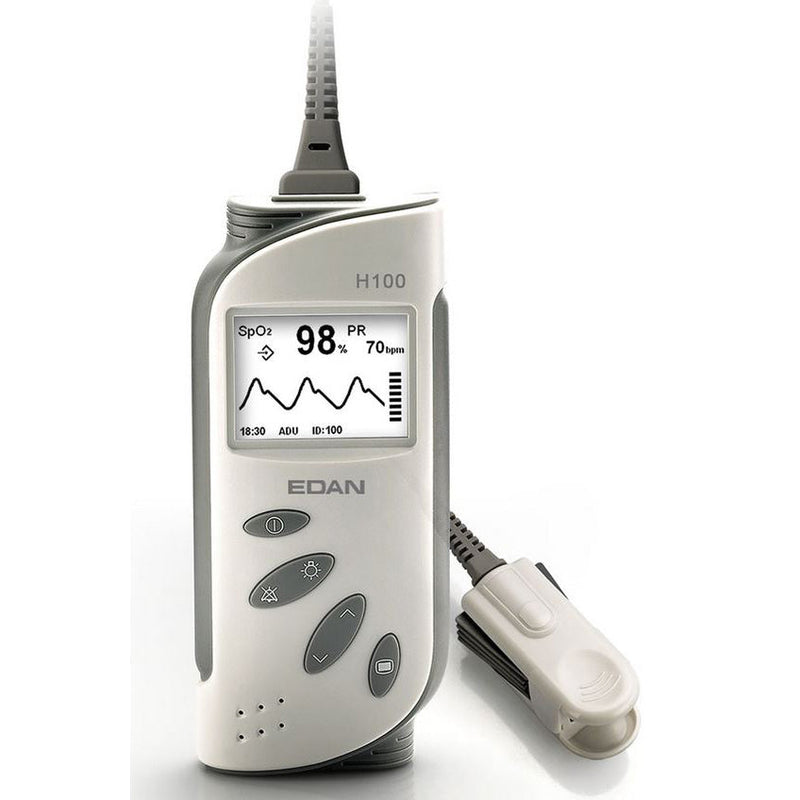

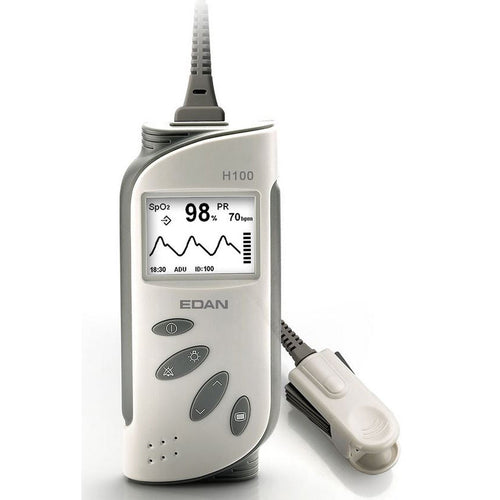

Edan H100B Pulse Oximeter

The Edan H100B Pulse Oximeter includes a choice of Reusable Edan SpO₂ Sensor (recommended standard: Adult), four (4) AA Size Batteries (#01.21.064086), Carrying Case (#11.56.110165), User Manual, and H100B Quick Reference Card.

Warranty: 2 Years - Free From Defects in Materials and Workmanship.

The H100B Pulse Oximeter provides a simple universal tool for patient monitoring - from spot checks to continuous monitoring. It's dedicated to offer reliable, accurate, and sensitive measurement of blood oxygen saturation under even harsh conditions, such as in hospitals, intra-hospital transport, and other hospital grade facilities.

Edan H100B Pulse Oximeter Features

• FDA Approved.
• LCD screen display.
• RTC (Real Time Clock) display.
• Backlight control and automatic power-off function for power saving.
• SpO₂ and Pulse Rate Measurement.
• Display numeric and Waveform of SpO₂ simultaneously.
• Long battery life - up to 48 hours on four "AA" or 36 Hours on Ni-MH rechargeable batteries.
• Powerful data storage capacity.
• Up to 100 IDs and 300 hours data storage capability for continuous monitoring.
• Data can be transferred to PC for storage, review, and printing.
• The latest 10 minutes trend graph and table of SpO₂ and Pulse Rate can be reviewed in the screen.
• Audible and visible alarm capability (adjustable).
• Pulse-tone modulation (Pitch Tone).

Edan H100B Pulse Oximeter Specifications

• Size: 160 mm (L) x 70 mm (W) x 37.6 mm (H).
• Weight: 0.36 lbs (165 g) without batteries.
• Measurement Range:
  • SpO₂: 0 - 100%.
  • Pulse Rate: 25 - 300 bpm.
  • SpO₂ Accuracy:
    • Adult/Pediatric: ± 2% (70 - 100%).
    • Neonate: ± 3% (70 - 100%).
  • Pulse Rate Accuracy:
    • Adult/Pediatric: ± 3 bpm.
    • Neonate: ± 3 bpm.
  • SpO₂ Resolution: 1%.
  • PR Resolution: 1 bpm.
• Display: LCD (128 * 64).
• Environment:
  • Temperature:
    • Working: 5 to 40 °C.
    • Storage/Shipping: -20 to 55 °C.
  • Humidity:
    • Working: 25 ~ 80% (non-condensing).
    • Storage/Shipping: 25 ~ 93% (non-condensing).

Edan H100B Pulse Oximeter Accessories

The H100B Pulse Oximeter is commonly purchased with:

• #02.04.240050: Data Management Kit.
• #03.16.113589: Battery Charger Stand Kit.

Edan H100B Pulse Oximeter Configurations

• #12.01.110492-11: 1 m Neonate (< 6.6 lbs / < 3 kg) Wrap Resuable SpO₂ Sensor (DB9).
• #02.01.210121-11: 1 m Pediatric (22 - 110 lbs / 10 - 50 kg) Silicone Soft-Tip Reusable SpO₂ Sensor (DB9).
• #02.01.210120-11: 1 m Adult (> 66 lbs / > 30 kgs) Reusable SpO₂ Sensor (DB9) (recommended).
• #02.01.210122-11: 1 m Adult (> 66 lbs / > 30 kg) Silicone Soft-Tip Reusable SpO₂ Sensor (DB9).

Edan H100B Pulse Oximeter Literature

Edan H100B Handheld Pulse Oximeter Brochure

Edan H100B Pulse Oximeter User Manual
