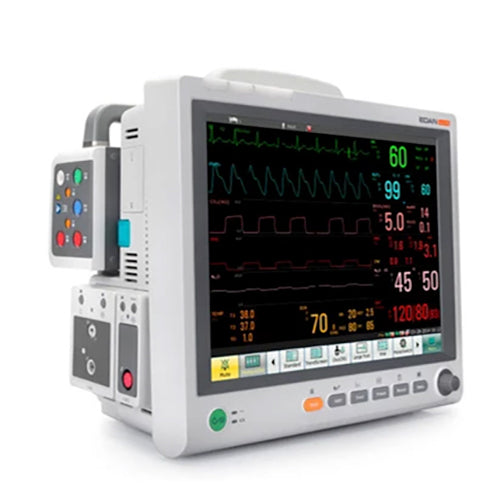

Edan elite Series V6 Modular Patient Monitor

Edan elite Series V6 Modular Patient Monitor
Key Features
  • SKU: EDN-Elite-V6
  • Condition: Factory New
  • Warranty: 2 Years
  • 3/5-Lead ECG, RESPN, NIBP, SpO2, 2-TEMP, PR
  • Low power consumption model
  • Fan-less design leads to low noise level in critical departments and ensures it doesn't bring in dust
  • HL7 compatible with built-in Wi-Fi capability

  • Learn more:

Contact The Manufacturer
  • MFR: Edan Ships from Manufacturer
  • MPN: Elite V6
  • Phone: (888) 850-4597
$4,968.00 $4,554.00

+ Free Shipping

Est. Delivery:
<p>Earn%20[points_amount]%20when%20completing%20this%20purchase.</p>

Shop with Confidence

Free Shipping

+

Free Returns

Payment Options

+

Price Match

Description

The Edan elite Series V6 Modular Patient Monitor (#Elite V6) includes a power cable (AHA standard), a ground cable, a reference card, and a user manual.

Warranty: 2 Years.

Note: Must purchase XM module or iM20 monitor to have any basic parameters.

Note II: Data saved on the USB is encrypted. Users cannot simply see the vitals on a computer without the proper software. CMS/CMS-Lite software is required for viewing live to capture that data as a PDF. Alternatively an installed printer can be used to view results. Printers MUST be added to a monitor order at the time of purchase. Otherwise a $195 labor fee plus the cost of the printer will be added. Please select the with printer option at checkout or contact MFI directly before purchasing to make sure your order includes a printer.

Designed as a full modular monitor, the Edan elite Series V6 Modular Patient Monitor provides comprehensive healthcare solutions and is especially useful for critical divisions. By using it together with the Edan iM20 Transport Patient Monitor you can build a seamless connection from ambulances to in-hospital cares. Thanks to plug-and-play modules and an extensive modular rack, the elite Series Monitor is capable of monitoring a wide range of parameters simultaneously, adapting from critical cares to anesthesia monitoring, with additional monitoring capabilities such as ICG, RM, and BIS. Optional configurations include: Parameter amplifier mainframe, 12 lead ECG, Thermal recorder, CO2 (Sidestream/Mainstream), 8-IBP, C.O., Anesthesia Gas (Sidestream/Mainstream, and two units of battery.

Features

Edan elite Series V6 Modular Patient Monitor Features

  • 3/5-Lead ECG, RESPN, NIBP, SpO2, 2-TEMP, PR.
  • Low power consumption model.
  • Fan-less design leads to low noise level in critical departments and ensures it doesn't bring in dust.
  • HL7 compatible with built-in Wi-Fi capability.
  • Seamlessly connects with any hospital network and interacts with the hospital information system.
  • Works with other hospital facilities like defibrillators, nurse call system, central monitoring system, and more.
  • Customized alarm setting.
  • Waveform color adjustable.
  • Bi-directional communications with central monitoring system.
  • 150-hour graphic and tabular trends of all parameters.
  • 720 seconds full-disclosure waveforms review.
  • Arrhythmia, S-T Analysis, OxyCRG, Large font display.
  • Customizable shortcut menu allows for easy one-touch access to frequently used functions.
  • 15" color TFT LCD 1280*1024 screen enables top-class quality display of waveforms and measurements.
  • Touch screen.
  • I/O:
    • 4-USB.
    • PAM interface.
    • VGA.
    • Analog output/nurse call.
    • Defibrillation synchronization output.
    • Ethernet interface.

Specifications

Edan elite Series V6 Modular Patient Monitor Specifications

  • Systolic Range:
    • Adult: 40 mmHg - 270 mmHg.
    • Pediatric: 40 mmHg - 200 mmHg.
    • Neonatal: 40 mmHg - 135 mmHg.
  • Diastolic Range:
    • Adult: 10 mmHg - 215 mmHg.
    • Pediatric: 10 mmHg - 150 mmHg.
    • Neonatal: 10 mmHg - 110 mmHg.
  • Arterial Mean Pressure Range:
    • Adult: 20 mmHg - 235 mmHg.
    • Pediatric: 20 mmHg - 165 mmHg.
    • Neonatal: 20 mmHg - 110 mmHg.
  • BP Determination Time: 30 s - 45 s.
  • Measurement Range: 0° C - 50° C (32° F - 122° F).
  • Measurement Method: Thermal Resistance.
  • Thermometry Measurement Accuracy: +/- 0.1° C or +/- 0.2° F.
  • Measurement Range: 0 - 100%.
  • SpO2 Measurement Accuracy: ADU/PED +/- 2% (70% - 100% SpO2); NEO +/- 3% (70% - 100% SpO2).
  • Wireless Connection: Optional.
  • WiFi Compliant: Optional.
  • PC Link Option: Yes.
  • Power Type: 100 V - 240 V, 50 Hz/60 Hz, 1.8 A - 0.75 A.
  • Battery Life: 120 min - 90 min.
  • Safe Operating Temperature: +10 ° C - +40° C.
  • Humidity: 10% - 95% (non-condensing).
  • Capacity: 1 hour at 1 second resolution/150 hours at 1 minute resolution; 1200 sets of NIBP measurement data.
  • Range: 40 bpm - 240 bpm.
  • Accuracy: +/- 3 bpm or 3.5% whichever is greater.
  • Patient Populations: Adult, pediatric, and neonatal patients.
  • Workflow: Continuous monitoring.
  • USB Port: Yes.
  • Device Alarms: Adjustable.
  • Nurse Calling: Yes.

Accessories

Edan elite Series V6 Modular Patient Monitor Accessories

The Edan elite Series V6 Modular Patient Monitor is commonly purchased with:

  • V-IBP Module (#22.08.208031).
  • V-SpO2 Module (#22.08.208051).
  • V-C.O. Module (#22.08.208029).
  • V-CO2 Sidestream Module (#22.08.208020).
  • V-CO2 Mainstream Module (#22.08.208021).
  • V-AG Sidestream Module.
  • V-AG Mainstream Module (#22.08.208023).
  • V-AG Sidestream with O2 Module (#22.08.208022).

Literature

Edan elite Series V6 Modular Patient Monitor Literature

Edan elite Series Modular Patient Monitor V6 Brochure

Frequently asked questions

What vital signs can it monitor?

This monitor provides comprehensive monitoring of several vital signs:

  • 3/5-Lead ECG
  • RESPN
  • NIBP
  • SpO2
  • 2-TEMP
  • PR
Does it have a high-quality display?

Yes, the monitor has a 15” color TFT LCD touch screen with a resolution of 1280*1024 for clear display and easy interaction.

Can it connect to hospital networks?

Absolutely. It is HL7 compatible and features built-in Wi-Fi capability and an Ethernet interface, allowing it to connect seamlessly with hospital networks and other medical systems.

Is the operation quiet?

The fan-less design significantly reduces noise levels, making it ideal for critical care environments where quiet is essential. It also helps prevent dust accumulation.

How does the modular design enhance patient monitoring?

The modular design of the Edan elite Series V6 Patient Monitor provides significant flexibility, allowing it to adapt to various monitoring needs, from critical care to anesthesia. It supports a wide array of plug-and-play modules for simultaneous monitoring of numerous parameters, tailoring the system to specific patient requirements.

How much data can be reviewed?

The monitor offers extensive data review capabilities:

  • 150-hour graphic and tabular trends of all parameters.
  • 720 seconds of full-disclosure waveform review.
Does it work for all patient types?

Yes, it supports monitoring for adult, pediatric, and neonatal patient populations.

What essential items are included with the monitor?

The standard package for the Edan elite Series V6 includes the following essential items:

  • Power cable (AHA standard)
  • Ground cable
  • Reference card
  • User manual
Are there customization options for the monitor?

Yes, the Edan elite Series V6 Modular Patient Monitor offers a customizable shortcut menu for quick access to frequently used functions. Additionally, its modular design allows for flexible configuration and expansion with plug-and-play modules, adapting to different monitoring needs such as critical care or anesthesia. You can also adjust device alarms.

What's the temperature range?

The temperature measurement range is from 0° C to 50° C (32° F to 122° F) with an accuracy of +/- 0.1° C or +/- 0.2° F.
