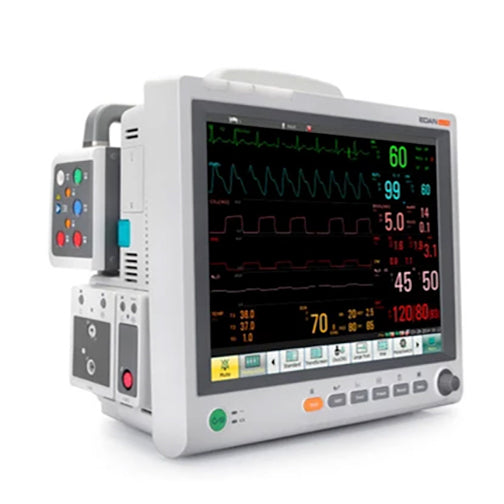

Edan elite Series V5 Modular Patient Monitor

Edan elite Series V5 Modular Patient Monitor
Key Features
  • SKU: EDN-Elite-V5
  • Condition: Factory New
  • Warranty: 2 Years
  • 3/5-Lead ECG, RESPN, NIBP, SpO2, 2-TEMP, PR
  • Low power consumption model
  • Fan-less design leads to low noise level in critical departments and ensures it doesn't bring in dust
  • HL7 compatible with built-in Wi-Fi capability

  • Learn more:

Contact The Manufacturer
  • MFR: Edan Ships from Manufacturer
  • MPN: Elite V5
  • Phone: (888) 850-4597
$4,624.00 $4,134.00

+Free Shipping*

Est. Delivery:
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Shop with Confidence

Free Shipping

+

Free Returns

Payment Options

+

Price Match Guarantee

Sales Tax Exemption

+

Dedicated Account Managers

Description

The Edan elite Series V5 Modular Patient Monitor (#Elite V5) includes a power cable (AHA standard), a ground cable, a reference card, and a user manual.

Warranty: 2 Years.

Note: Must purchase XM module or iM20 monitor to have any basic parameters.

Note II: Data saved on the USB is encrypted. Users cannot simply see the vitals on a computer without the proper software. CMS/CMS-Lite software is required for viewing live to capture that data as a PDF. Alternatively an installed printer can be used to view results. Printers MUST be added to a monitor order at the time of purchase. Otherwise a $195 labor fee plus the cost of the printer will be added. Please select the with printer option at checkout or contact MFI directly before purchasing to make sure your order includes a printer.

Designed as a full modular monitor, the Edan elite Series V5 Modular Patient Monitor provides comprehensive healthcare solutions and is especially useful for critical divisions. By using it together with the Edan iM20 Transport Patient Monitor you can build a seamless connection from ambulances to in-hospital cares. Thanks to plug-and-play modules and an extensive modular rack, the elite Series Monitor is capable of monitoring a wide range of parameters simultaneously, adapting from critical cares to anesthesia monitoring, with additional monitoring capabilities such as ICG, RM, and BIS. Optional configurations include: Parameter amplifier mainframe, 12 lead ECG, Thermal recorder, CO2 (Sidestream/Mainstream), 8-IBP, C.O., Anesthesia Gas (Sidestream/Mainstream, and two units of battery.

Features

Edan elite Series V5 Modular Patient Monitor Features

  • 3/5-Lead ECG, RESPN, NIBP, SpO2, 2-TEMP, PR.
  • Low power consumption model.
  • Fan-less design leads to low noise level in critical departments and ensures it doesn't bring in dust.
  • HL7 compatible with built-in Wi-Fi capability.
  • Seamlessly connects with any hospital network and interacts with the hospital information system.
  • Works with other hospital facilities like defibrillators, nurse call system, central monitoring system, and more.
  • Customized alarm setting.
  • Waveform color adjustable.
  • Bi-directional communications with central monitoring system.
  • 150-hour graphic and tabular trends of all parameters.
  • 720 seconds full-disclosure waveforms review.
  • Arrhythmia, S-T Analysis, OxyCRG, Large font display.
  • Customizable shortcut menu allows for easy one-touch access to frequently used functions.
  • 12.1" color TFT LCD 1280*1024 screen enables top-class quality display of waveforms and measurements.
  • Touch screen.
  • I/O:
    • 4-USB.
    • PAM interface.
    • VGA.
    • Analog output/nurse call.
    • Defibrillation synchronization output.
    • Ethernet interface.

Specifications

Edan elite Series V5 Modular Patient Monitor Specifications

  • Systolic Range:
    • Adult: 40 mmHg - 270 mmHg.
    • Pediatric: 40 mmHg - 200 mmHg.
    • Neonatal: 40 mmHg - 135 mmHg.
  • Diastolic Range:
    • Adult: 10 mmHg - 215 mmHg.
    • Pediatric: 10 mmHg - 150 mmHg.
    • Neonatal: 10 mmHg - 110 mmHg.
  • Arterial Mean Pressure Range:
    • Adult: 20 mmHg - 235 mmHg.
    • Pediatric: 20 mmHg - 165 mmHg.
    • Neonatal: 20 mmHg - 110 mmHg.
  • BP Determination Time: 30 s - 45 s.
  • Measurement Range: 0° C - 50° C (32° F - 122° F).
  • Measurement Method: Thermal Resistance.
  • Thermometry Measurement Accuracy: +/- 0.1° C or +/- 0.2° F.
  • Measurement Range: 0 - 100%.
  • SpO2 Measurement Accuracy: ADU/PED +/- 2% (70% - 100% SpO2); NEO +/- 3% (70% - 100% SpO2).
  • Wireless Connection: Optional.
  • WiFi Compliant: Optional.
  • PC Link Option: Yes.
  • Power Type: 100 V - 240 V, 50 Hz/60 Hz, 1.8 A - 0.75 A.
  • Battery Life: 120 min - 90 min.
  • Safe Operating Temperature: +10 ° C - +40° C.
  • Humidity: 10% - 95% (non-condensing).
  • Capacity: 1 hour at 1 second resolution/150 hours at 1 minute resolution; 1200 sets of NIBP measurement data.
  • Range: 40 bpm - 240 bpm.
  • Accuracy: +/- 3 bpm or 3.5% whichever is greater.
  • Patient Populations: Adult, pediatric, and neonatal patients.
  • Workflow: Continuous monitoring.
  • USB Port: Yes.
  • Device Alarms: Adjustable.
  • Nurse Calling: Yes.

Accessories

Edan elite Series V5 Modular Patient Monitor Accessories

The Edan elite Series V5 Modular Patient Monitor is commonly purchased with:

  • V-IBP Module (#22.08.208031).
  • V-SpO2 Module (#22.08.208051).
  • V-C.O. Module (#22.08.208029).
  • V-CO2 Sidestream Module (#22.08.208020).
  • V-CO2 Mainstream Module (#22.08.208021).
  • V-AG Sidestream Module.
  • V-AG Mainstream Module (#22.08.208023).
  • V-AG Sidestream with O2 Module (#22.08.208022).

Literature

Edan elite Series V5 Modular Patient Monitor Literature

Edan elite Series Modular Patient Monitor V5 Brochure

Frequently asked questions

Is the monitor suitable for critical divisions?

Yes, the Edan elite Series V5 Modular Patient Monitor is specifically engineered for high-performance use in demanding clinical settings. It is ideal for critical divisions, operating rooms, and anesthesia monitoring settings.

Its key functional applications include:

  • Modularity and Scalability: The plug-and-play modular system allows it to adapt from standard critical care monitoring to advanced anesthesia surveillance, accommodating optional parameters like ICG, RM, and BIS.
  • Continuous Care: It is designed for continuous monitoring and features seamless integration capabilities with the Edan iM20 Transport Patient Monitor.
  • Quiet Environment: The fan-less design ensures low operational noise, making it suitable for sensitive critical care areas.
Is the patient monitor fully modular?

Yes, the Edan Elite Series V5 is explicitly designed as a full modular patient monitor, providing exceptional flexibility and scalability for high-acuity clinical environments such as critical care and anesthesia.

The modular design ensures you can configure the monitor precisely to your needs:

  • Plug-and-Play System: It utilizes easily integrated plug-and-play modules and an extensive rack to monitor a wide array of parameters simultaneously.
  • Extensive Customization: The modular structure allows for the addition of advanced parameters, including ICG, RM, and BIS, as well as optional configurations like CO2 (Sidestream/Mainstream), 8-IBP, and Anesthesia Gas.
  • Adaptability: Monitoring capabilities seamlessly adapt from standard vital signs monitoring to highly specialized surveillance.

Mandatory Purchase Note: To enable the core monitoring parameters (3/5-Lead ECG, RESPN, NIBP, SpO2, 2-TEMP, PR), you must purchase either an XM module or the Edan iM20 Transport Patient Monitor alongside the Elite V5 unit.

Is the network integration seamless?

Yes, the Edan Elite Series V5 is designed for seamless integration into hospital networks and clinical workflows, supporting essential communication protocols.

Key connectivity features include:

  • Hospital System Integration (HL7): The monitor is fully HL7 compatible, enabling efficient data exchange and bi-directional communication with central monitoring systems (CMS) and Hospital Information Systems (HIS).
  • Wired Connection: A standard Ethernet interface is built-in for secure, stable network access.
  • Wireless Option: Wi-Fi capability is available as an optional feature for greater flexibility.
  • I/O Ports: It provides comprehensive peripheral support, including four USB ports, VGA output, analog output/nurse call, and defibrillation synchronization output.
What are the core monitoring parameters?

The Edan Elite Series V5 is designed for simultaneous, comprehensive monitoring of several core parameters. Note that the system requires the purchase of the XM module or iM20 monitor for base functionality.

The standard core parameters included are:

  • 3/5-Lead ECG
  • RESPN (Respiration)
  • NIBP (Non-Invasive Blood Pressure)
  • SpO2 (Peripheral Oxygen Saturation)
  • 2-TEMP (Dual Temperature)
  • PR (Pulse Rate)

Due to its full modular design, the monitor can be expanded using plug-and-play modules to include optional monitoring capabilities such as ICG, RM, BIS, CO2, 8-IBP, and Anesthesia Gas.

What is the display type and size of the Edan elite Series V5 Modular Patient Monitor?

The Edan elite Series V5 Modular Patient Monitor has a 12.1” color TFT LCD touch screen with a resolution of 1280*1024, ensuring clear visibility of waveforms and measurements.

What connectivity ports are included?

The Edan Elite V5 Monitor is equipped with robust built-in connectivity options to ensure comprehensive integration:

  • Ethernet interface for wired network connection.
  • 4 USB ports for connecting external peripheral devices.
  • VGA port for connecting to an external display.
  • PAM interface for additional parameter monitoring capabilities.
  • Analog output/nurse call for data output and integration with nurse call systems.
  • Defibrillation synchronization output for coordinated use with defibrillators.

Furthermore, the monitor is HL7 compatible for seamless integration with hospital information systems. Note that the Wi-Fi capability is optional and must be added to the configuration if wireless connectivity is required.

What is the battery life of the V5 patient monitor?

The internal battery life of the Elite V5 Patient Monitor ranges from 90 minutes to 120 minutes.

It is important to note that battery functionality is optional and requires the purchase of two separate battery units for operation.

Does the Edan elite Series V5 Modular Patient Monitor have adjustable alarms and nurse call functionality?

Yes, the device features adjustable alarms to alert healthcare providers to critical changes in patient vital signs. It also supports nurse calling functionality for immediate assistance.

For which patient populations is the Edan elite Series V5 Modular Patient Monitor suitable?

The Edan elite Series V5 Modular Patient Monitor is designed for use with adult, pediatric, and neonatal patients, making it versatile for different clinical settings.

What is included with the Edan elite Series V5 Modular Patient Monitor?

The base package for the Edan Elite Series V5 Modular Patient Monitor includes the following essential components:

  • Power cable (AHA standard)
  • Ground cable
  • Reference card
  • User manual

Please note: To activate any basic parameters (like ECG, NIBP, and SpO2), you must separately purchase an XM module or the Edan iM20 Transport Patient Monitor.
