Edan Central Nursing Station

Edan Central Nursing Station
Edan Central Nursing Station - Compatible Monitors
Edan Central Nursing Station
Edan Central Nursing Station - Compatible Monitors
Key Features
  • SKU: EDN-MFM-CNS
  • Condition: Factory New
  • Warranty: 2 Years

  • Learn more:

  • Purchasing Restriction: Medical license or prescription required
Contact The Manufacturer
  • MFR: Edan Ships from Manufacturer
  • MPN: MFM-CNS
  • Phone: (888) 850-4597
$13,793.00 $6,000.00

+ Free Shipping

Est. Delivery:
<p>Earn%20[points_amount]%20when%20completing%20this%20purchase.</p>

Shop with Confidence

Free Shipping

+

Free Returns

Payment Options

+

Price Match

Description

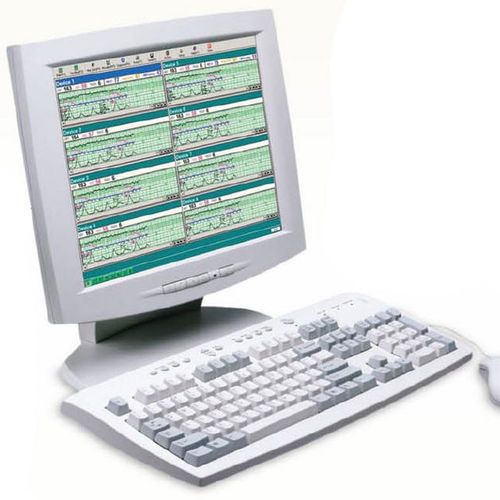

The Edan Central Nursing Station (#MFM-CNS) is an exhaustive central monitoring solution for up to 128 bedside fetal/maternal monitors. Windows 10 compatible, this top-of-the-line station provides seamless monitoring management from transportation to hospitalization or from intensive care to post anesthesia care making it easier than ever for you to access well-organized information.

Warranty: 2 Years.

Note: Compatible with the F2, F6, F6 Express, and F9 Express.

Features

Edan Central Nursing Station Features

  • Connection of up to 128 bedside fetal/maternal monitors.
  • Bi-directional communication of patient ID and alarming setup.
  • Time synchronization.
  • Built-in antepartum CTG & NICHD analysis function.
  • Large capacity of storage up to 100,000 records.
  • Up to 200 groups of NIBP data for each record.
  • Review of events, CTG waveforms, trends, and NIBP data.
  • Remote monitoring from different locations via CNS Client.
  • Supports for 32 people to be logged in at the same time.
  • User authority allocation to protect patient information.
  • Annotations and comments.
  • Built-in partogram for labor storage management.
  • Export PDF and JPG format report.
  • JPG format signatures on the report.
  • User-defined hospital information on the report.
  • American/international printing format on A4 paper by external printer.
  • Wired and wireless central monitoring system solution.
  • HL7 support.
  • Windows 10 compatibility.

Specifications

Edan Central Nursing Station Specifications

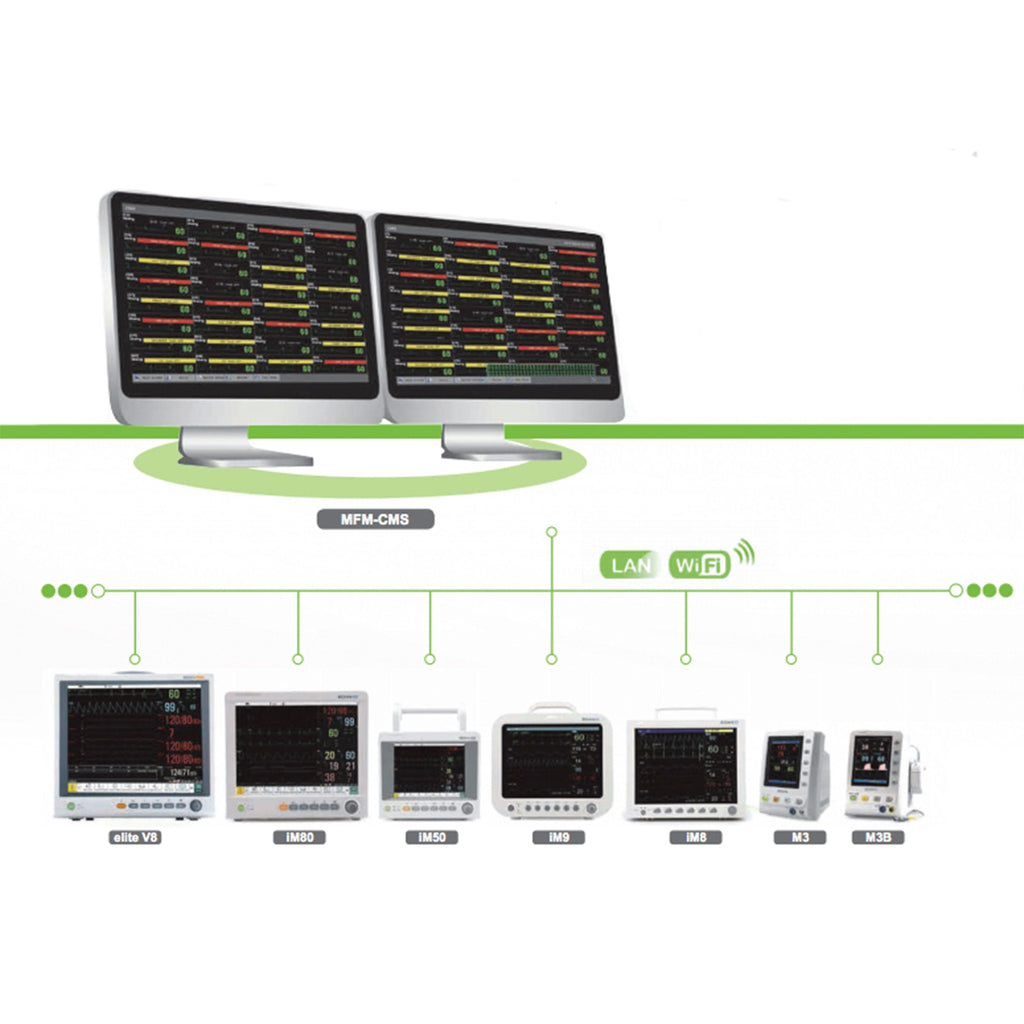

  • Maximum Amount of Networked Monitors: Up to 128 bedside monitors. Supports 32 bedside monitors in 1 display and 64 bedside monitors in 2 displays.
  • Compatible Monitors: elite V8, iM80, iM50, iM9, iM9A, iM8, iM8A, iM8B, M80, M50, M9, M9A, M8, M8A, M8B, M3, M3B.
  • Alarm Categories: Physiological/Technical.
  • 3 Levels of Alarm: High/Medium/Low level.
  • Indicating Method: Audible/Visual.
  • Print:
    • Patient Information: Waveform Review.
    • Alarm Wave: NIBP Review.
    • Alarm Table: Drug Calculation, Titration Table.
    • Trend Graph: PDF File.
    • Trend Table.
  • PC Workstation:
    • CPU: Intel Core 2 Duo or AMD Turion II M520.
    • Memory: 2 GB or above.
    • Hard Disk: 320 GB or above.
    • USB Ports: 2 at least.
    • Ethernet Card.
  • Display:
    • Resolution: 4:3 / 16:9 (i.e. 1280 x 1024 / 1440 x 900).
    • LCD Display.
  • Ethernet Router:
    • Ethernet Ports: 8 or above.
    • Cascade Supported.
  • Others:
    • Keyboard.
    • Mouse.
    • Speaker.
    • Printer: Supports A4-size printing paper.

Accessories

Edan Central Nursing Station Accessories

The Edan Central Nursing Station is commonly purchased with the:

  • Edan MFM-CNS Ethernet Module Connector -
    • RS485 To Ethernet Module (#04.06.105173).
    • HP50A To Ethernet Module (#02.04.103876).
    • HP50A To Ethernet Module (#02.04.103881).
    • GE120 To Ethernet Module (#02.04.103879).
    • GE120 To Ethernet Module (#02.04.103884).
    • GE170 To Ethernet Module (#02.04.103878).
    • GE170 To Ethernet Module (#02.04.103883).
    • FM800 To Ethernet Module (#02.04.103877).
    • FM800 To Ethernet Module (#02.04.103882).
    • FM20/30 To Ethernet Module (#02.04.103903).
    • FM20/30 To Ethernet Module (#02.04.103904).

Literature

Edan Central Nursing Station Literature

Edan MFM CMS CNS Central Station Software Brochure

Frequently asked questions

Is the central station compatible with Windows 10?

Yes, the Edan Central Nursing Station is fully compatible with the Windows 10 operating system. This ensures seamless integration into modern healthcare IT infrastructures.

Does the Edan Central Nursing Station support HL7 integration?

Yes, the Edan Central Nursing Station provides HL7 support, facilitating integration with existing hospital information systems.

Does it support remote monitoring?

Yes, the Edan Central Nursing Station offers remote monitoring capabilities through the dedicated CNS Client application, allowing staff to access critical patient information from various locations within the facility.

Does the station offer advanced data analysis and review?

Yes, the Edan Central Nursing Station offers extensive data management and advanced analysis capabilities crucial for thorough clinical review. The system is highly capable, storing up to 100,000 records.

Key review functions include:

  • Review of Events
  • Detailed review of CTG waveforms
  • Analysis of patient Trends
  • Comprehensive NIBP data review (The system stores up to 200 groups of NIBP data for each record.)

The station also includes powerful built-in analysis tools:

  • Antepartum CTG & NICHD analysis functions.
  • A built-in partogram for labor storage management.
Does the system feature advanced CTG analysis?

Yes, the Edan Central Nursing Station includes built-in antepartum CTG and NICHD analysis functions.

This feature supports comprehensive fetal monitoring and aids in clinical decision-making by providing integrated analytical capabilities directly within the central monitoring hub.

What is the storage capacity of the Edan Central Nursing Station?

The Edan Central Nursing Station offers a large storage capacity of up to 100,000 records, ensuring detailed data capture and review for comprehensive patient monitoring.

What is the maximum monitor capacity?

The Edan Central Nursing Station offers extensive scalability, capable of monitoring up to 128 bedside fetal/maternal monitors simultaneously.

For effective data display, the system supports:

  • 32 monitors displayed on a single screen.
  • 64 monitors displayed across two screens.

This robust capacity ensures comprehensive, centralized data oversight across large care environments.

What are the alarm categories and levels?

The Edan Central Nursing Station utilizes a comprehensive alarm system, categorized and leveled as follows:

  • Alarm Categories: Physiological and Technical.
  • Alarm Levels: Three distinct priority levels: High, Medium, and Low.

Alarms are indicated via both audible and visual methods.

How does the station ensure robust data security?

The Edan Central Nursing Station implements crucial security measures to protect sensitive patient information:

  • User Authority Allocation: Access to patient records is strictly controlled through user authority allocation, allowing administrators to define specific security permissions based on user roles.
  • Controlled Concurrent Access: The system manages access by limiting concurrent logins to a maximum of 32 users, including those monitoring remotely via the CNS Client.
  • Secure Interoperability: It supports HL7 integration for secure and standardized electronic data exchange with other hospital systems.
Can multiple users log in simultaneously?

Yes, the Edan Central Nursing Station supports up to 32 users logged in at the same time, facilitating collaborative monitoring and data management across the care team.
