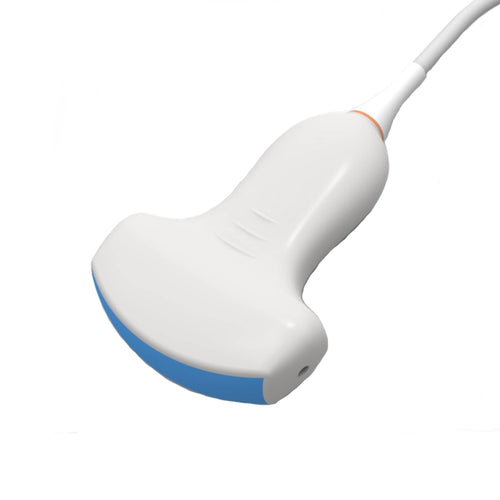

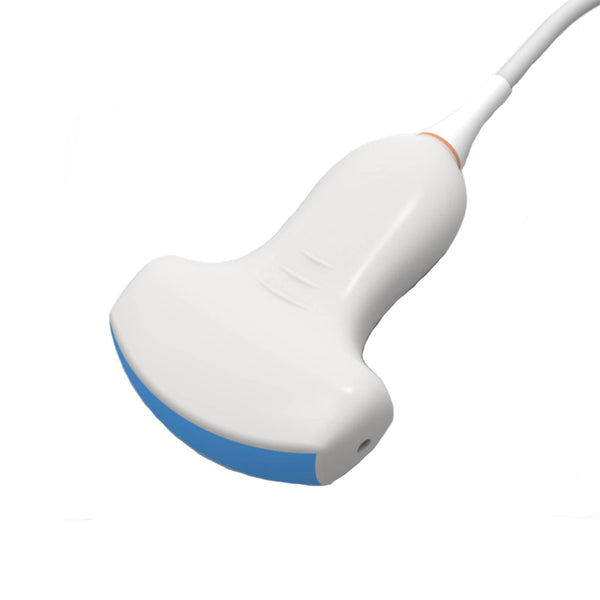

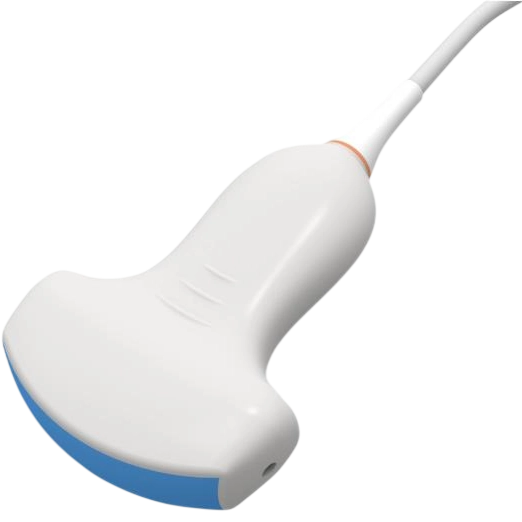

Edan C5-2Q Convex Array Transducer

The Edan C5-2Q Convex Array Transducer is engineered for seamless compatibility with the following Edan Ultrasound Systems:

• Edan AX2
• Edan AX3
• Edan LX9

This compatibility ensures optimal performance across a range of applications, including abdominal, urology, OB, GYN, and MSK imaging.

The Edan C5-2Q Convex Array Transducer is highly versatile and supports a wide range of applications, including:

• Abdominal
• Urology
• OB (Obstetrics)
• Fetal Echo
• Gynecology (GYN)
• Nerve
• MSK (Musculoskeletal)

Yes, the Edan C5-2Q is engineered with multiple selectable fundamental and harmonic frequencies to optimize image quality and depth penetration across diverse clinical applications.

It operates within the following specific ranges:

• Fundamental Frequency Range: 1.5 – 6.5 MHz (-20dB)
• Harmonic Frequency Range: 2 – 5 MHz (-6dB)

This flexibility allows the transducer to deliver high-quality image detail and excellent contrast resolution, even in challenging patient anatomies.

Yes, the Edan C5-2Q Convex Array Transducer is specifically designed to effectively image patients who are typically difficult to image, ensuring reliable diagnostic capabilities even in challenging situations. It provides high-quality image detail and excellent contrast resolution.

The Edan C5-2Q Convex Array Transducer offers a wide imaging depth range from 40 mm up to 300 mm.

This broad capability is a key selling point, enabling detailed visualization across various structures and supporting applications like abdominal, OB, and urology imaging. It is specifically engineered for deep penetration, making it effective even for difficult-to-image patients.

Yes, the Edan C5-2Q Convex Array Transducer is equipped with a 128-element array design.

This high element count is essential for its performance characteristics, enabling the transducer to:

• Deliver high-quality image detail and ** excellent contrast resolution**.
• Support a wide range of versatile clinical applications, including abdominal, urology, OB, fetal echo, GYN, nerve, and MSK imaging.
• Maintain superior diagnostic capabilities and penetration, even for difficult-to-image patients.

The Edan C5-2Q Convex Array Transducer package includes the main unit only. This factory new convex array transducer is designed for seamless integration with the Edan AX2, AX3, and LX9 Ultrasound Systems.

If you are looking for procedural accessories, please note that the Edan U50 Prime Needle Guide Bracket (MPN: #02.01.211006-10) is a commonly purchased accessory frequently bought alongside this transducer (sold separately).

Yes, the Edan C5-2Q is designed with frequency flexibility. It utilizes multiple fundamental and harmonic frequencies that are selectable by the clinician, allowing you to optimize data transmission and reception to achieve the clearest possible results for your specific diagnostic needs.

The transducer features a 60 mm probe width. This design is engineered to provide a balanced footprint that is ideal for the various clinical applications it supports, including abdominal, urological, and OB/GYN examinations, while ensuring comfortable handling during extended diagnostic sessions.

The C5-2Q is specifically engineered with high-performance penetration capabilities. It is designed to maintain high-quality image detail and excellent contrast resolution, which is essential for successfully imaging patients that are typically considered difficult to scan.
