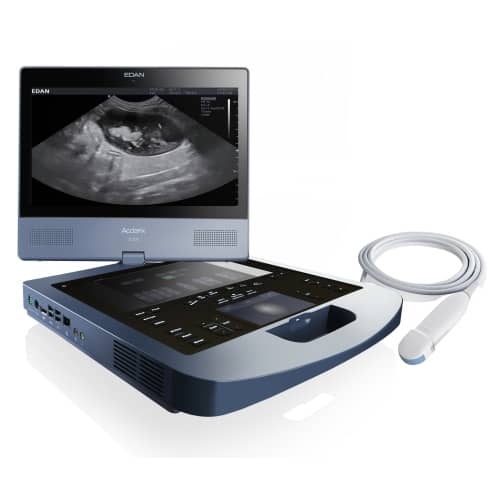

Edan AX8 Ultrasound Machine

Edan AX8 Ultrasound Machine
Key Features
  • SKU: EDN-AX8
  • Condition: Factory New
  • Country of Origin: China
  • Warranty: 2 Years
  • Weight: 20.4 lb
  • 15″ HD LCD monitor reinforced with specially engineered glass for improved durability
  • Tilt-and-swivel monitor with 60″ left/right swivel
  • 10″ touch-screen with gesture-control user interface
  • Additional 5″ touch screen houses a virtual trackball

  • Learn more:

Contact The Manufacturer
  • MFR: Edan Ships from Manufacturer
  • MPN: AX8
  • Phone: (888) 850-4597
$23,994.00 $16,995.00

+Free Shipping*

Est. Delivery:
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Shop with Confidence

Free Shipping

+

Free Returns

Payment Options

+

Price Match Guarantee

Sales Tax Exemption

+

Dedicated Account Managers

Description

The Edan AX8 Ultrasound Machine (#AX8) features one transducer port and does NOT include a transducer. Sporting a sleek footprint, the AX8 is a fully featured device boasting premium performance and advanced imaging technologies. It features dual touch screens and a gesture-control user interface along with a full suite of next-generation transducers that support a wide range of clinical applications. It is also highly portable for added convenience.

Warranty: 2 Years.

Features

Edan AX8 Ultrasound Machine Features

  • 15″ HD LCD monitor reinforced with specially engineered glass for improved durability.
  • Tilt-and-swivel monitor with 60″ left/right swivel.
  • 10″ touch-screen with gesture-control user interface.
  • Additional 5″ touch screen houses a virtual trackball.
  • Fully sealed control panel, with frequently used hard keys, aids in maintaining infection control.
  • Touch-sensor for rapid battery level check in two locations.
  • Removable lithium ion battery provides approximately 75 minutes of typical exam use.
  • Innovative imaging technologies.
  • Intelligent workflow.

Specifications

Edan AX8 Ultrasound Machine Specifications

System Architecture

  • Physical Channels: 128.
  • System Frequency Range: 1-19 MHz (-20 dB).
  • System Dynamic Range: 0-264.
  • Beam Forming: Quad beam.
  • Processor: i7 with quad virtual cores i7.
  • Memory: 16 GB.
  • Hard Drive: 500 GB (Standard) / 120 GB SSD (Optional).
  • Operation System: 64 bit Linux system.

Dimensions and Weight

  • Height: 7.7 cm.
  • Width: 38.8 cm.
  • Depth: 40.7 cm.
  • Weight: 9.25 kg (includes battery and monitor glass).

Electrical Power

  • Voltage: 110-240 VAC.
  • Frequency: 50/60 Hz.

Environmental Operating Requirements

  • Ambient Temperature: 0° to 40° C.
  • Relative Humidity: 15%~95% (no condensation).
  • Atmospheric Pressure: 86 kPa-106 kPa.

Environmental Storage Requirements

  • Ambient Temperature: -20° to 55° C.
  • Relative Humidity: 15%~95% (no condensation).
  • Atmospheric Pressure: 70 kPa-106 kPa.

Literature

Frequently asked questions

What operating system does the Edan AX8 Ultrasound Machine use?

The Edan AX8 Ultrasound Machine operates on a 64-bit Linux system.

What advanced imaging technologies are included?

The Edan AX8 is engineered for premium diagnostic performance by combining a high-performance architecture with an intuitive user interface. Key imaging and workflow technologies include:

  • High-Performance Processing: The system is powered by an i7 processor and 16 GB of memory, utilizing 128 physical channels to support advanced diagnostic imaging.
  • Versatile Frequency Range: It offers a wide system frequency range of 1-19 MHz (-20 dB) for flexible clinical application.
  • Intuitive Gesture Control: The system features a 15-inch HD LCD monitor paired with dual touch screens, including a 5-inch interface with a virtual trackball, allowing for seamless workflow management.
  • Reliable Architecture: Built on a 64-bit Linux operating system, it ensures efficient data processing in various point-of-care settings.
Is the Edan AX8 highly portable?

Yes, the Edan AX8 is specifically designed as a high-performance, portable diagnostic system built for mobility across various clinical settings. Its portability is enhanced by the following features:

  • Weight: The unit is lightweight, weighing approximately 9.25 kg (including the battery and monitor glass).
  • Power: It utilizes a removable lithium-ion battery that provides approximately 75 minutes of typical exam use.
  • Design: It features a sleek footprint and includes a handle cutout for easy transport.
Is the 15-inch HD monitor built for durability?

Yes, the Edan AX8 features a 15-inch HD LCD monitor that is reinforced with specially engineered glass for enhanced durability in demanding clinical environments. For optimal viewing flexibility, the monitor also includes a tilt-and-swivel mechanism that provides 60 degrees of left/right swivel.

How long does the battery of the Edan AX8 Ultrasound Machine last?

The Edan AX8 Ultrasound Machine has a removable lithium-ion battery that provides approximately 75 minutes of typical exam use.

What is the frequency range of the Edan AX8 Ultrasound Machine?

The Edan AX8 Ultrasound Machine has a system frequency range of 1-19 MHz (-20 dB).

Is the AX8 powered by a high-performance processor?

Yes, the Edan AX8 Ultrasound Machine is built on a high-performance architecture. It features an i7 processor with quad virtual cores and 16 GB of memory. The system runs on a 64-bit Linux operating system, designed to handle advanced imaging capabilities efficiently.

Does the Edan AX8 Ultrasound Machine come with a transducer?

No, the Edan AX8 Ultrasound Machine does not come with a transducer.

What is the weight of this portable ultrasound machine?

The Edan AX8 Ultrasound Machine weighs 20.4 pounds (approximately 9.25 kg), making it a portable and lightweight option for various clinical settings.

Is the design durable and easy to clean?

The Edan AX8 features a fully sealed control panel with hard keys, and the monitor glass is reinforced. This design helps ensure durability and makes the unit easier to clean, which is crucial for infection control in clinical environments.
