- Condition: Factory New
- Warranty: 1 Year
- Transducer transmits and receives ultrasound information

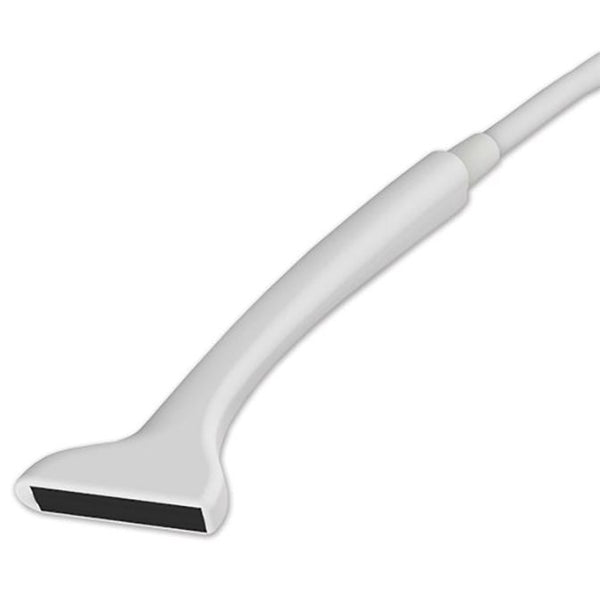

- Sports a hockey-stick style design
- Choose from various, selectable fundamental and harmonic frequencies
- Short footprint makes it perfect for intra-operative and superficial applications like - MSK, nerve block, and vascular access
-
Learn more:
- MFR: Edan Ships from MFI Medical
- MPN: L17-7SQ
- Phone: (888) 850-4597
Frequently asked questions
What ultrasound system is this transducer compatible with?
The Edan AX7 Compact Linear Array Transducer is specifically designed to be compatible with the Edan Acclarix AX7 Ultrasound System.
What are the primary applications of this transducer?
The Edan AX7 Compact Linear Array Transducer is versatile, making it ideal for:
- Musculoskeletal (MSK) imaging
- Nerve block procedures
- Vascular access applications
Its hockey-stick style and short footprint also make it excellent for intra-operative and superficial applications.
What frequency ranges does the transducer support?
The Edan AX7 Compact Linear Array Transducer supports:
- Fundamental Bandwidth: 7 – 14 MHz
- Harmonic Bandwidth: H9 – 17 MHz
This variable frequency selection allows for optimized imaging across various applications.
Does the transducer have a hockey-stick design?
The Edan AX7 transducer features a hockey-stick style design with a short footprint, which is ideal for easy maneuverability during intra-operative and superficial applications.
Is this transducer suitable for superficial applications?
Yes, the Edan AX7 transducer is particularly well-suited for superficial applications such as MSK imaging, nerve blocks, and vascular access due to its short footprint.
What is the model number or MPN of this transducer?
The MPN (Manufacturer Part Number) for the Edan AX7 Compact Linear Array Transducer is L17-7SQ.
What is included with the purchase of this transducer?
The package includes the Edan AX7 Compact Linear Array Transducer main unit.
Does the compact design improve access?
Yes, the Edan AX7 Compact Linear Array Transducer is engineered with a specialized design to enhance access in limited space:
- Unique Design: It features a distinctive hockey-stick style body and a short footprint.
- Benefit: This compact construction is optimized for precise positioning and superior maneuverability during procedures that require close proximity.
- Applications: It is ideal for intra-operative scanning, superficial applications, MSK, nerve blocks, and vascular access procedures.
What is the broad frequency range?
Yes, this transducer supports a broad frequency range, ensuring versatility across various diagnostic applications.
The frequency specifications are:
- Fundamental Bandwidth: 7 – 14 MHz
- Harmonic Bandwidth: 9 – 17 MHz (H9 – 17 MHz)
This range is ideal for superficial procedures, including Musculoskeletal (MSK) assessments, nerve block guidance, vascular access, and intra-operative imaging.
Which ultrasound system is it optimized for?
The Edan AX7 Compact Linear Array Transducer is specifically designed to work seamlessly with the Edan Acclarix AX7 Ultrasound System.
